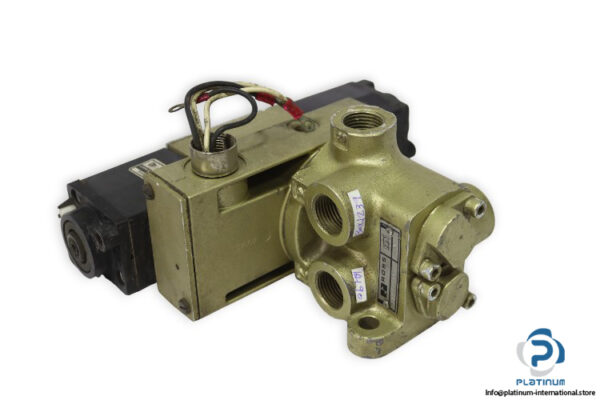

Ross Double Solenoid Pilot Inline Valve D2776B4013
The Ross D2776B4013 is a high-performance double solenoid pilot inline valve designed for industrial pneumatic applications. Part of the Series 27, it offers precise 4/2-way functionality with robust electrical actuation, ensuring reliable operation in demanding environments. With its G1/2 pneumatic connection and wide pressure range, this valve is well-suited for use with filtered air systems.
- Manufacturer: Ross
- Type: Double Solenoid Pilot Inline Valve

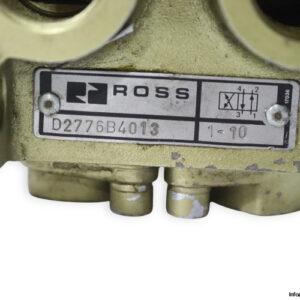

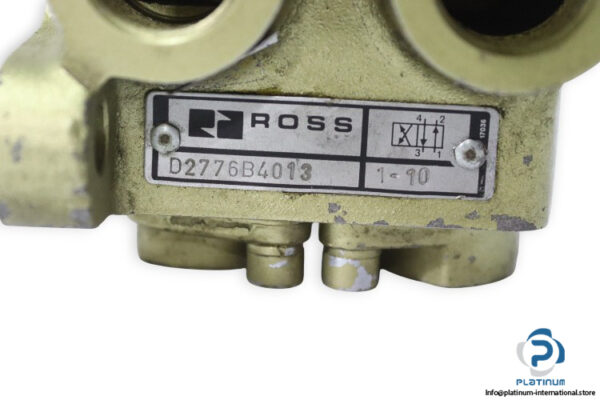

- Model: D2776B4013

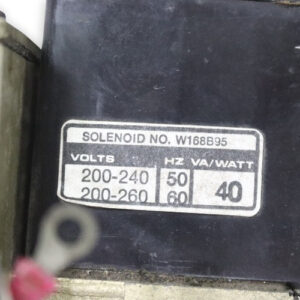

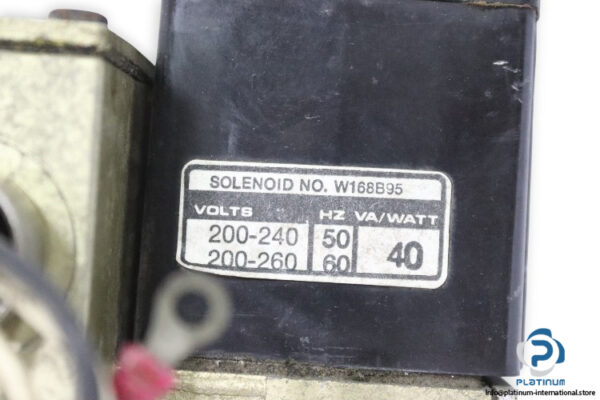

- Coil No.: W168B95
- Series: 27
Technical Information
- Flow Media: Filtered air
- Type of Actuation: Electrically
- Operating Pressure: 1 to 10 bar
- Function: 4/2-Way
- Coil Voltage: 200/240 V AC, 50 Hz | 200/260 V AC, 60 Hz
- Power: 40 W
- Pneumatic Connection: G1/2
- Ambient Temperature: 4 to 50 °C
- Media Temperature: 4 to 80 °C
