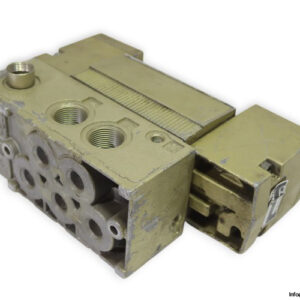

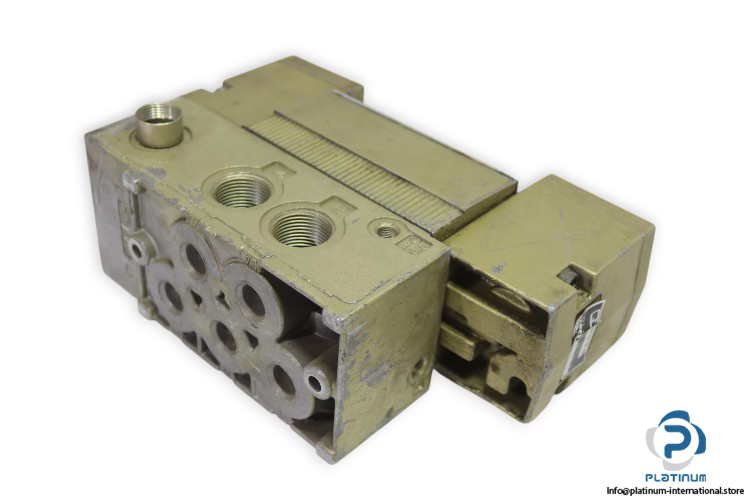

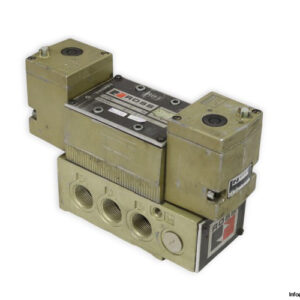

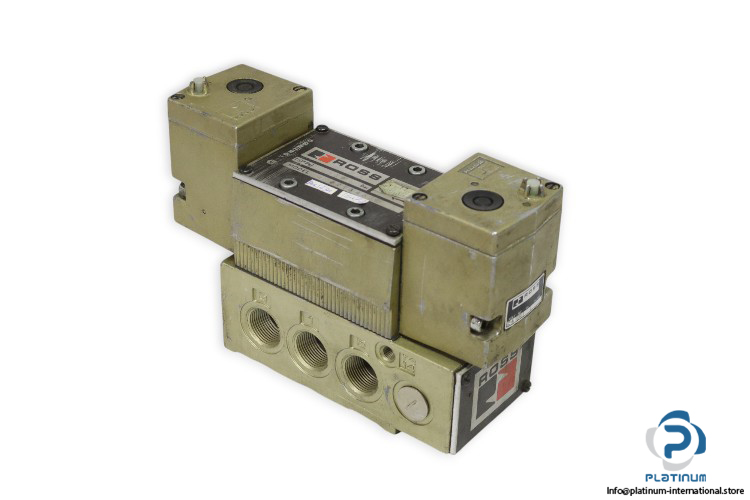

Ross Double Solenoid Control Valve W7077A4331 (Series W70)

The Ross W7077A4331 from the W70 series is a high-performance double solenoid control valve designed for reliable operation in industrial pneumatic systems. With a 5/3-way configuration, normally closed default position, and robust cast aluminum body, this valve ensures safe and efficient control of filtered air in demanding environments. Its stainless steel internals and Buna-N seals provide durability and extended service life.

• Manufacturer: Ross
• Type: Double Solenoid Control Valve

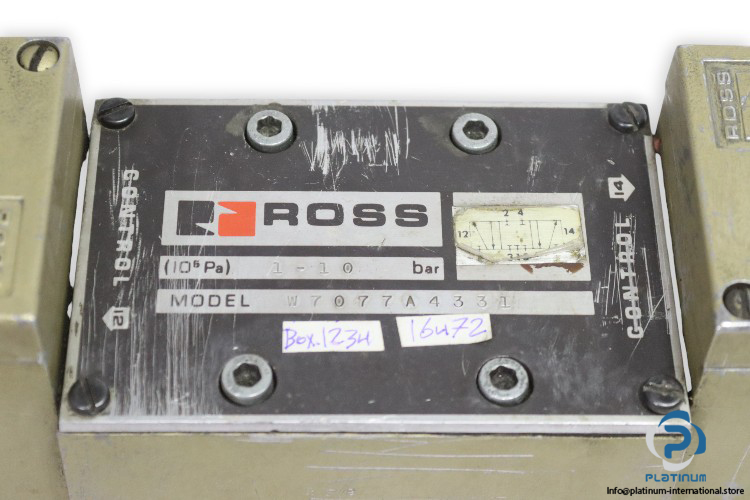

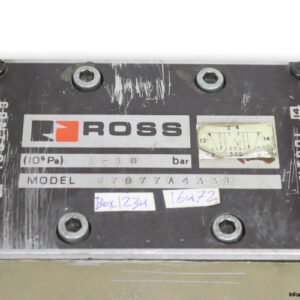

• Model: W7077A4331
• Series: W70

Technical Information

• Flow Media: Filtered air
• Type of Actuation: Electrically
• Function: 5/3-way, Double Solenoid
• Default Position: Normally Closed
• Operating Pressure: 1 to 10 bar

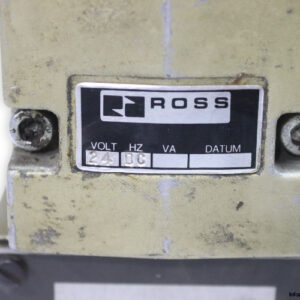

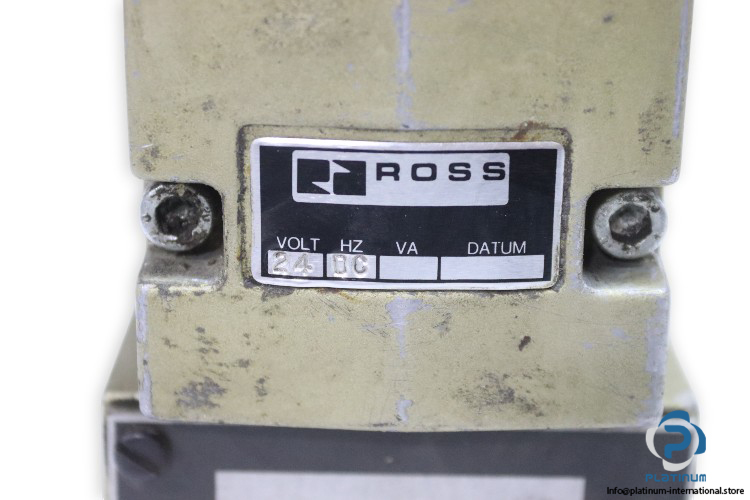

• Voltage: 24 V DC
• Port Size: G3/4
• Ambient Temperature: 4 to 50°C
• Media Temperature: 4 to 80°C
• Valve Body Material: Cast Aluminum
• Poppet/Spool Material: Stainless Steel
• Seal Material: Buna-N
• Dimensions: 99 x 306 x 101 mm
