Description

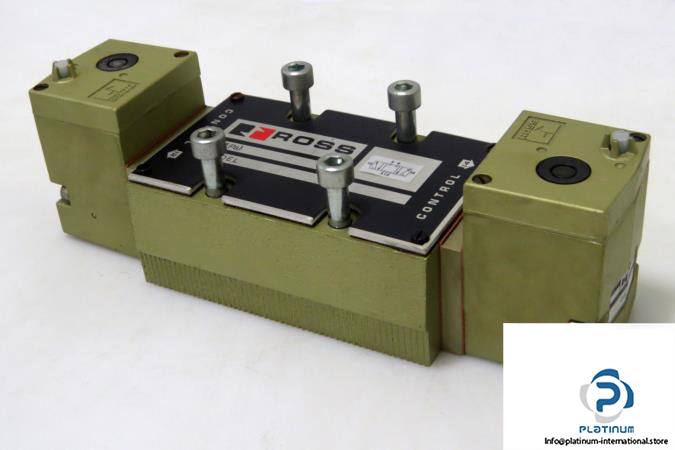

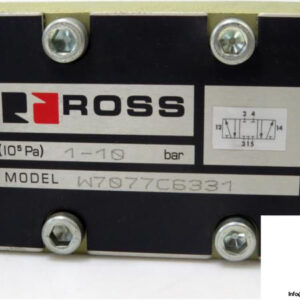

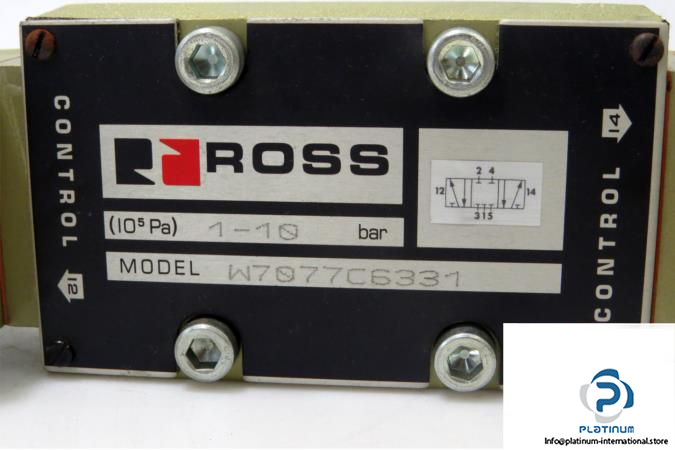

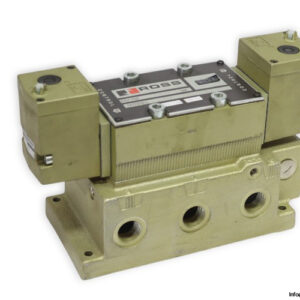

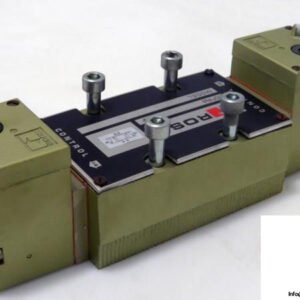

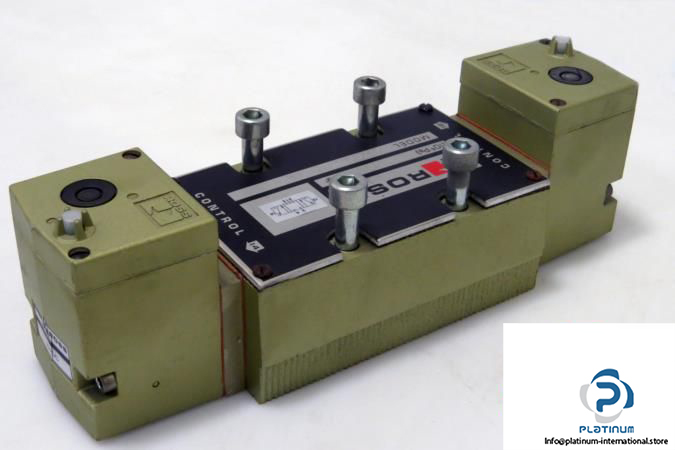

ROSS W7077C6331 Solenoid Control Valve
The ROSS W7077C6331 is a high-performance solenoid control valve designed for precise control of pneumatic systems. With a 5/3-way configuration, double solenoid actuation, and normally closed default position, it ensures reliable and efficient air flow management. Engineered for durability, it supports a wide operating pressure range and temperature tolerance, making it ideal for industrial applications.
- Manufacturer: ROSS
- Type: Solenoid Control Valve
- Model: W7077C6331
Technical Information
- Flow Media: Filtered air
- Type of Actuation: Electrically
- Function: 5/3-way, Double Solenoid
- Default Position: Normally Closed
- Operating Pressure: 1 to 10 bar
- Port Size: G3/4
- Ambient Temperature: 4 to 50°C
- Media Temperature: 4 to 80°C
