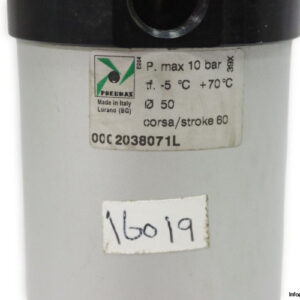

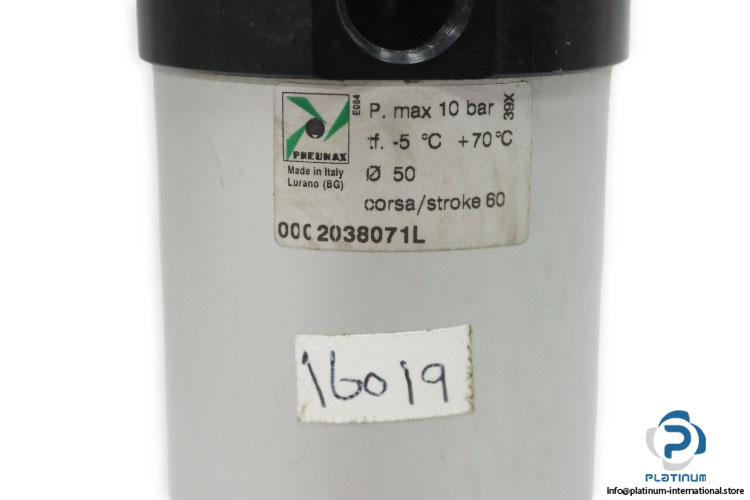

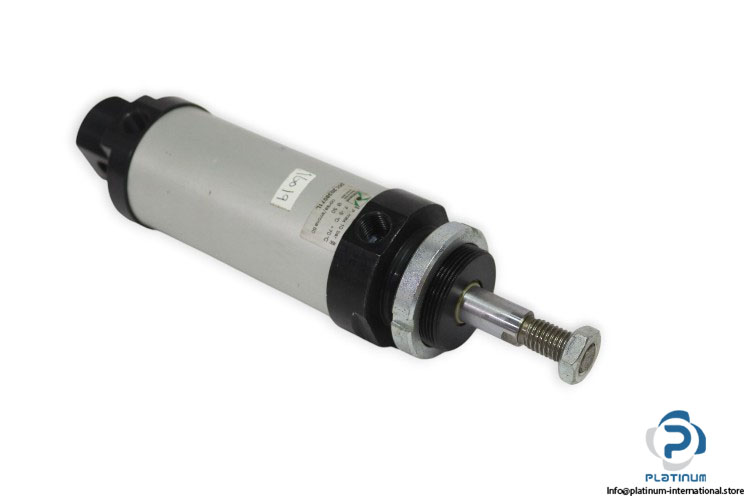

Pneumax 0002038071L Pneumatic Cylinder
The Pneumax 0002038071L is a high-quality pneumatic cylinder designed for reliable operation in industrial automation applications. Built with durable aluminum body and stainless steel piston rod, it delivers excellent performance under demanding conditions. With double-acting action, precise stroke, and robust construction, this cylinder ensures efficiency and long service life.
- Manufacturer: Pneumax
- Type: Pneumatic Cylinder
- Model: 0002038071L
Technical Information
- Fluid: Air
- Cylinder Action: Double Acting
- Bore Diameter: 50 mm
- Stroke: 60 mm
- Working Pressure: Max. 10 bar
- Connection: G1/4
- Cylinder Body Material: Aluminum with front/rear covers
- Rod Material: Stainless steel piston rod with threaded end for mounting
- End Rod: Male one side
- Rod Diameter: 14 mm
- Operating Temperature: -5 to 70 °C
