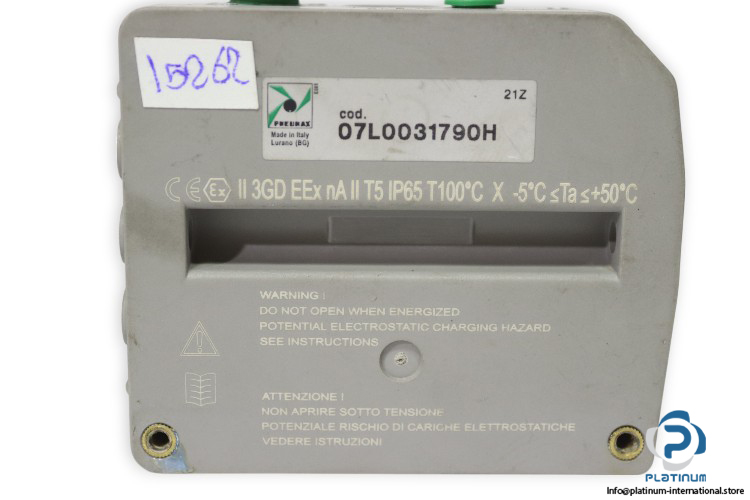

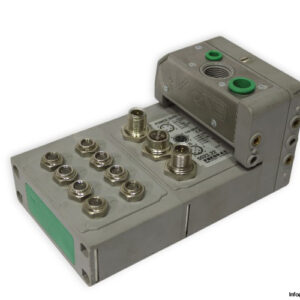

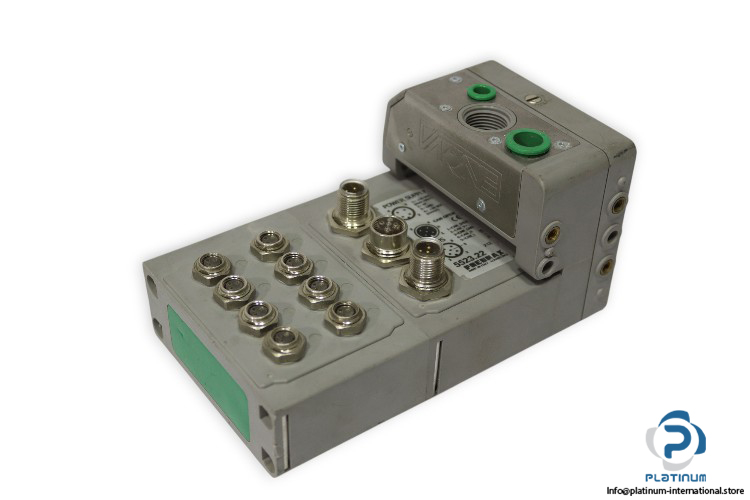

PNEUMAX 07L0031790H VALVE TERMINAL

The Pneumax 07L0031790H Valve Terminal is a compact and modular control solution designed for industrial automation systems. With integrated connections and reliable IP65 protection, it ensures efficient air distribution and control across various pneumatic systems.

Manufacturer: Pneumax
Type: Valve Terminal

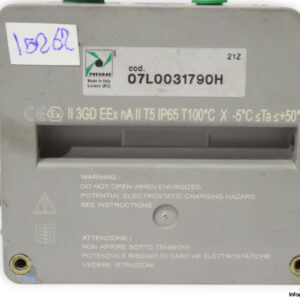

Model: 07L0031790H
Code: 21Z

Technical Information

• Connection: 3/8 inch
• Temperature Range: -5 to 50 °C
• IP Rating: IP65

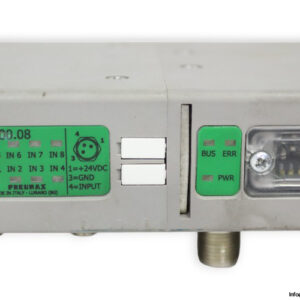

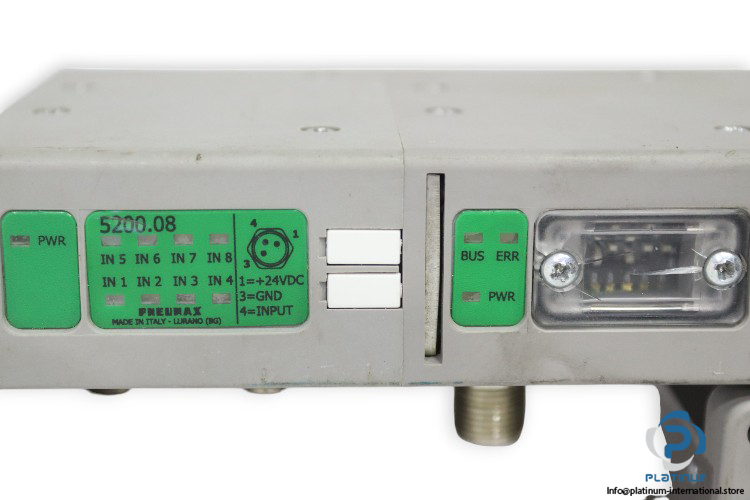

Attachment 1: PNEUMAX 5200.08 MODULE

• Voltage: 24 V DC
• Connector: M8, 3P Female

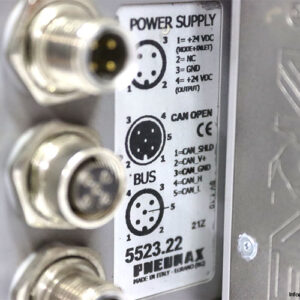

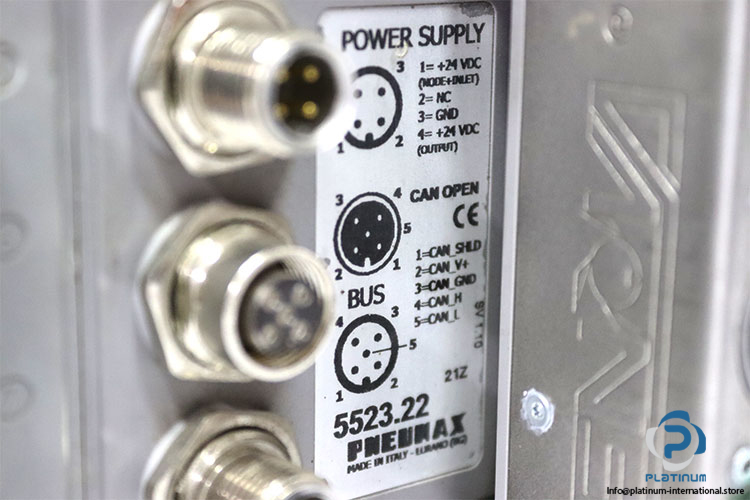

Attachment 2: PNEUMAX 5523.22 POWER SUPPLY

• Voltage: 24 V DC
• Maximum Outlets: 22
• Inlets: 22

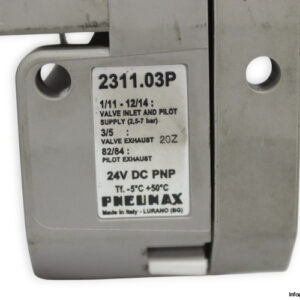

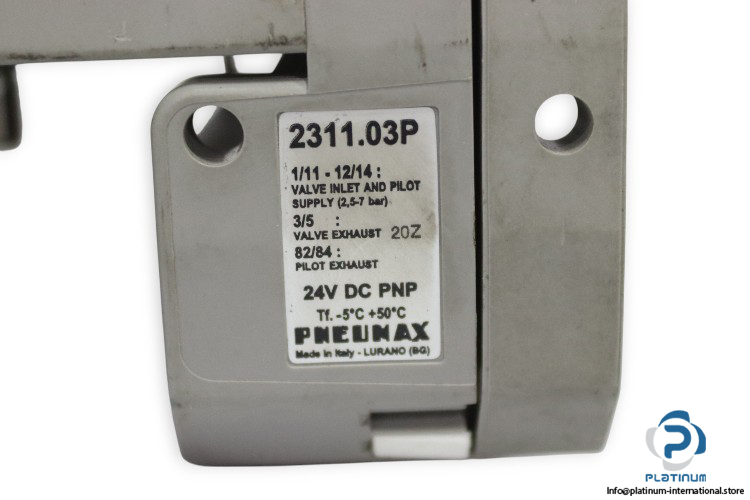

Attachment 3: PNEUMAX 2311.03P ENDPLATE

• Voltage: 24 V
• Output: PNP
• Temperature Range: -5 to 50 °C
• Valve Inlet and Pilot Supply (1/11 – 12/14): 2.5 “ 7 bar
• Valve Exhaust (3/5): Yes
• Pilot Exhaust (82/84): Yes
