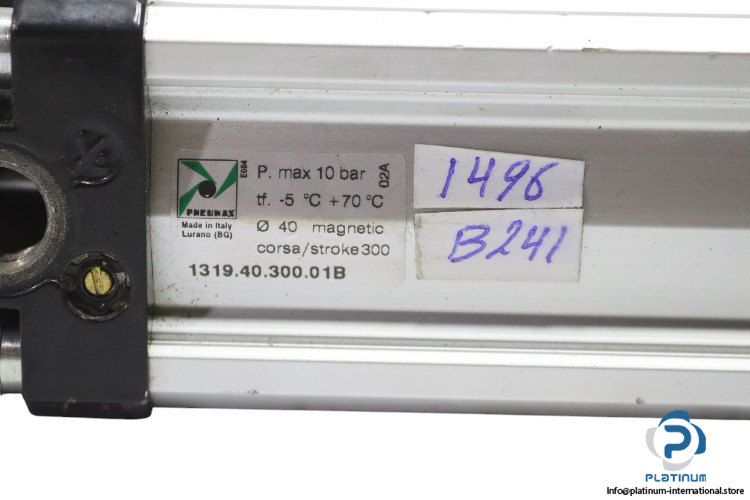

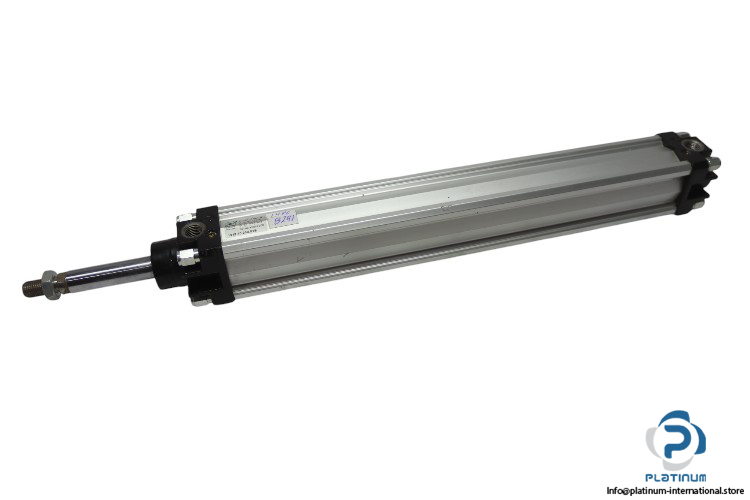

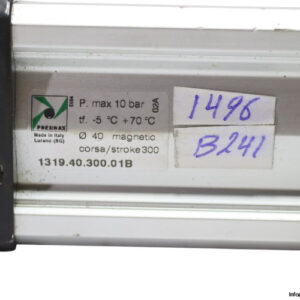

PNEUMAX 1319.40.300.01B ISO Cylinder

The PNEUMAX 13194030001B ISO Cylinder is a robust and efficient pneumatic actuator designed for industrial automation. With a square profile and double-acting operation, it ensures precise linear motion under high pressure conditions up to 10 bar.

Manufacturer: PNEUMAX

Type: ISO Cylinder

Model: 1319.40.300.01B

Technical Information:

• Media: Compressed Air
• Bore Diameter: 40 mm
• Stroke: 300 mm
• Bore x Stroke: 40 x 300 mm
• Rod Diameter: 16 mm
• Frame Dimensions: 52 x 430 mm
• Pneumatic Connection: G 1/4
• Pressure Max.: 10 bar
• Operation Mode: Double
• Piston Rod End: Male
• Shape: Square
• Rod Direction: One Side
