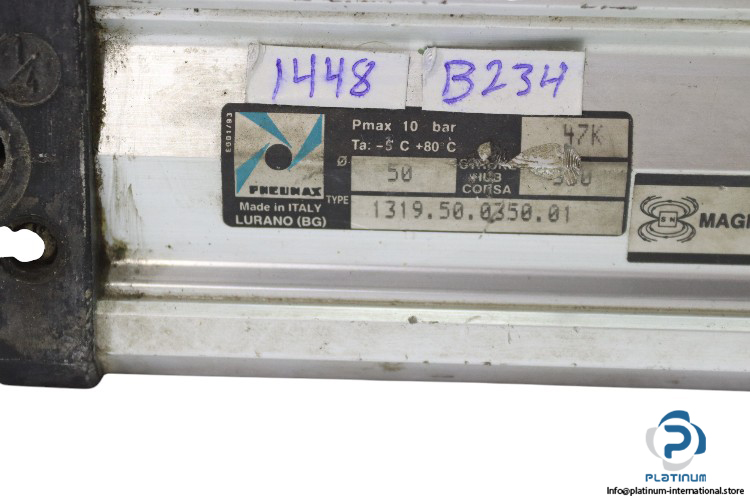

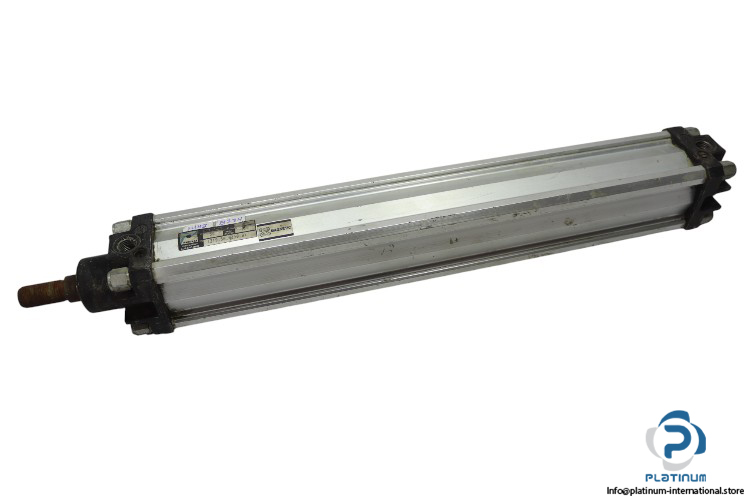

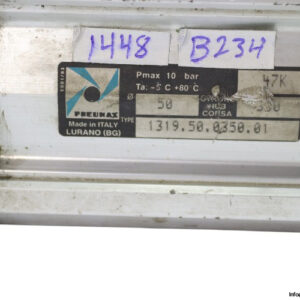

Pneumax 1319.50.0350.01 ISO Cylinder

The Pneumax 131950035001 ISO Cylinder is designed for reliable performance in pneumatic applications. Built to ISO standards, it features a 50 mm bore, 350 mm stroke, and robust square profile construction for efficient linear motion control.

Manufacturer: PNEUMAX

Type: ISO Cylinder

Model: 1319.50.0350.01

Technical Information:

• Media: Compressed Air
• Bore Diameter: 50 mm
• Stroke: 350 mm
• Bore x Stroke: 50 x 350 mm
• Rod Diameter: 20 mm
• Frame Dimensions: 65 x 485 mm
• Pneumatic Connection: G 1/4
• Pressure Max.: 10 bar
• Operation Mode: Double
• Piston Rod End: Male
• Shape: Square
• Rod Direction: One Side
