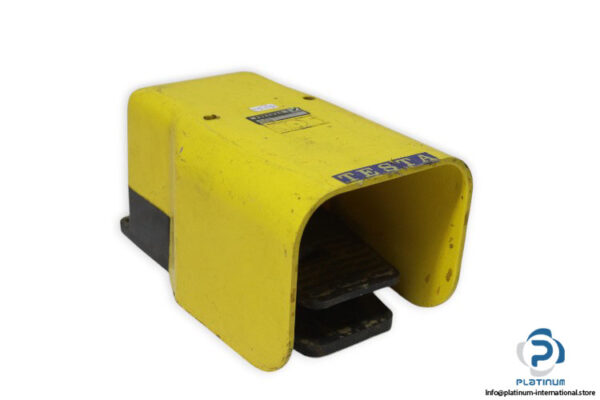

Pneumax 228.52.10/1 Pneumatic Foot Pedal Valve with Guard
The Pneumax 228.52.10/1 is a robust pneumatic foot pedal valve designed for operator safety and reliable performance in automation systems. Featuring a protective yellow guard, this 2-position, 5/2-way valve ensures accurate directional control of compressed air for pneumatic actuators and tools. Its ergonomic design allows comfortable foot operation while maintaining consistent airflow and system efficiency.
- Manufacturer: Pneumax
- Type: Pneumatic Foot Pedal Valve with Guard (2-positions)

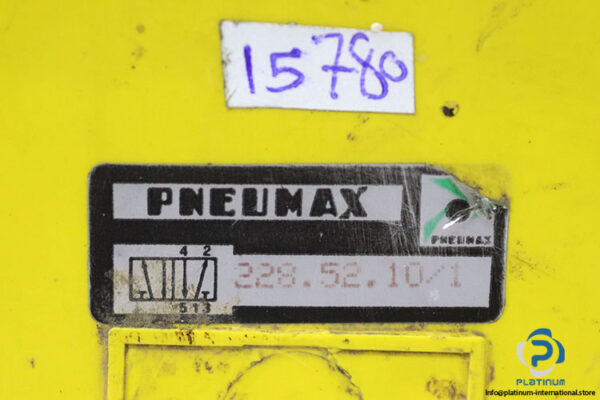

- Model: 228.52.10/1
- Series: 228
Technical Information
- Fluid: Filtered and lubricated air
- Max Working Pressure: 10 bar
- Flow Rate at 6 bar: 540 NI/min
- Orifice Size: 6 mm
- Valve Type: 5/2-way pneumatic directional control valve
- Connection: G1/8
- Operation: Foot pedal actuated, spring return

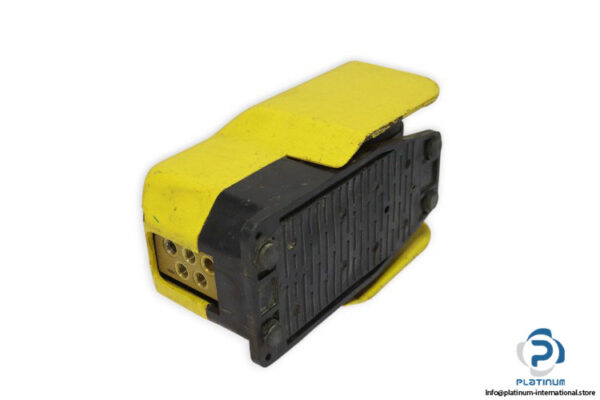

- Ports: Multi-port pneumatic connections (supply, exhaust, actuator outputs)
- Housing: Rugged yellow protective guard for safety and operator comfort
- Function: Directs compressed air flow to actuators / pneumatic cylinders via foot control
- Applications: Operator-controlled pneumatic tools, clamping devices, presses, and automation systems
- Operating Temperature: -5 to 70°C
- Dimensions: 230 x 155 x 150 mm
