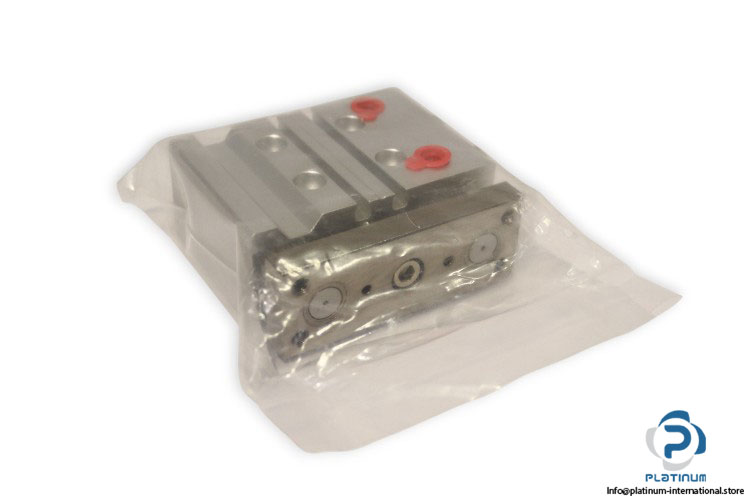

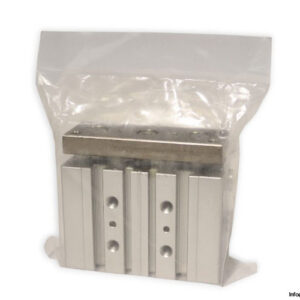

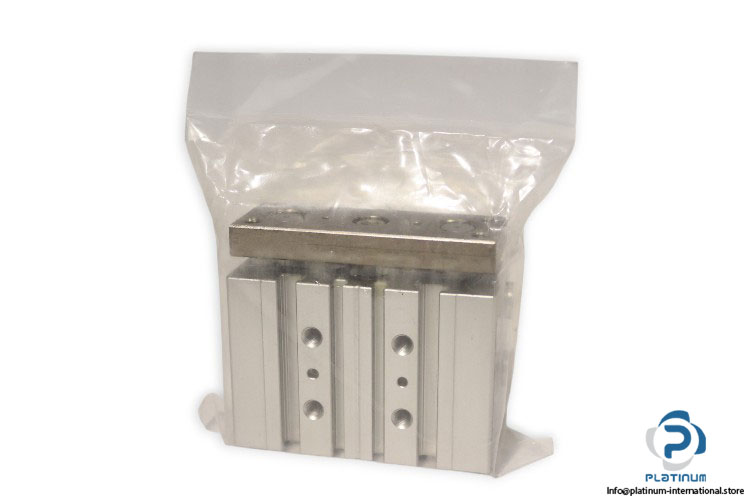

Pneumax 61002020CL Guided Compact Cylinder

The Pneumax 61002020CL is a precision-engineered guided compact cylinder, designed for tight-space applications requiring accurate linear motion and stability. With durable materials and a guided chromed steel rod system, it ensures high-performance operation in demanding pneumatic environments.

Manufacturer: Pneumax
Type: Guided Compact Cylinder

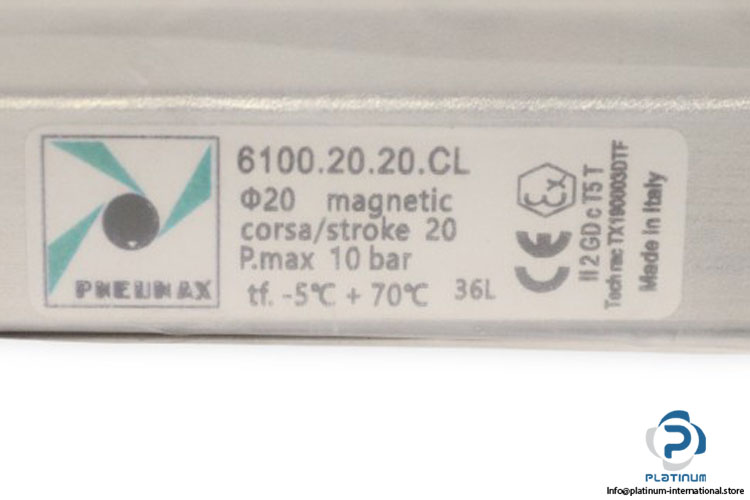

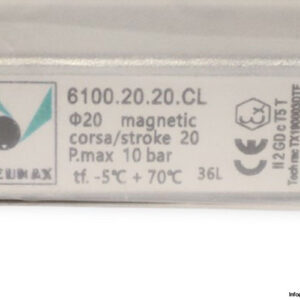

Model: 61002020CL
Ref. Code: 36L

Technical Information

• Bore Size: 20 mm
• Stroke Length: 20 mm
• Guide Rods: C43 Chromed Steel (bronze bush version)
• Material:
• Piston: Aluminum
• Piston Rod: Stainless Steel
• Piston Seal: Oil‘resistant NBR Rubber
• Piston Rod Seal & Wipers: PUR (NBR 12“16)
• Cover Plate: Nickel‘plated Steel
• Body: Anodized Aluminum
• Connection: G1/8
• Max. Pressure: 10 bar
• Temperature Range: -5 to 70°C
