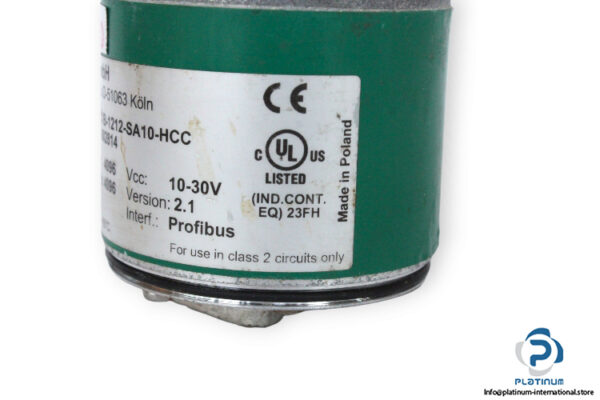

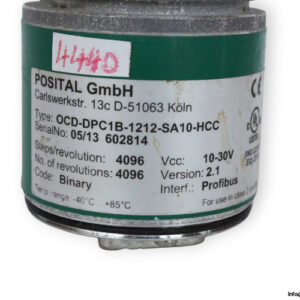

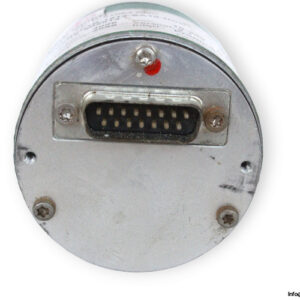

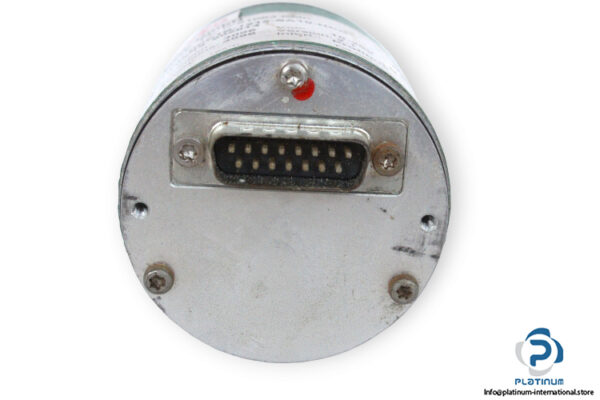

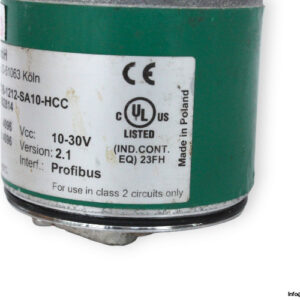

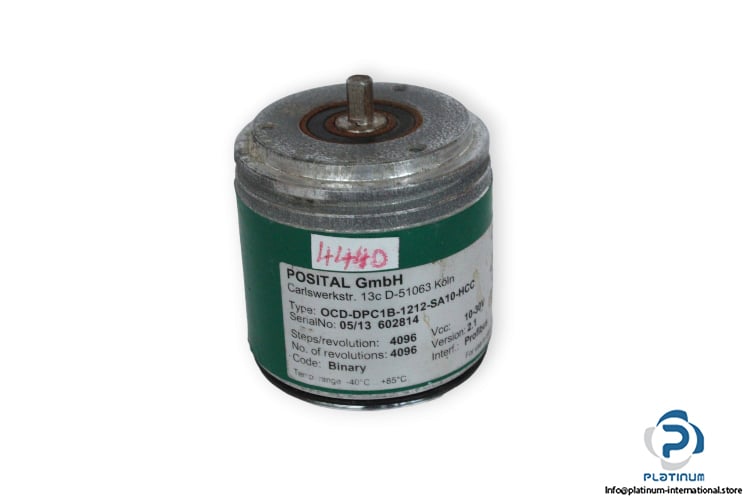

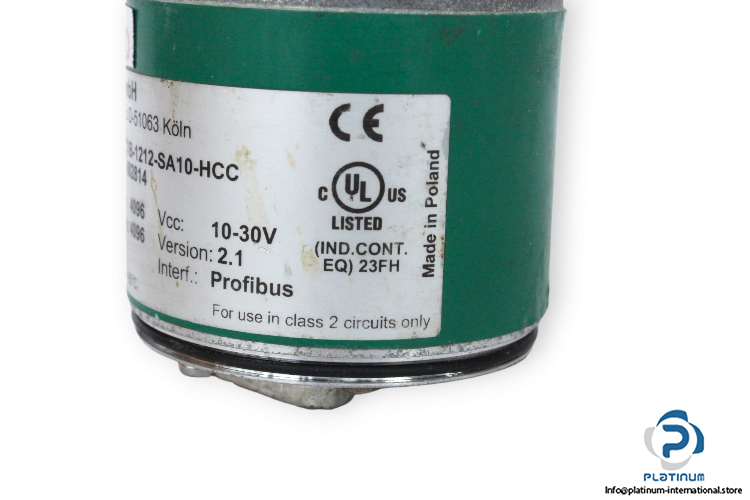

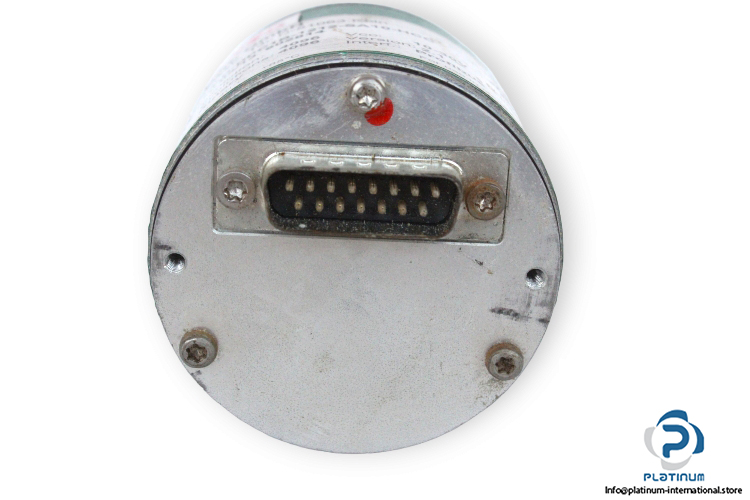

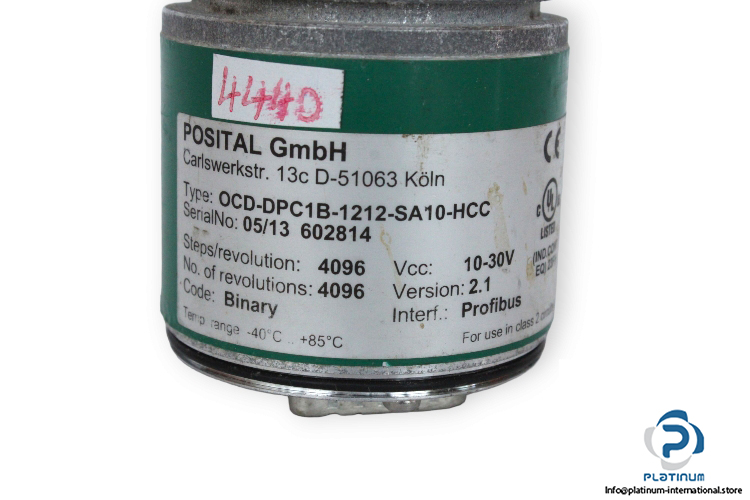

POSITAL GMBH ABSOLUTE ROTARY ENCODER “ OCD-DPC1B-1212-SA10-HCC

This industrial-grade absolute rotary encoder from Posital GmbH offers high-resolution performance with robust environmental protection. Engineered for precision feedback in automation and motion control applications, it delivers dependable and accurate data even in harsh environments.

Manufacturer: Posital GmbH
Type: Absolute Rotary Encoder
Model: OCD-DPC1B-1212-SA10-HCC
Serial No.: 05/13 602814

Technical Information

• Input Voltage: 10 / 30 V DC
• Power Consumption: ‰¤ 1.5 W
• Flange Type: Synchro, ø 58 mm (S)
• Flange Material: Aluminum
• Interface: Profibus DP
• Sensor Technology: Optical
• Shaft Type: Solid, Double Flat, Length = 10 mm
• Shaft Diameter: 6 mm (0.24³)
• Shaft Material: Stainless Steel V2A (1.4305, 303)
• Direction Type: Radial
• Housing Material: Steel
• No. of Revolutions: 4096 SPR
• Protection Class: IP65
• Code: Binary
• Operating Temperature: -40 / +85°C
