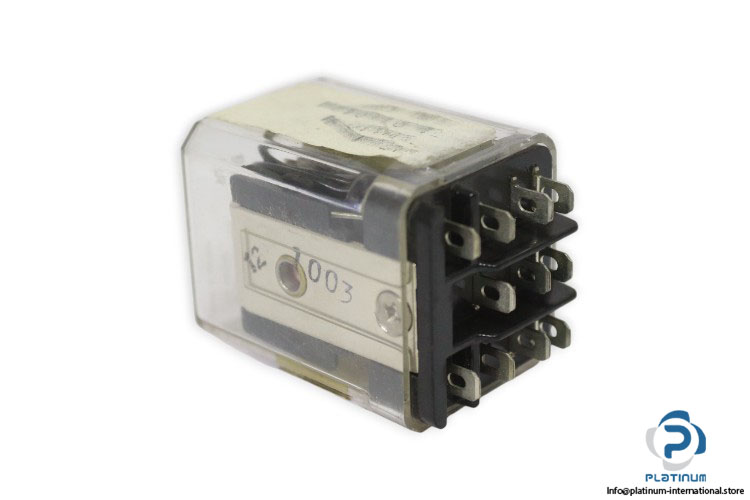

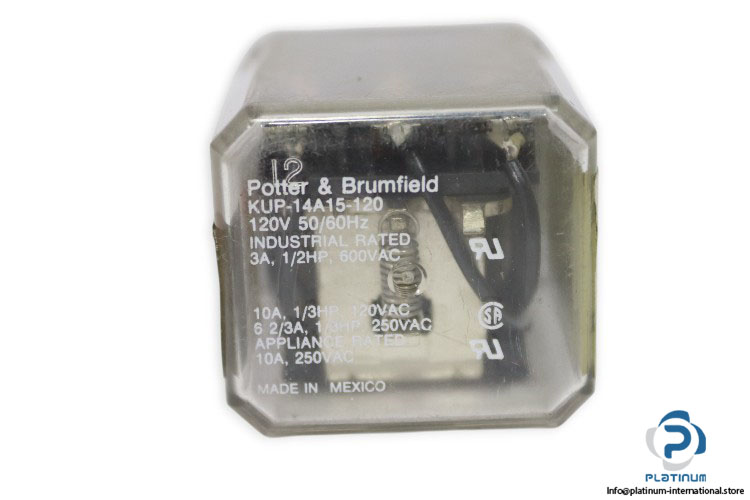

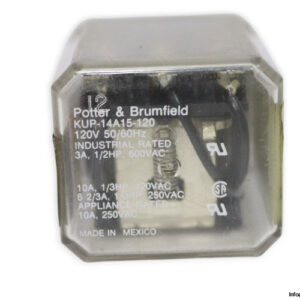

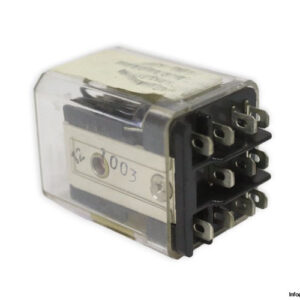

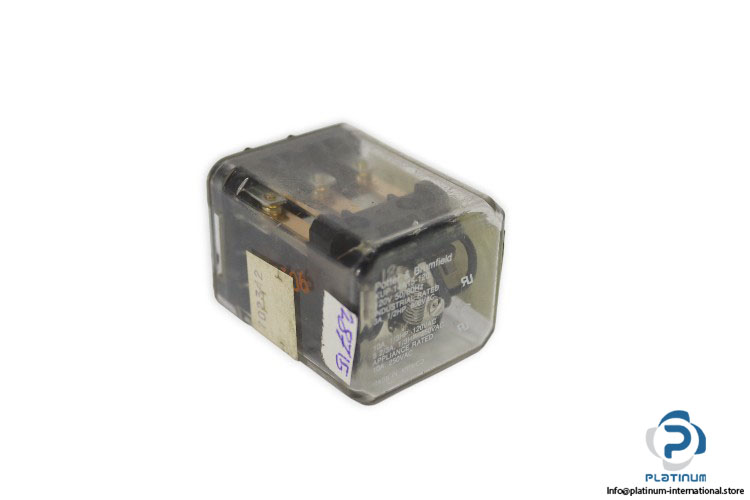

Potter & Brumfield KUP14A15120 Electromechanical Relay
The Potter & Brumfield KUP14A15120 is a robust electromechanical power relay from the KUP series, engineered for reliable switching in industrial and electrical applications. Featuring a 120 VAC coil, durable silver cadmium oxide contacts, and panel plug-in mounting, it ensures dependable operation under demanding conditions.
Manufacturer: Potter & Brumfield
Type: Electromechanical Relay / Power Relay / Basic Enclosed Relay
Model: KUP14A15120

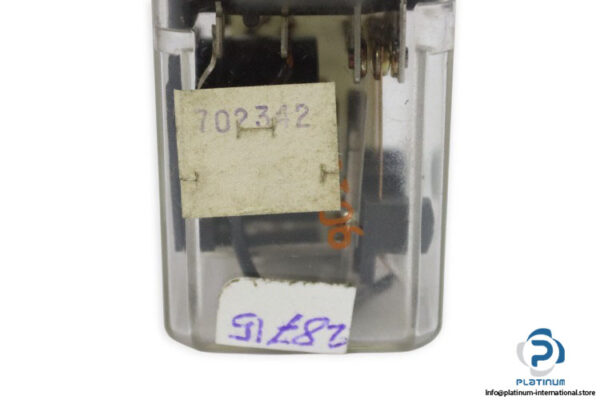

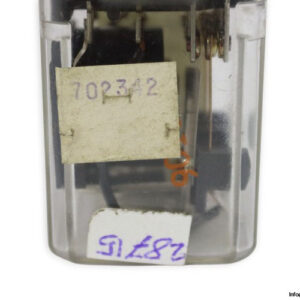

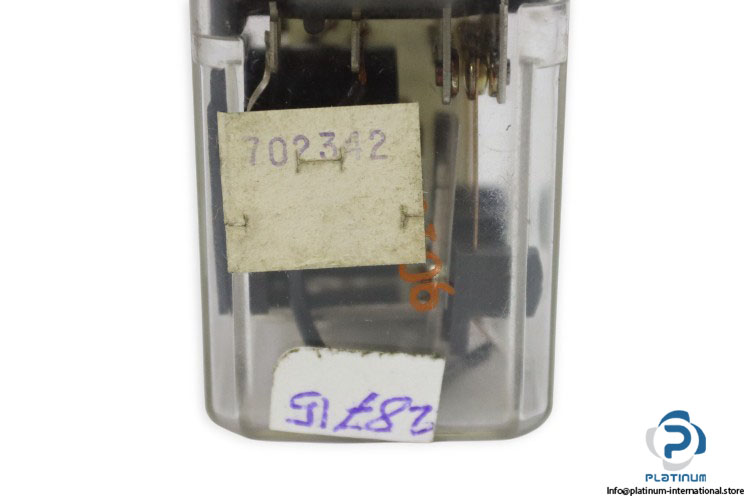

Ref. No.: 702342
Series: KUP
Technical Information
- Coil Voltage: 120 VAC (50/60 Hz)
- Coil Resistance: 1.7 kΩ
- Coil Power Rating: 2.9 VA, Class B insulation
- Contact Arrangement: 3 Form C (3PDT)
- Contact Current Rating: 10 A
- Contact Material: Silver Cadmium Oxide (AgCdO)
- Minimum Switching Load: 300 mA at 12 V
- Termination: Quick-connect (0.187 inch) solder terminals
- Mounting Type: Panel plug-in / Socket
- Dimensions: 35.7 × 38.9 × 49 mm
- Operating Temperature: -45 to 45 °C
