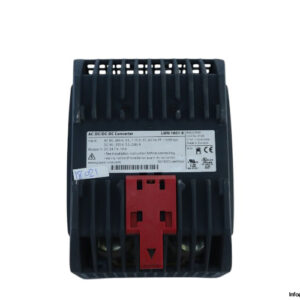

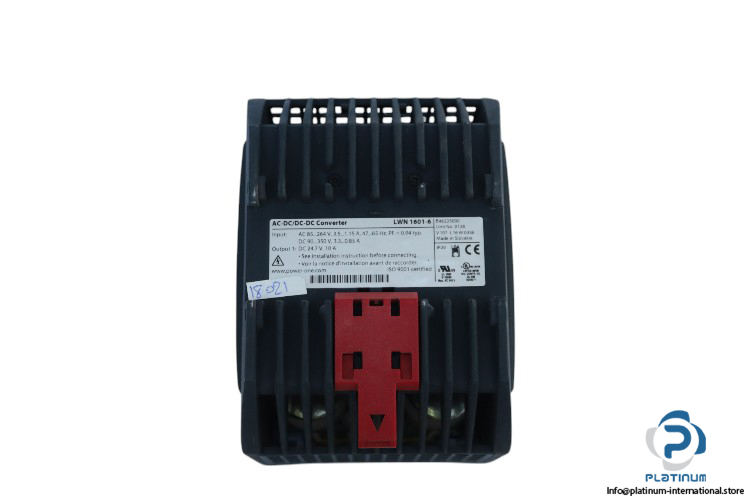

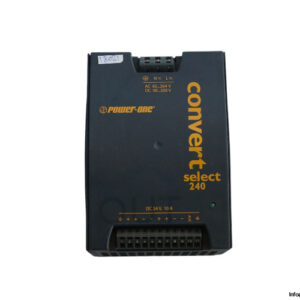

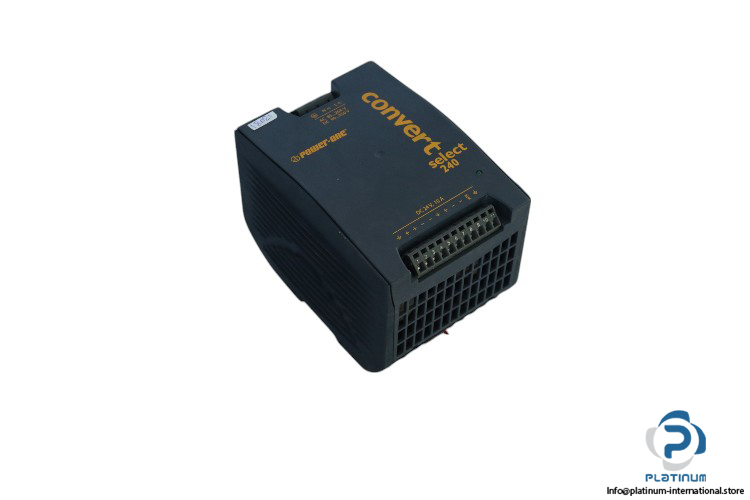

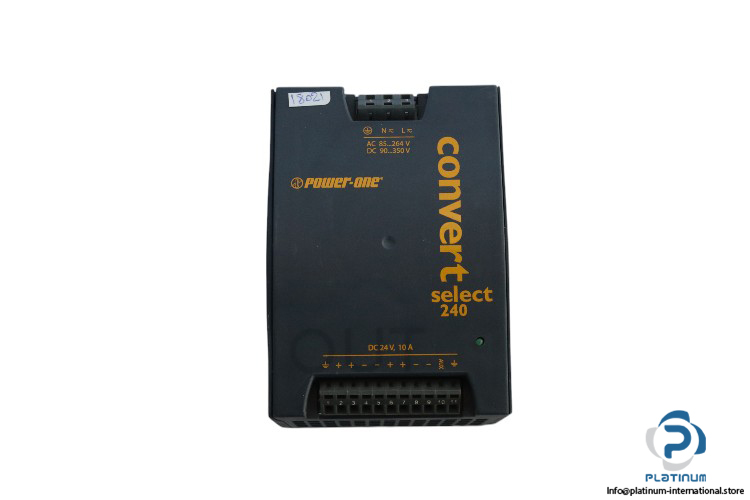

Power-One Power Supply LWN 1601-6
The Power-One Power Supply LWN 1601-6 is designed to provide reliable and efficient power conversion for industrial applications. With a wide input voltage range of 85…264 VAC / 90…350 VDC, this power supply offers a stable 24 VDC output with a current rating of 10A, making it ideal for demanding applications that require high power output and efficiency.
The LWN 1601-6 model operates with a rated power of 125W to 250W at an ambient temperature of 60°C, ensuring it delivers consistent performance under various operating conditions. It supports input frequencies from 14 to 440 Hz, allowing it to function effectively across different power systems. With an IP20 protection degree, the power supply is built to meet industrial standards and safeguard sensitive components in harsh environments.
Manufacturer: Power-One
Type: Power Supply
Part No.: LWN 1601-6
Technical Information:
- Input voltage: 85…264 VAC / 90…350 VDC
- Output voltage: 24 VDC, 10A
- Rated Power: 125 / 250 W at TA=60°C
- Input frequency: 14…440 Hz
- Degree of protection: IP 20
- Operating Ambient: -40…60°C
The Power-One Power Supply LWN 1601-6 is a durable and reliable power supply solution designed for a wide range of industrial and commercial applications, providing consistent power in varied environmental conditions.
