Manufacturer: REXNORD

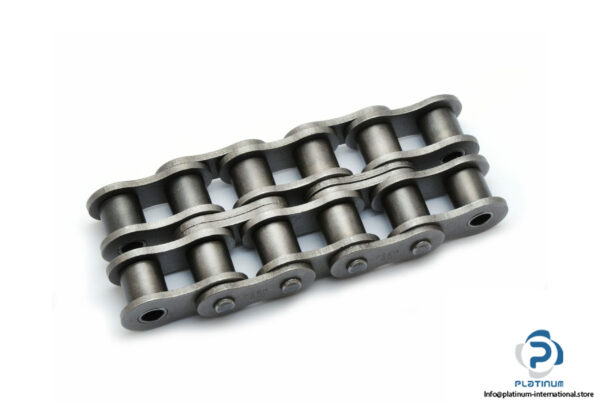

Type: Duplex Metric Roller Chain
Model: 24B-2
DIN/ISO 606

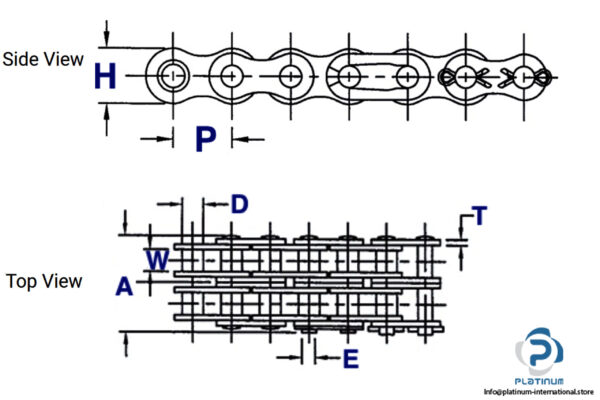

Chain no. 24B-2
PitchP: 38.1mm
Roller diameter D1: 25.4mm
Roller Width (W): 25.4mm
Pin Diameter E: 14.63mm
Plate Height (H): 33.4mm
Transverse Pitch (T): 48.36mm
C/L Width (A): 106.2mm
Breaking Load: 319.2 kN
Weight (Per Ft): 13.5 kg/m
