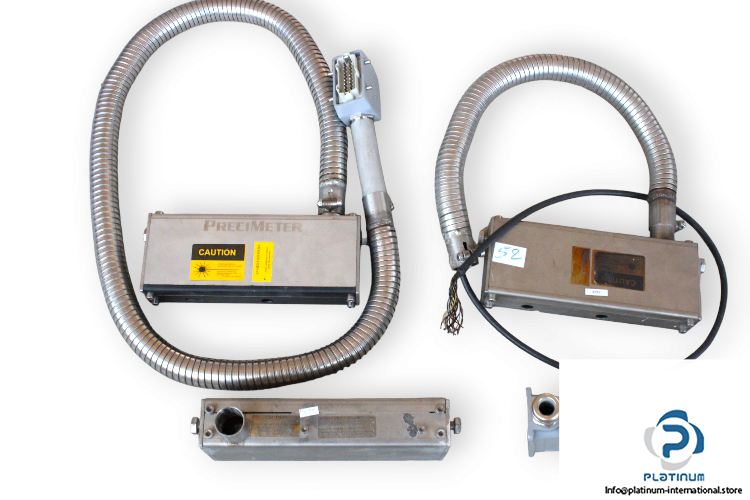

PRECI METER PROHCD240R325 DIGITAL CAMERA SENSOR

The Preci Meter PROHCD240R325 is a high-resolution digital camera sensor designed for accurate non-contact measurement and industrial process monitoring. Engineered with RS232-C communication and a precision resolution of ±0.07 mm, it provides reliable feedback in harsh conditions with temperatures up to 100°C.

Manufacturer: Preci Meter
Type: Digital Camera Sensor
Model: PROHCD240R325

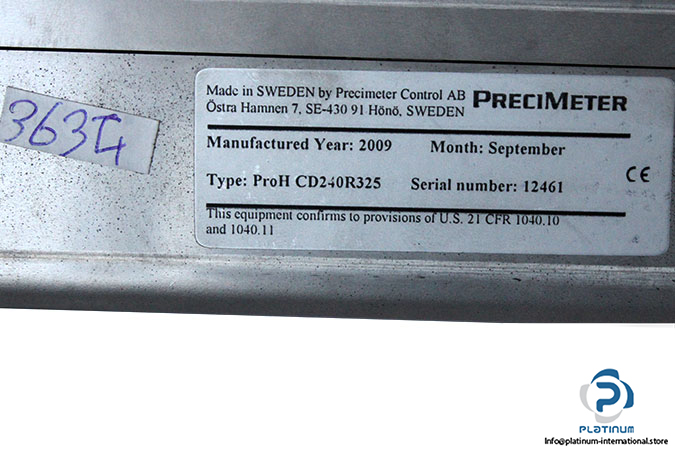

S No.: 12461

Technical Information

• Clearance Distance: 240 mm
• Measurement Range: 325 mm
• Power Requirement Voltage: 24 V DC < 1 A
• Output Current: 4 / 20 mA
• Temperature Range: 0 / 100°C
• Digital Input: Light source on/off
• Communication: RS232-C
• Digital Output: Sensor status
• Interface: Perimeter tool
• Resolution: ±0.07 mm
