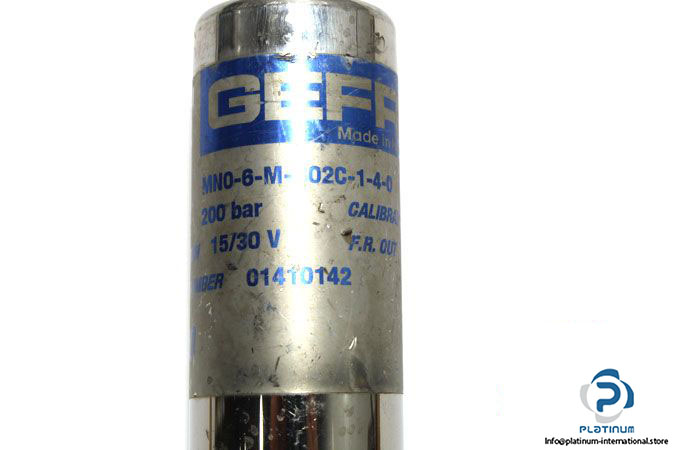

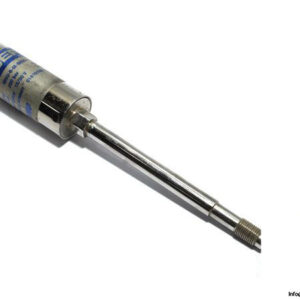

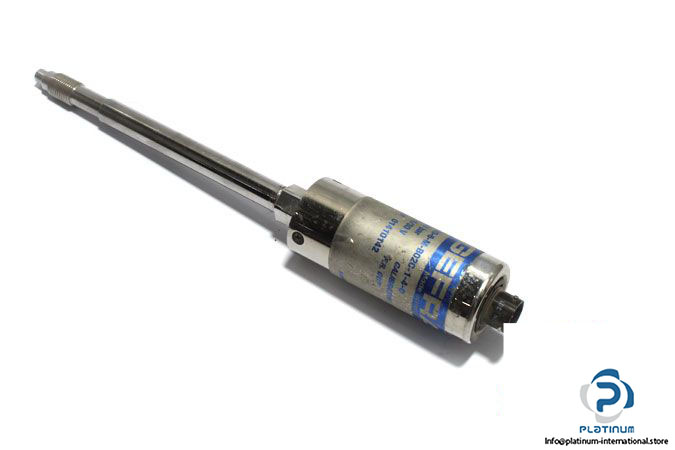

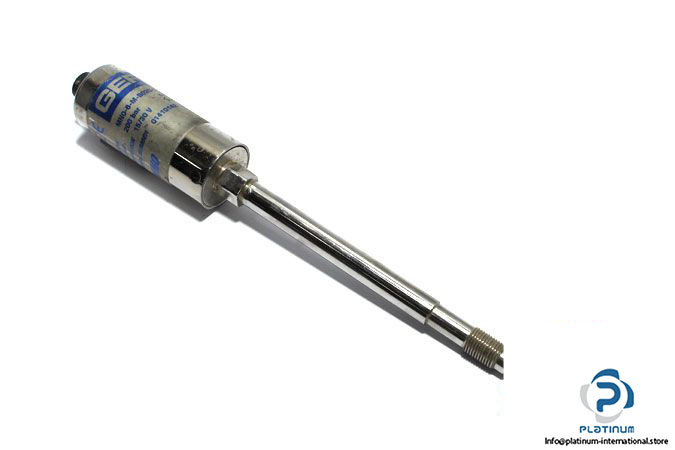

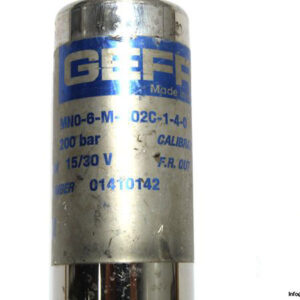

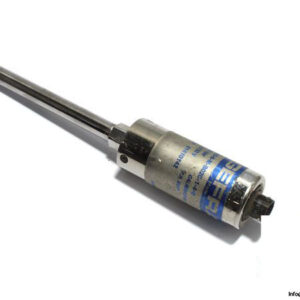

Manufacturer: GEFRAN

Type: MELT PRESSURE TRANSMITTER

Model: MN0-6-M-B02C-1-4-0

Mercury Filled Melt Pressure Transducer for use in high-temperature environments.

Pressure Range: 0 – 200 bar

Output Signal: 0 – 10 VDC

Supply Voltage: 15 …. 30 V

Operating temperature range: -30 … 105 °C

Calibration Signal: 80% F.S.

Maximum current absorption: 25 mA

Configuration: Rigid Stem

Protection degree (with 6-pin mating connector): IP65

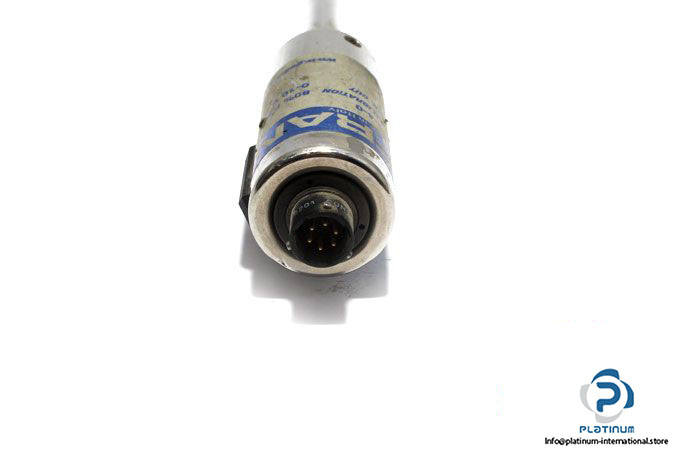

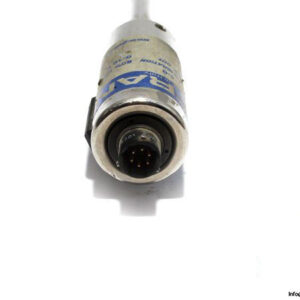

Connector: 6/6 pin

Accuracy Class: 0.5% FSO

Mercury filling volume: (30mm³)

Thread: 1/2 – 20 UNF

Rigid Stem Length: 153 mm

Operating Temperature Range: -30 …..+ 105 °C

Weight: 0.4 Kg
