REXROTH HED1OA40350L24 PRESSURE SWITCH

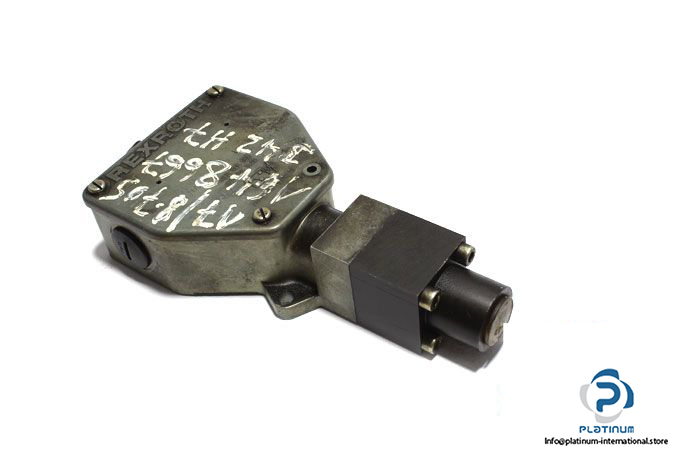

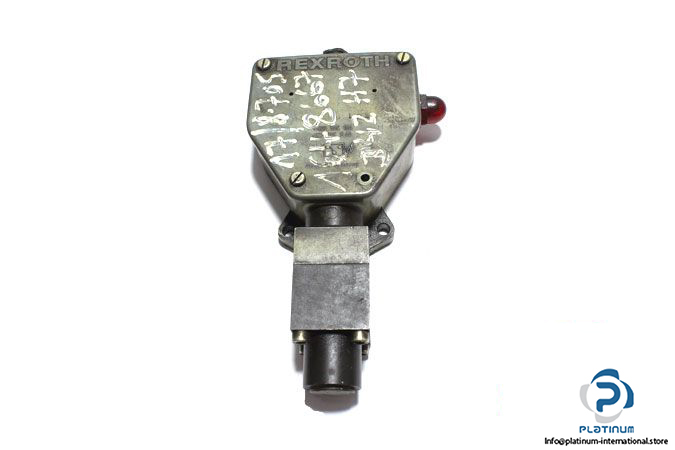

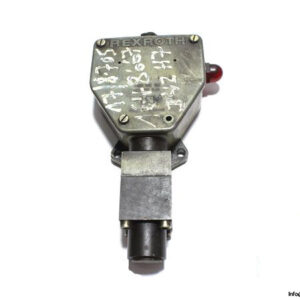

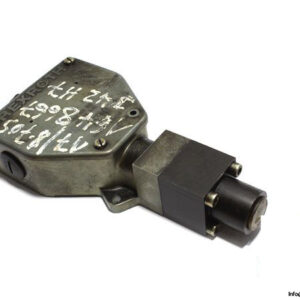

The Rexroth HED 1 OA 40/350 L24 is a hydro-electric piston type pressure switch designed for precision monitoring and control in high-pressure hydraulic systems. Built to handle demanding industrial environments, it offers dependable switching response over a wide pressure range.

Manufacturer: REXROTH
Type: Hydro-electric Piston Type Pressure Switch
Model: HED 1 OA 40/350 L24

Technical Information

• Pressure Measuring Range: 0 … 350 bar
• Falling Pressure: 6 / 295 bar
• Increasing Pressure: 20 / 350 bar
• Switching Contact: Change-Over (CO)

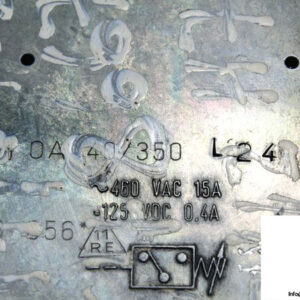

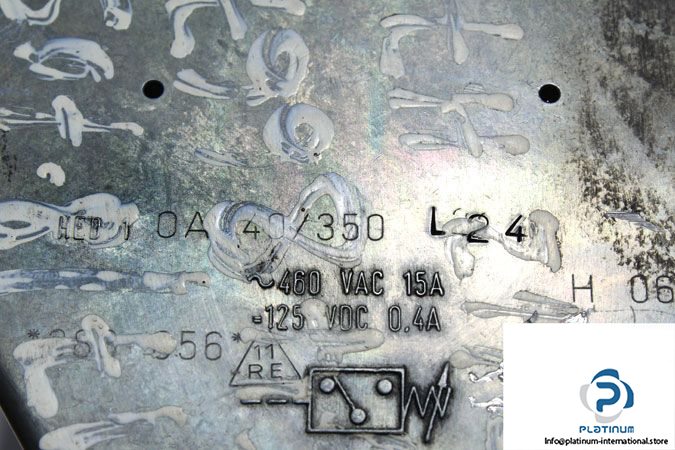

• Switching Voltage: 460 V AC, 125 V DC
• Switching Current: 15 A (AC), 0.4 A (DC)
• Connection: G1/4 female, Threaded
• Electrical Connection: 7 mm cable gland
• Fluid Temperature Range: -30 / 80 °C
