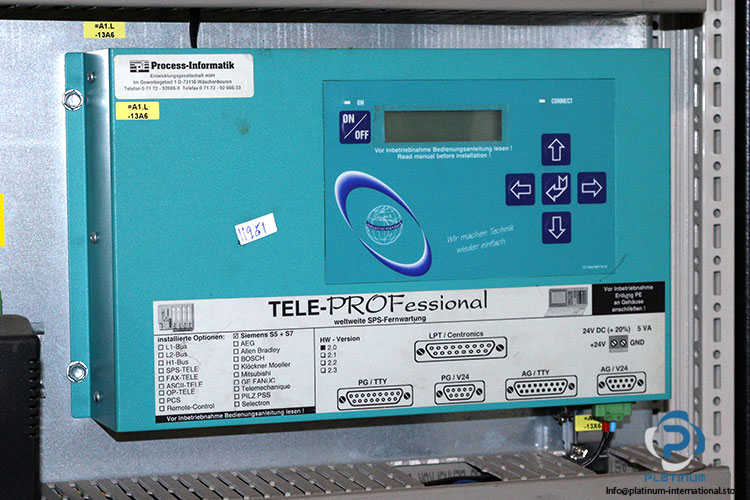

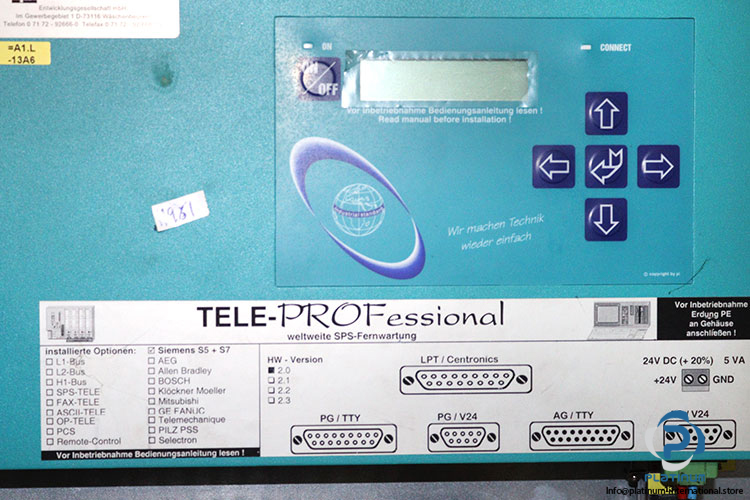

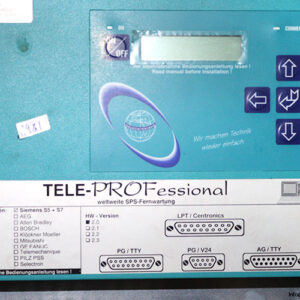

Manufacturer: PROCESS-INFORMATIK
Type: PLC Remote Maintenance
Model: TELEPROFessional
Art. No.: 9371

Used for: PLC-Coupling (Data Exchange Between PLC-Devices)
Supply Voltage: 24 V DC
Power Consumption: 5 VA
Display: Expressive LCD-Display
Handling/Configuration: Integrated Keypad / Tele-Manager
Interfaces:
– PLC:
TTY/20ma Current Loop (AG-TELE Aktiv, PLC Passiv)
RS232: 9,6 KBd – 115,2 KBd / Fully Assigned
– PD/PC:
TTY/20ma Current Loop (100 % Mechanically and Elect. Compatible)
RS232: 9,6 KBd – 115,2 KBd / With A 1on1-Cable to the PC
– Others:
1 X Parallel Port, 1 X PCMCIA
Integrated Modem: 33K6-Analogue Modem With BZT-Approval
Connections: Power Connector 2-Pin
Case: Powder Coated Metal Case with Mounting Flange
Temperature: 0 … 55 °C
Dimensions: 170 x 280 x 55 mm
