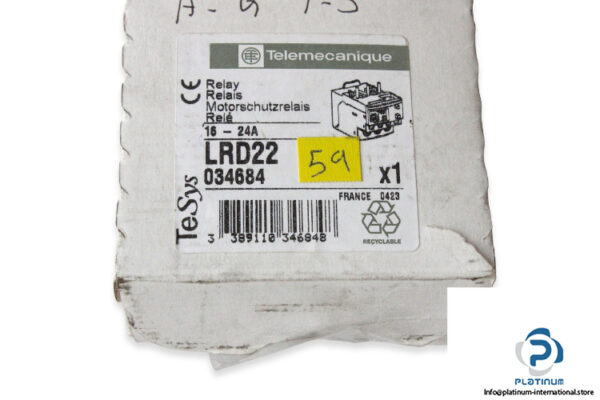

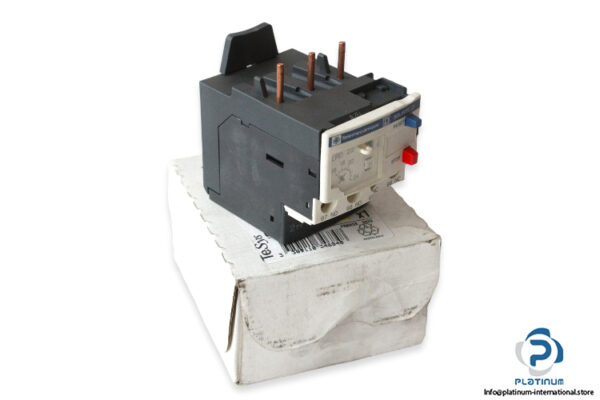

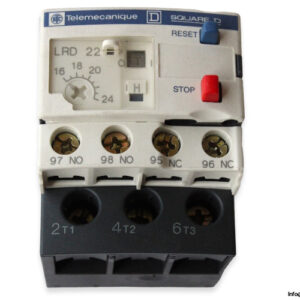

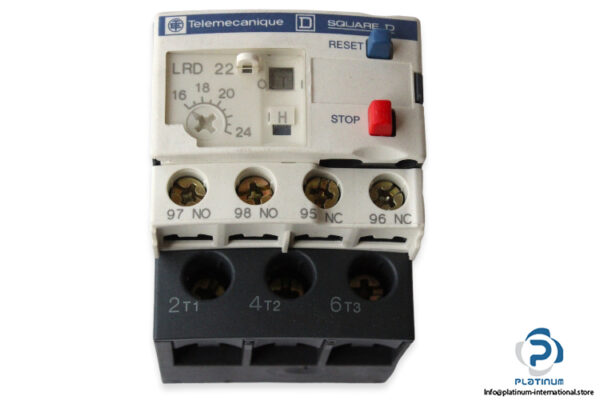

SCHNEIDER ELECTRIC LRD22 DIFFERENTIAL THERMAL OVERLOAD RELAY
The Schneider Electric LRD22 is a high-quality differential thermal overload relay designed for reliable motor protection. With adjustable thermal protection, durable screw clamp terminals, and compact dimensions, it ensures safe and efficient operation in industrial environments.
Manufacturer: Schneider Electric
Type: Differential Thermal Overload Relay
Model: LRD22
Part No.: 034684
Technical Information
- Rated Operational Voltage: 690 V AC
- Thermal Protection Adjustment Range: 16 / 24 A
- Auxiliary Contact Composition: 1 Normally Open, 1 Normally Closed
- Connections “ Terminals: Screw clamp terminals
- Tightening Torque: Control circuit: 1.7 N.m (screw clamp), Power circuit: 2.5 N.m (screw clamp)
- Relay Application: Motor protection
- Operating Temperature: -20 / 60 °C
- Degree of Protection: IP20
- Dimensions: 66 x 45 x 70 mm
