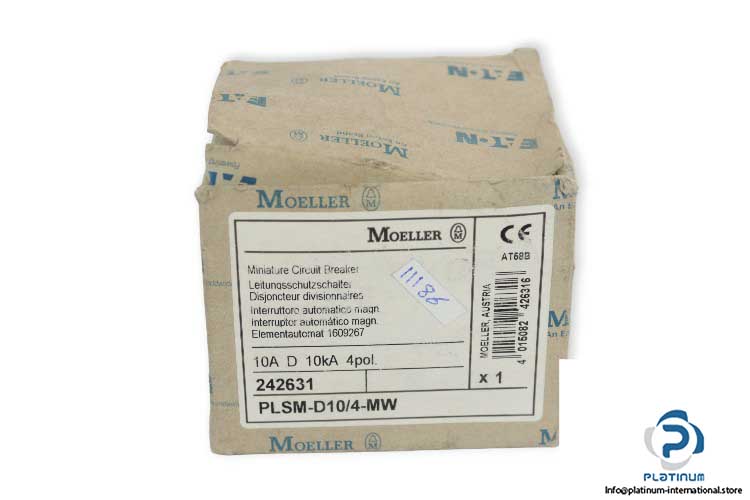

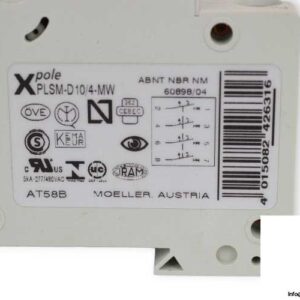

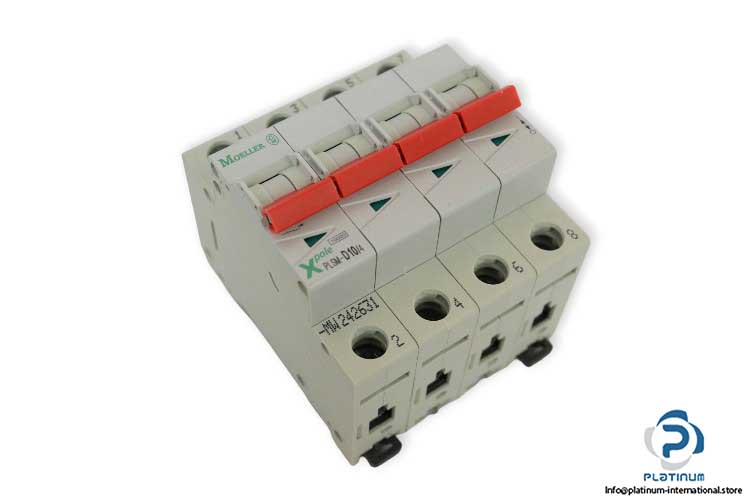

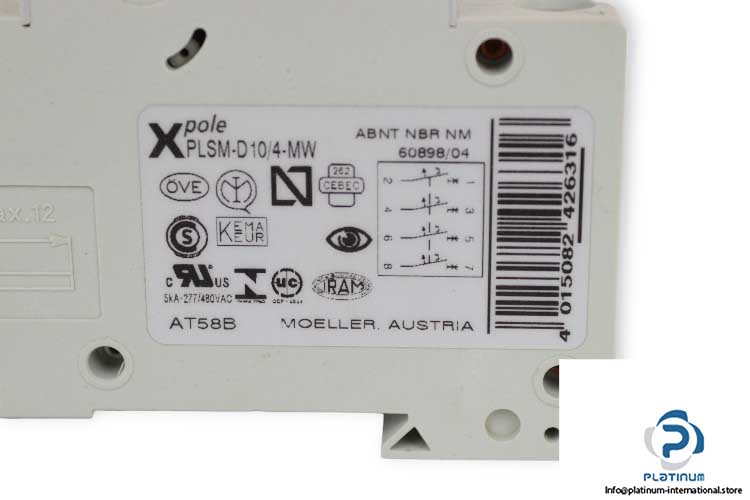

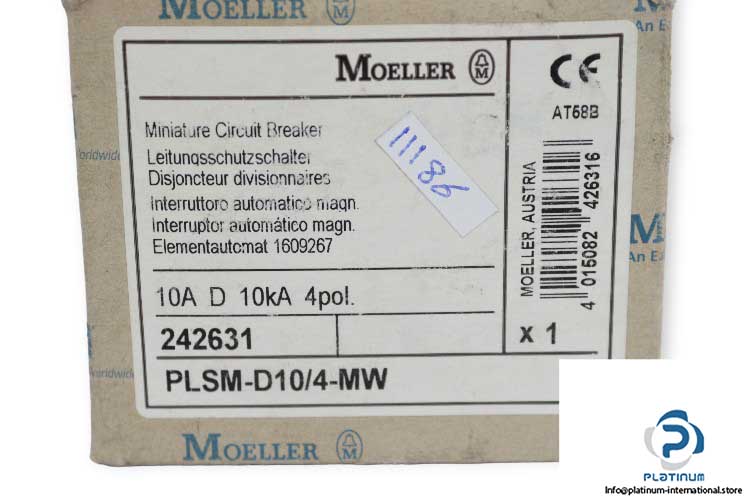

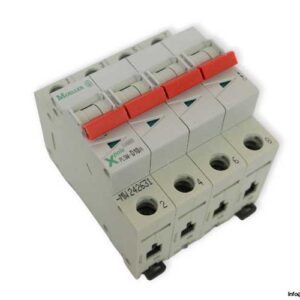

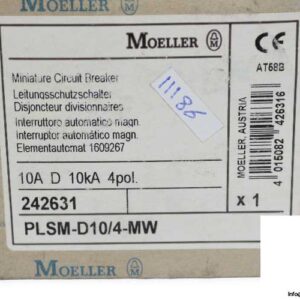

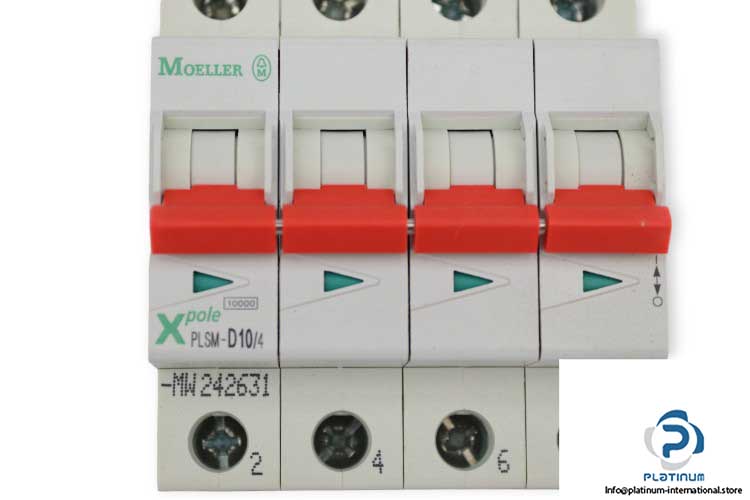

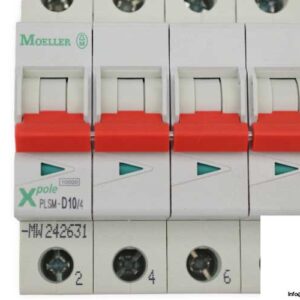

Manufacture: Moeller
Type: Miniature circuit breaker
Model: PLSM-D10/4-MW
Part No.: 242631

Application: Switchgear for residential and commercial applications xPole – Switchgear for residential and commercial applications
Rated operational voltage (Ue): 400 V AC
Rated insulation voltage (Ui): 440 V
Rated impulse withstand voltage (Uimp): 4 kV
Rated current: 10 A
Rated short-circuit breaking capacity (EN 60898) at 400 V: 10 kA
Pollution degree: 2
Frequency rating: 50/60 Hz
No. of poles: 4-pole
Degree of protection: IP20
Equipment heat dissipation, current-dependent: 6 W
Power loss: 4.7 W
Ambient operating temperature: -25 … 75°C
Dimensions: 80 x 75 x 70 mm
