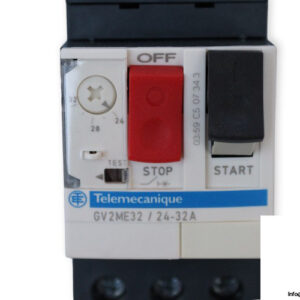

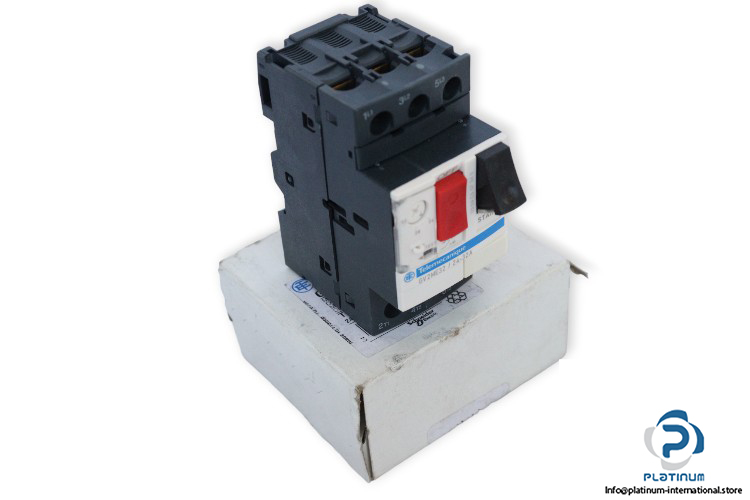

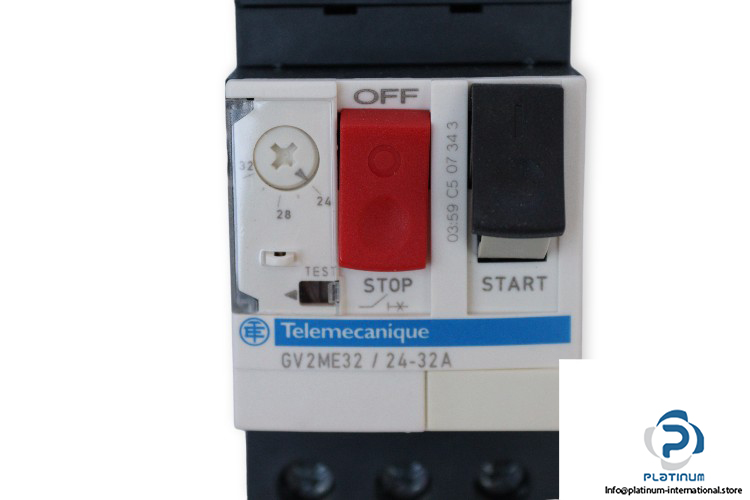

Manufacture: Telemecanique
Type: Motor Circuit Breaker
Model: GV2ME32
Product No.: 034329
Range: TeSys
Device short name: GV2ME

Device application: Motor
Thermal protection adjustment range: 24 … 32 A
Motor power: 15 KW at 400/415 V AC 50/60 Hz
Magnetic tripping current: 416 A
Rated operational voltage Ue: 690 V AC 50/60 Hz
Rated insulation voltage Ui: 690 V AC
Frequency: 50/60 Hz
Conventional free air thermal current Ith: 32 A conforming to IEC 60947-4-1
Rated impulse withstand voltage Uimp: 6 kV
Power dissipation per pole: 2.5 W
Standard: IEC / EN 60947-2, IEC / EN 60947-4-1
Poles description: 3P
Degree of protection: IP20
Ambient air temperature for operation: -20 … 60 °C
Dimensions: 89 x 45 x 78.5 mm
