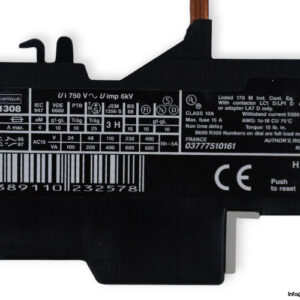

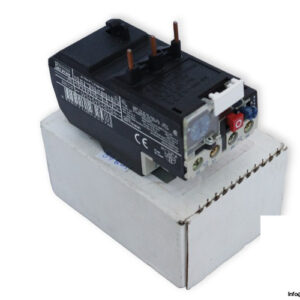

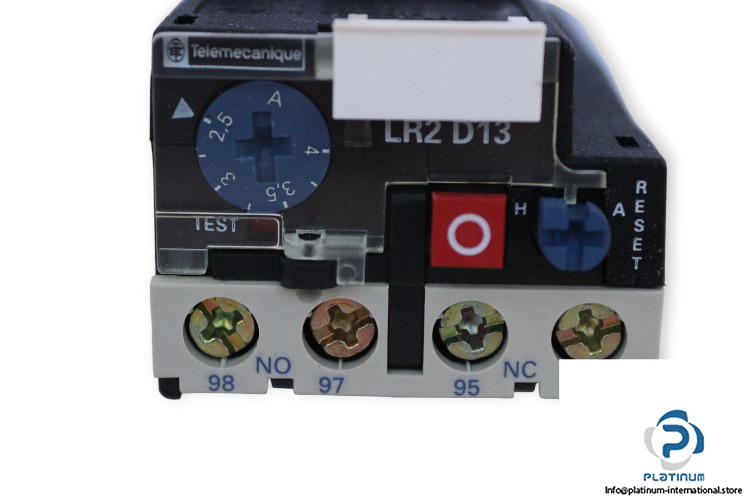

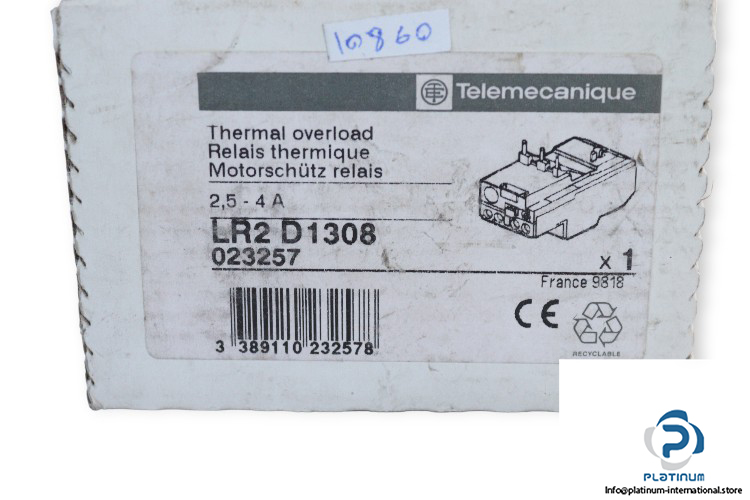

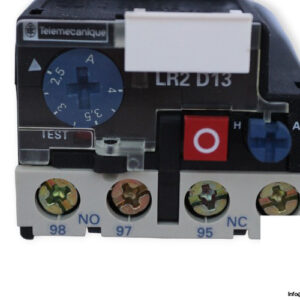

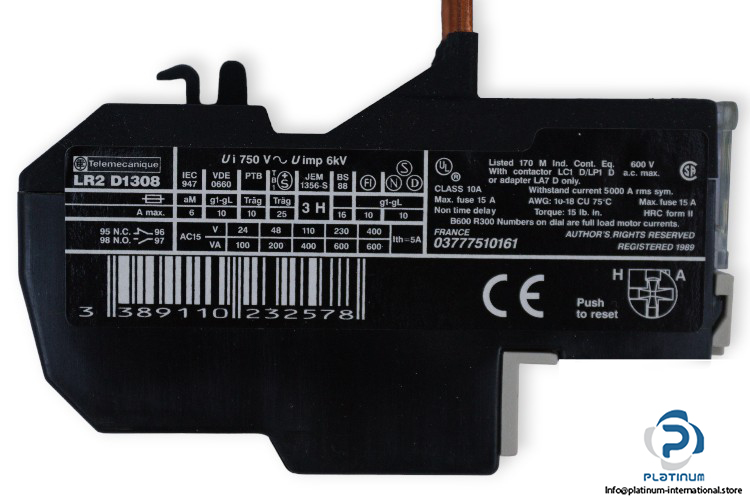

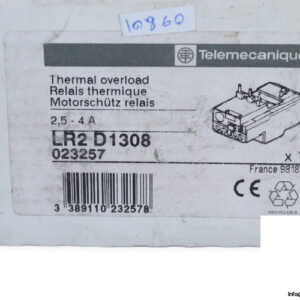

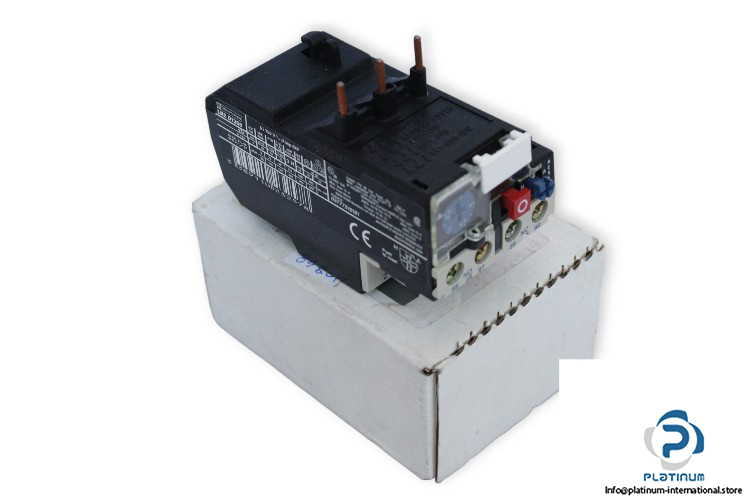

Manufacture: Telemecanique
Type: Thermal overload relay
Model: LR2 D1308
Range: TeSys D
Product No.: 023257

Relay Application: Motor protection
Network Frequency: 50/60 Hz
Current range: 2.5 … 4 A
Rated Operational Voltage Ue: 690 V AC
Tightening Torque: Control circuit 1.7 N.m on screw clamp terminals
Degree Of Protection: IP2X conforming to VDE 0106
Surge Withstand: 6 kV
Insulation voltage Ui: 750 V AC
Thermal current Ith: 5 A
Contact: 1 Normally open, 1 normally closed
Ambient Air Temperature for Operation: -20 … 60 °C
Dimensions: 121 x 75 x 100 mm
