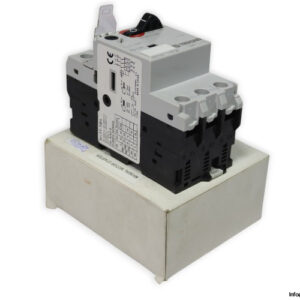

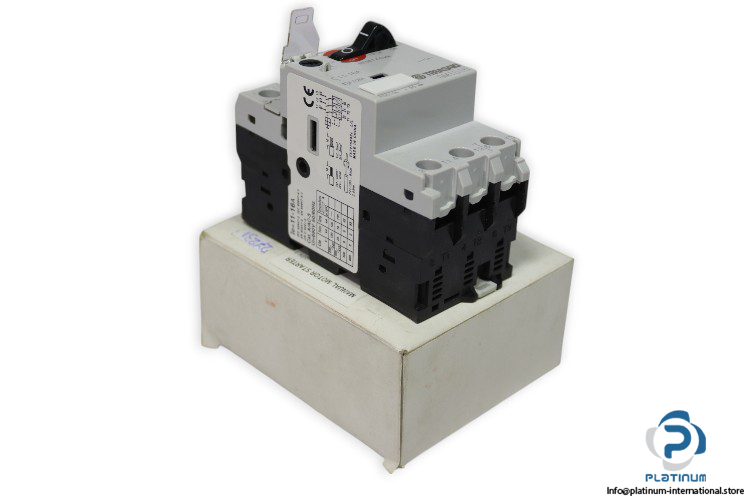

TERASAKI GM1S16 MANUAL MOTOR STARTER

Durable 3-pole manual motor starter designed to protect industrial motors from overload and short-circuits. The GM1S16 offers thermal and magnetic protection with high-breaking capacity and is built to meet IEC and EN industrial safety standards.

• Manufacturer: Terasaki
• Type: Manual Motor Starter
• Model: GM1S16
• Ref. Code: FD510 / F57275603c

Technical Information

• No. of Poles: 3
• Rated Insulation Voltage (Ui): 690 V
• Rated Frequency: 50/60 Hz

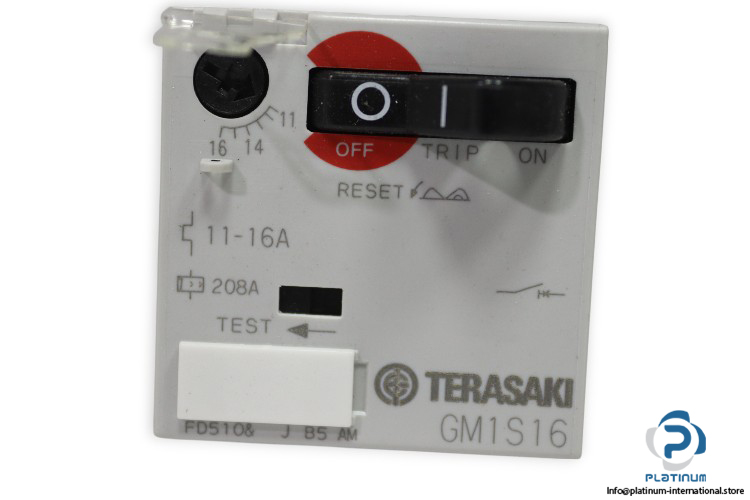

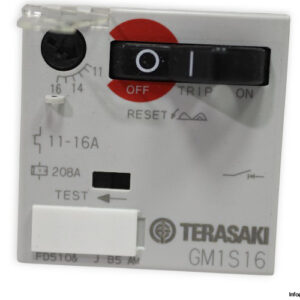

• Thermal Trip Adjustment Range: 11 to 16 A
• Magnetic Release Current: 208 A
• Power: 2.2 kW at 380“440 V AC
• Operational Short-Circuit Breaking Capacity (Ics): 25 kA at 415 V AC / 100 kA at 240 V AC

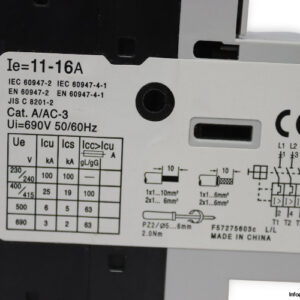

• Standards: IEC 60947-2, IEC 60947-4-1, EN 60947-2, EN 60947-4-1
• Dimensions: 45 × 90 × 66 mm
