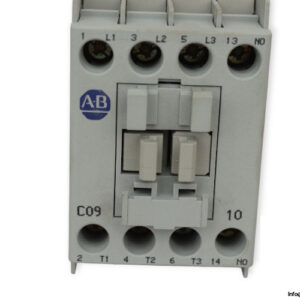

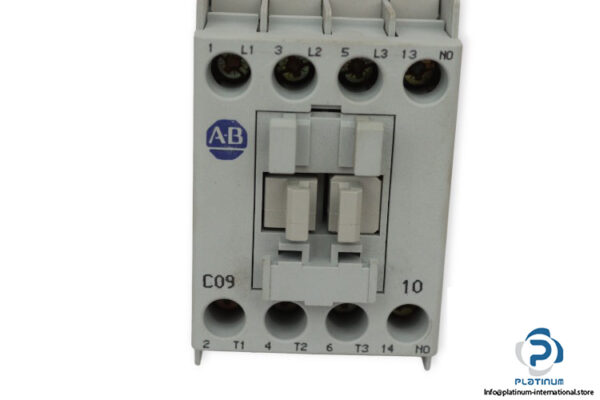

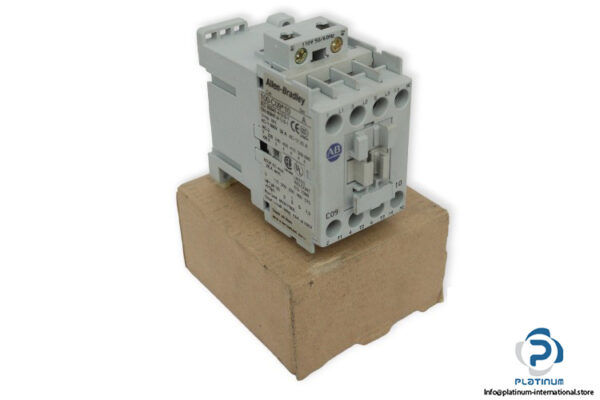

Allen-Bradley 100-C09KD10 A Contactor

The Allen-Bradley 100-C09KD10 A is a compact and reliable 3-pole contactor built for control and switching applications in industrial electrical systems. Designed with a wide operational voltage range, high switching current, and multiple mounting options, it ensures flexibility and safety in motor and power circuit control.

Manufacturer: Allen-Bradley
Type: Contactor
Model: 100-C09KD10 A

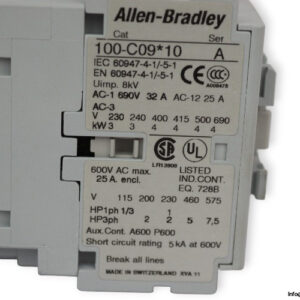

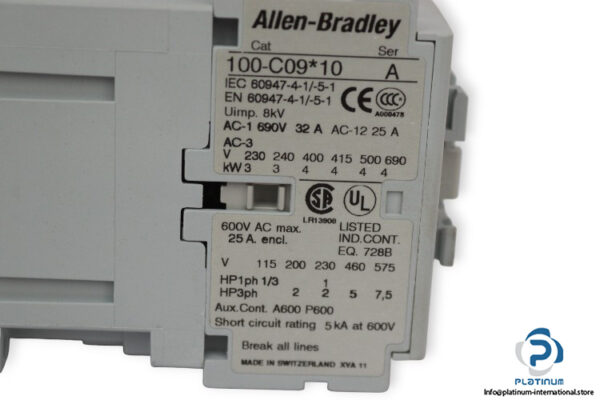

MNR: 100-C09*10
Series: 100-C

Technical Information

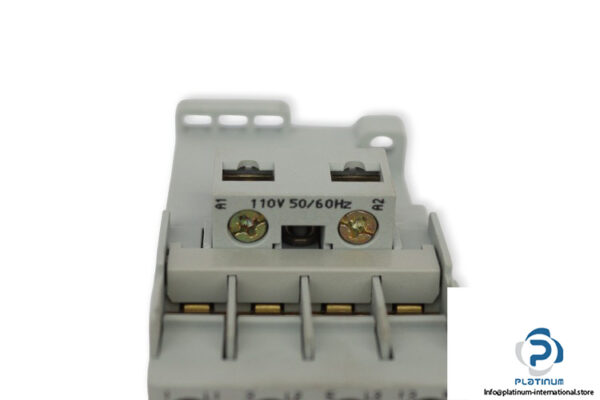

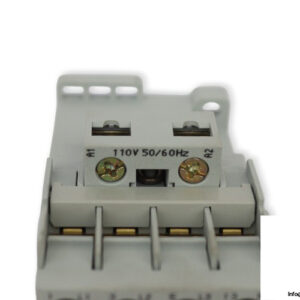

• Rated Coil Voltage: 110 V AC
• Frequency: 50/60 Hz
• Switching Current AC-1, 690V: 32 A
• Switching Current AC-12: 25 A
• Rated Impulse Withstand Voltage (Uimp): 8 kV
• Power Rating:
  “ 4 kW @ 415V/400V
  “ 4 kW @ 690V
  “ 2 hp (3-phase) @ 230V
  “ 5 hp (3-phase) @ 460V
• No. of Poles: 3 main poles
• Contact: 1 Normally Open Contact
• Electrical Connection: Screw Connection
• Mounting Method: DIN-rail / Screw
• Degree of Protection (IP): IP20
• Dimensions: 45 x 81 x 86.5 mm
