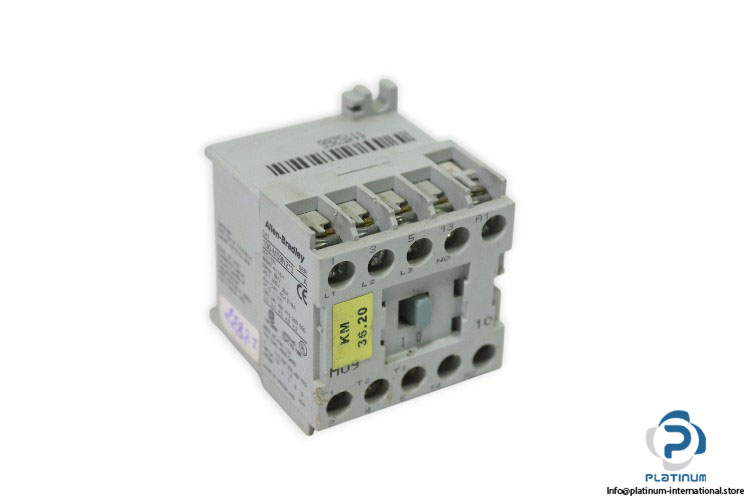

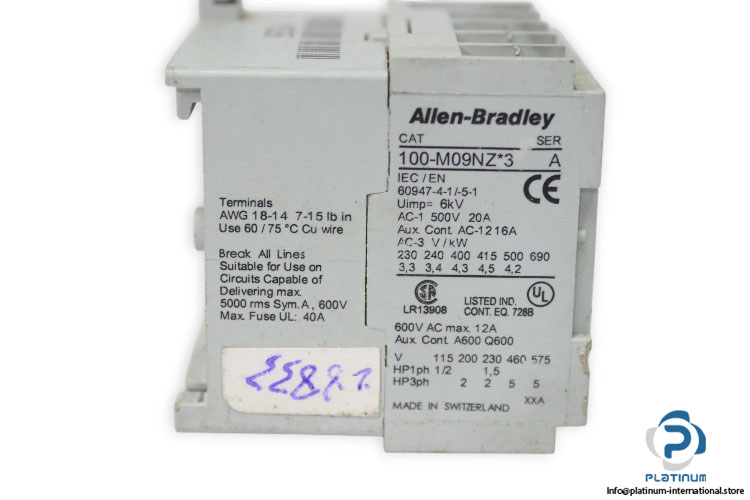

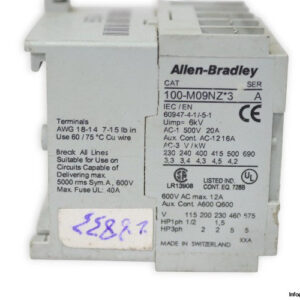

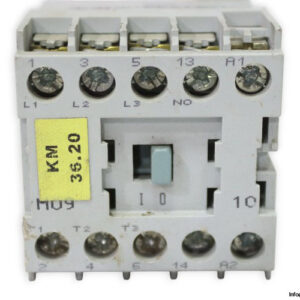

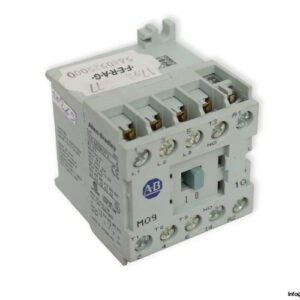

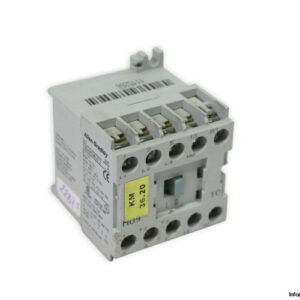

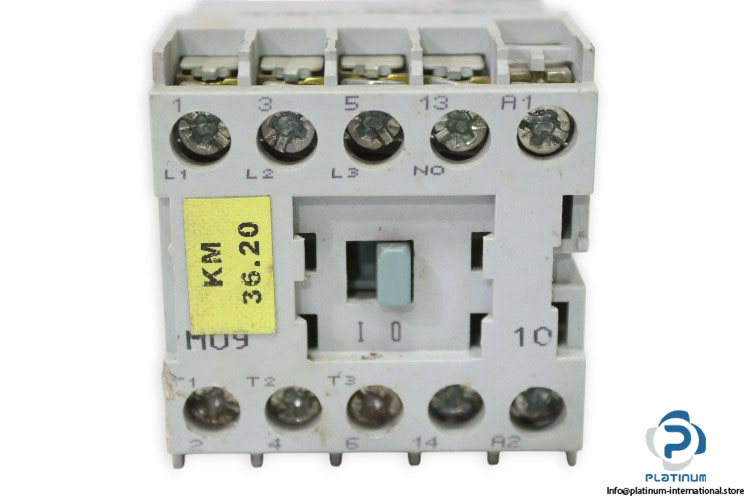

Allen-Bradley 100-M09NZ*3 Mini Contactor

The Allen-Bradley 100-M09NZ*3 Mini Contactor is a compact and reliable solution designed for motor control and industrial switching applications. Built with durability and compliance to international standards, it ensures dependable performance in demanding environments.

Manufacturer: Allen-Bradley
Type: Mini Contactor
Model: 100-M09NZ*3
Series: 100-M
Ser: A

Technical Information

• Rated Coil Voltage: 24 V DC
• Rated Operational Current AC-1, 500V: 20 A
• Rated Operational Current AC-12: 16 A
• Rated Impulse Withstand Voltage (Uimp): 6 kV
• Number of Poles: 3
• Frequency: 50/60 Hz
• Power Rating:
  4.3 kW @400V, 60°C
  4.5 kW @415V, 60°C
  5 Hp (3-phase) @460V
  2 Hp (3-phase) @230V
• Standard: IEC/EN 60947-4-1/-5-1
• Auxiliary Contact: 1 Normally Open Contact
• Dimensions: 31.5 x 67 x 78 mm
