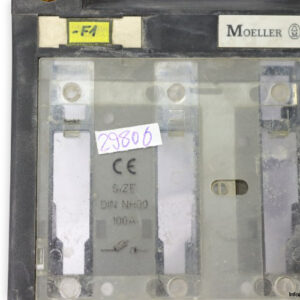

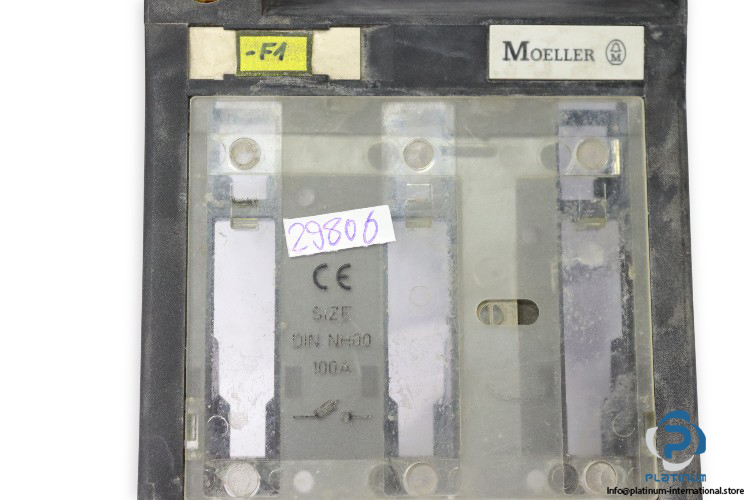

Klockner Moeller DIN NH00 NH Fuse Switch Disconnector

The Klockner Moeller DIN NH00 NH Fuse Switch Disconnector is a high-quality protective device designed for reliable power circuit disconnection and fuse protection. Built for industrial applications, it provides secure operation, durability, and safe isolation under heavy load conditions.

Manufacturer: Klockner Moeller
Type: NH Fuse Switch-Disconnector
Model: DIN NH00

Technical Information

• Rated Operational Voltage: 690 V AC
• Rated Operational Current Max.: 100 A
• Frequency: 50 / 60 Hz
• Fuse Size: NH00
• Poles No.: 3-Pole
• Material: Polyamide
• Ambient Temperature: -25 / 55 °C
• Dimension: 176 x 264 x 101 mm
