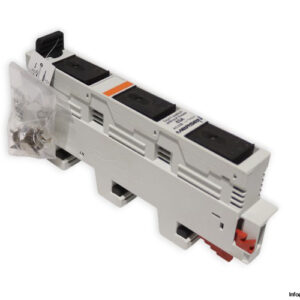

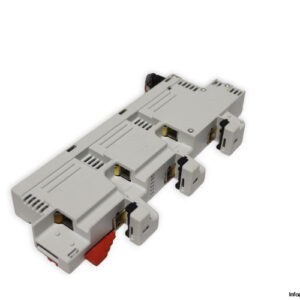

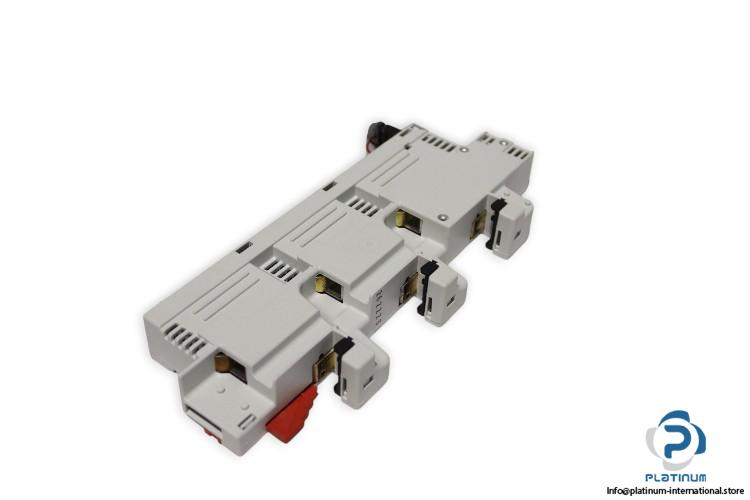

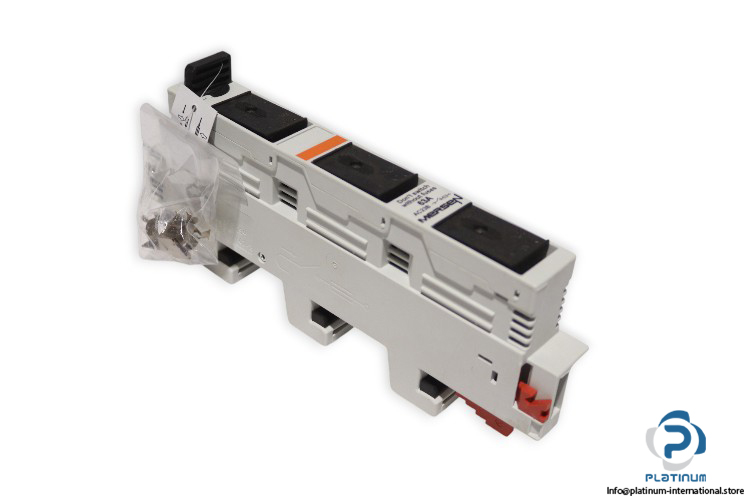

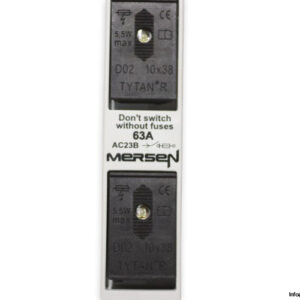

Mersen M1006399 C Fuse Switch Disconnector

The Mersen M1006399 C from the MULTIFIX 60 series is a robust DIN D0 switch disconnector engineered for reliable protection and safe power disconnection in industrial applications. With a compact 27 mm width and 3-pole switching design, it offers high efficiency and safety in demanding electrical environments.

Manufacturer: Mersen
Type: Fuse Switch Disconnector
Model: M1006399 C

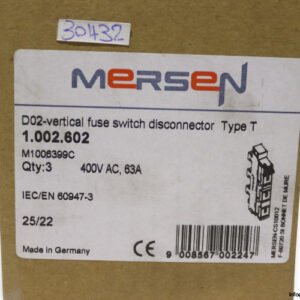

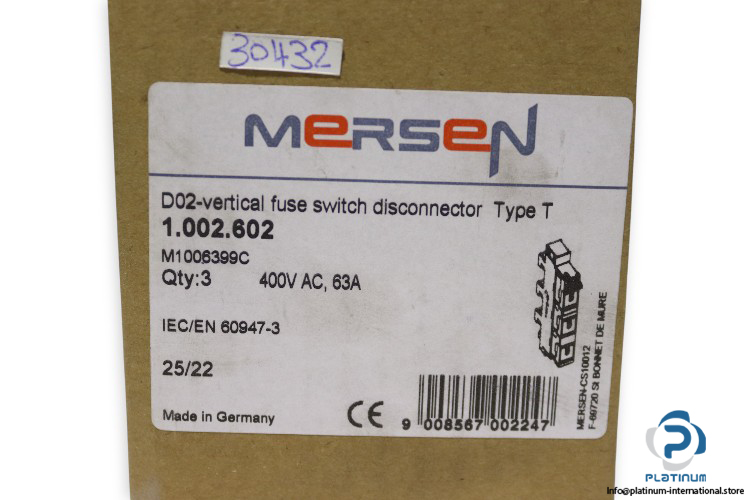

Part No.: 1002602
Series: MULTIFIX 60
SN: 9 008567 002247

Technical Information

• Type: T
• Description: DIN D0 Switch Disconnector MULTIFIX® Size D02 400VAC 63A 3-Pole Switching, Width 27 mm
• EAN/UPC Code: 9008567002247
• Rated Voltage AC IEC: 400 V
• Ampere Rating: 63 A
• Utilization Category: AC 22 B @ Ue = AC 400 V; Ie = 25 A
• Switchability: 3-Pole Switching
• Short Circuit Current Rating (SCCR): 50 kA @ Ue = AC 400 V; Ie = 63 A
• Fuse Size: D02
• Design Details: Cage Clamp
• Number of Poles: 3-Pole
• Degree of Pollution: 3
• Rated Impulse Withstand Voltage: 6 kV

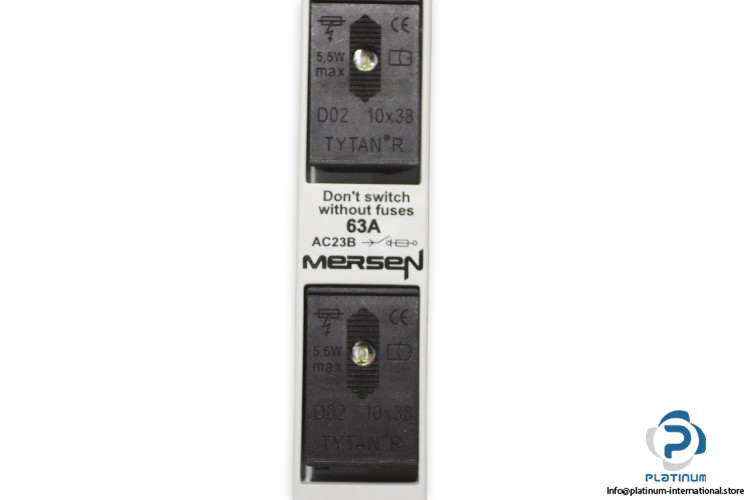

• Max Power Dissipation of Fuse Links Pn: 5.5 W
• Installation Mounting: Bus Bar Installation
• Product Width: 27 mm
• Product Length: 102 mm
• Product Height: 226 mm
