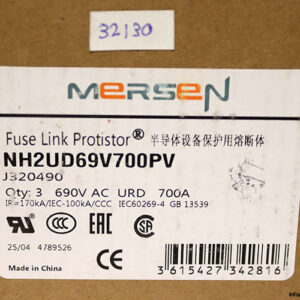

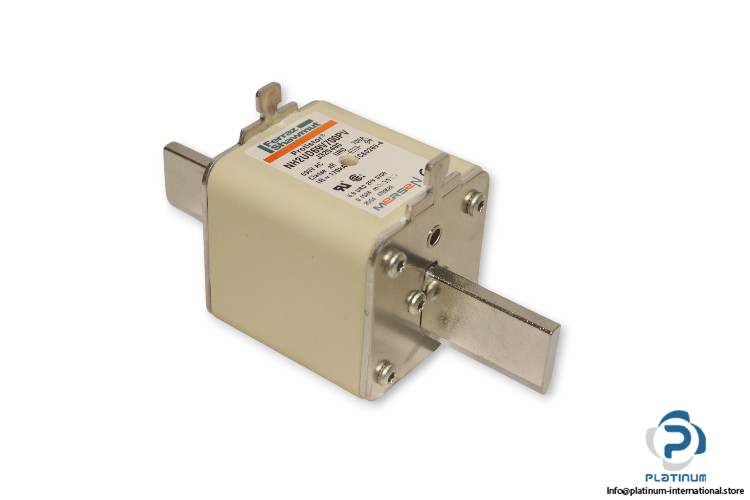

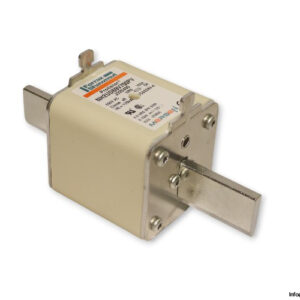

FERRAZ SHAWMUT MERSEN NH2UD69V700PV J320490 Fuse Link

The Ferraz Shawmut Mersen NH2UD69V700PV J320490 Fuse Link from the Protistor range is a high-performance semiconductor protection fuse designed to protect power converters and inverters. It offers excellent current limitation, high breaking capacity, and reliable performance in photovoltaic and industrial power applications.

Manufacturer: Ferraz Shawmut Mersen
Type: Fuse Link
Model: NH2UD69V700PV J320490
Alternative Model: 6.9 URD 2PV 0700
Part No.: 4789526

Technical Information

• Range: Protistor
• Size: NH2
• Rated Current: 700 A
• Supply Voltage: 690 V AC
• Breaking Capacity: 170/100 kA
• Operating Class: aR
• Connection: Plain Blades
• Dimensions: 74 x 150 x 52 mm
