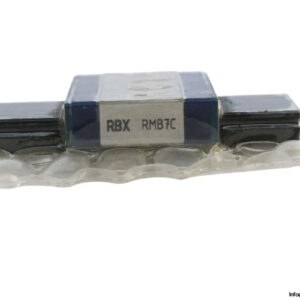

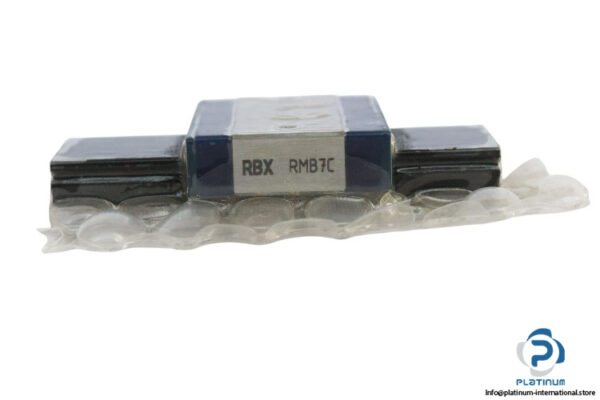

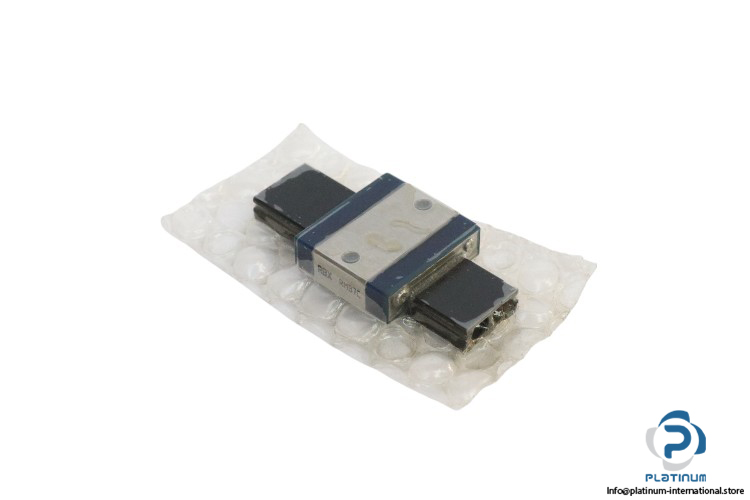

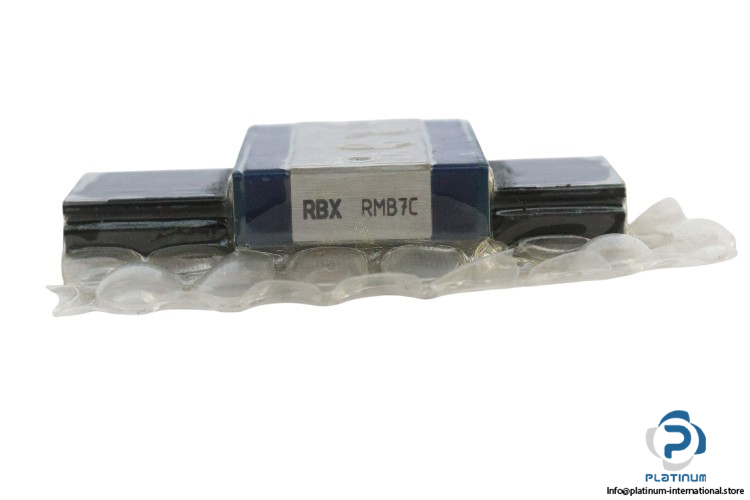

Mecaline RBX Linear Bearing Block RMB7 C
The Mecaline RBX RMB7 C is a high-quality linear bearing block designed for precision linear motion applications. With its compact and robust rectangular short-type design, it ensures reliable performance in industrial machinery and equipment requiring smooth and accurate linear movement.
🔧 Technical Specifications:
- Manufacturer: Mecaline RBX
- Type: Linear Bearing Block (Wide board)
- Model: RMB7 C
- Size: 7

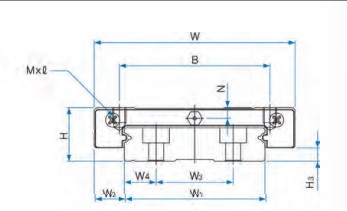

- Block Dimensions:
- Total Height M: 9 mm
- Block Height: 7 mm
- Block Width W: 25 mm
- Block Length L: 24 mm
- L1: 12.6 mm
- B: 19 mm
- Rail Dimensions:
- Rail Height: 5.5 mm
- Rail Width: 14 mm
- Block Type: C, Rectangular Short Type
- Mounting Holes: 2 Tapped Holes
- Basic Load Ratings:
- Dynamic (C): 1.102 kN
- Static (C‚€): 1.514 kN
Designed for versatility and durability, the Mecaline RBX RMB7 C linear bearing block is ideal for industrial applications requiring precision and reliability.
