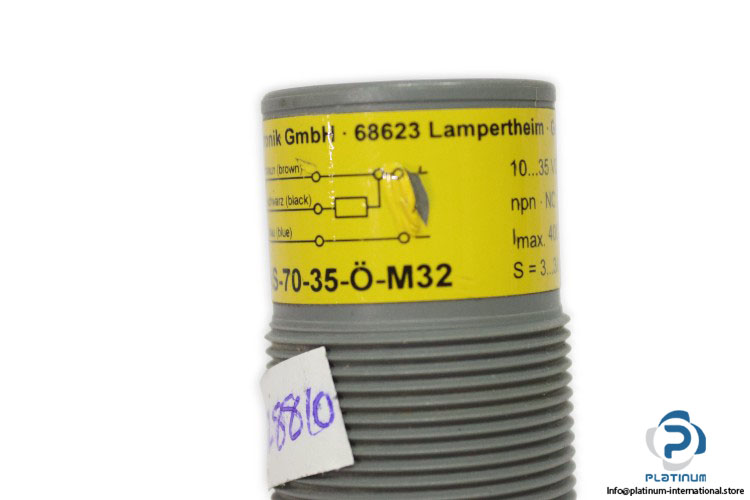

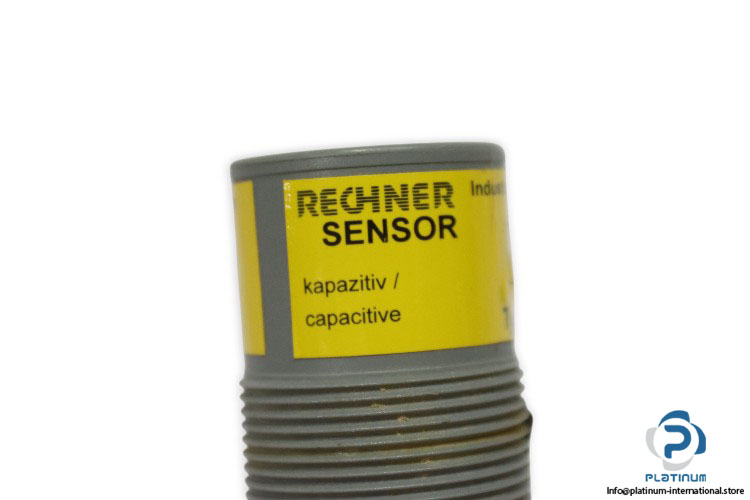

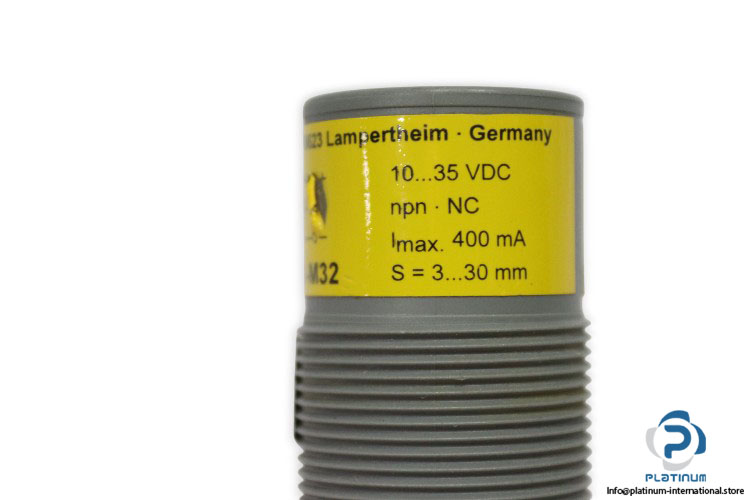

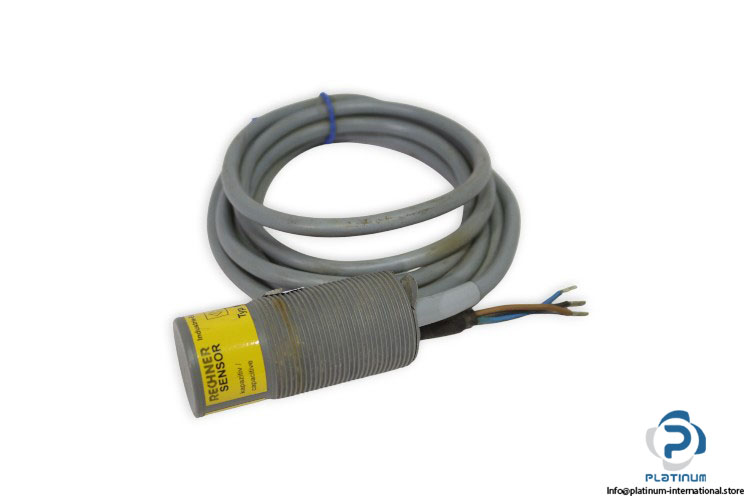

RECHNER KAS-70-35-O-M32 Capacitive Sensor

The RECHNER KAS7035OM32 is a robust capacitive sensor engineered for precise detection in industrial automation. Designed with a durable nickel brass housing and IP67 protection, it offers reliable operation in demanding environments.

Manufacturer: RECHNER
Type: Capacitive Sensor
Model: KAS-70-35-O-M32
Part No.: C18000052

Technical Information

• Sensing Range: 3 / 30 mm
• Rated Supply Voltage (Us): 10 / 35 V DC
• Switching Output: NPN Normally Closed (CO)
• Switching Output Current: 400 mA
• Actuation Type: Instantaneous
• Electrical Connection: 4x 0.5 PVC Cable 2 m
• Housing Material: Nickel brass
• Sensor Length, Diameter: 70 mm, 32 mm
• Protection Class: IP67
• Ambient Temperature: -25 / 70 °C
