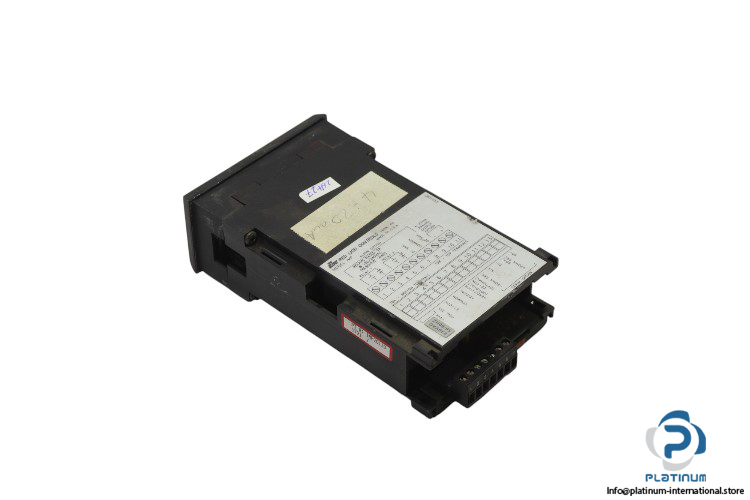

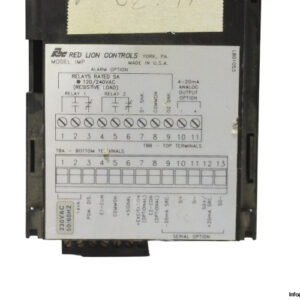

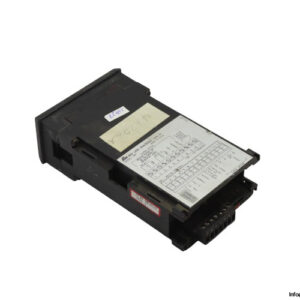

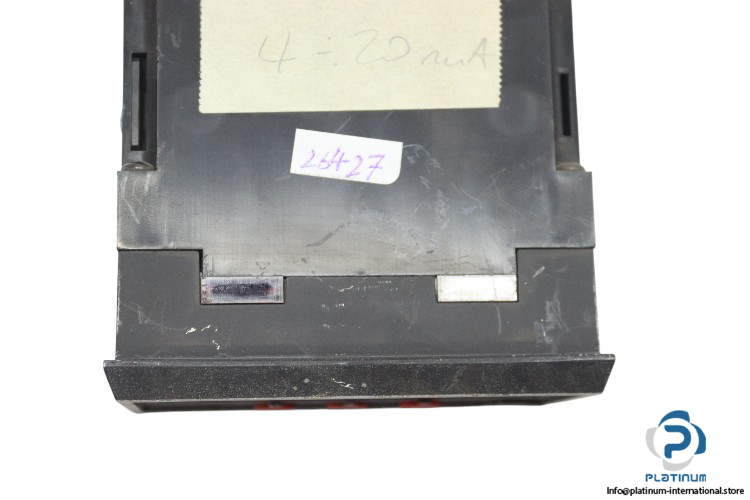

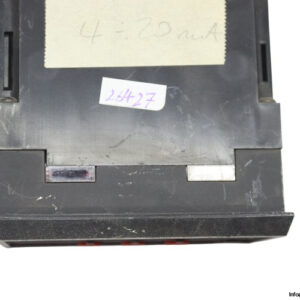

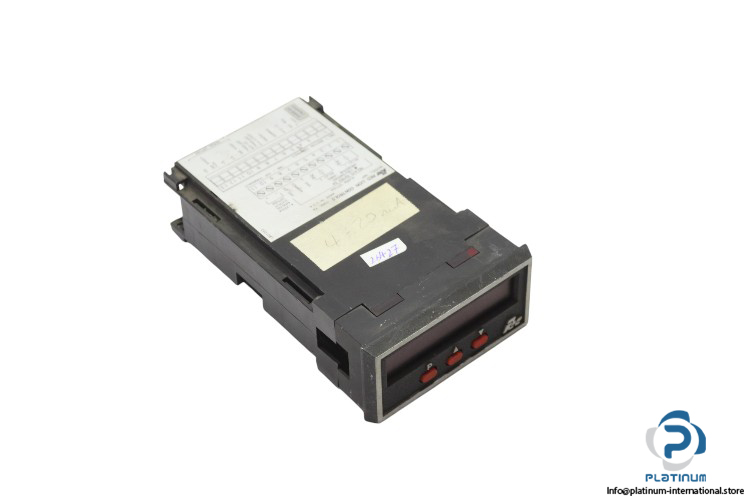

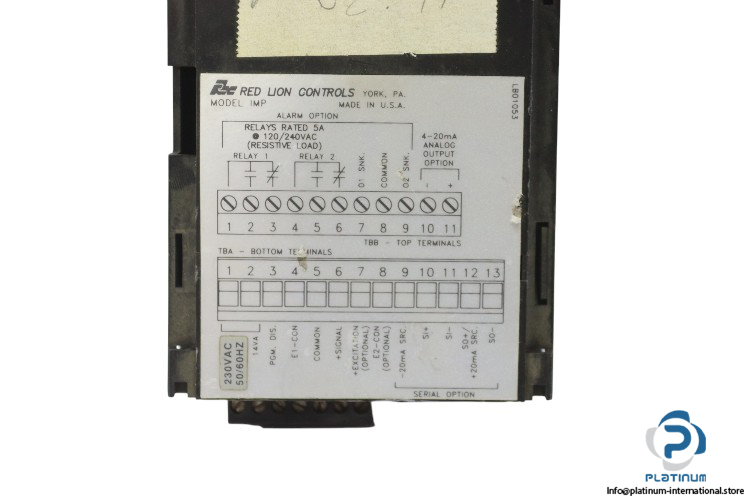

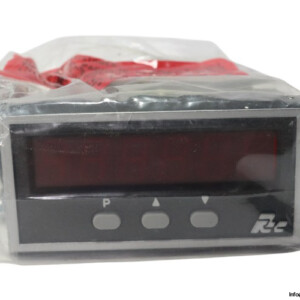

RED Lion Controls IMP “ Process Controller
The RED Lion Controls IMP process controller is a versatile and reliable control system for industrial and process automation applications. With multiple programmable features and a wide input range, it is designed to provide efficient performance in various operational environments.
- Manufacturer: RED Lion Controls
- Type: Process Controller
- Model: IMP
- MNR: LB01053
Technical Information:
- Supply Voltage: 230 V AC
- Frequency: 50/60 Hz
- Power: 14 VA
- Working Voltage: 300 V max
- Max. Alarm Relay Rating: 5 A @ 120/240 V AC
- Controls: Three front panel push buttons
- Signal Input Range: 0 to 50 mA DC (4 to 20 mA)
- Input Impedance: 10 ohm, 0.2 VDC @ 20 mA
- Max. Input Current: 200 mA DC (continuous)
- Programmable Display Reading Range: -99,999 to 999,999
- Reading Rate: 2.5 readings/second
- Response Time: 2 seconds
- Normal Mode Rejection: 40 dB at 50/60 Hz
- Common Mode Rejection: 120 dB, DC to 50/60 Hz
- Operating Temperature Range: 0 to 50°C
