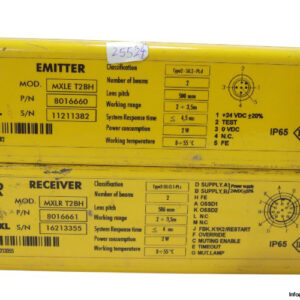

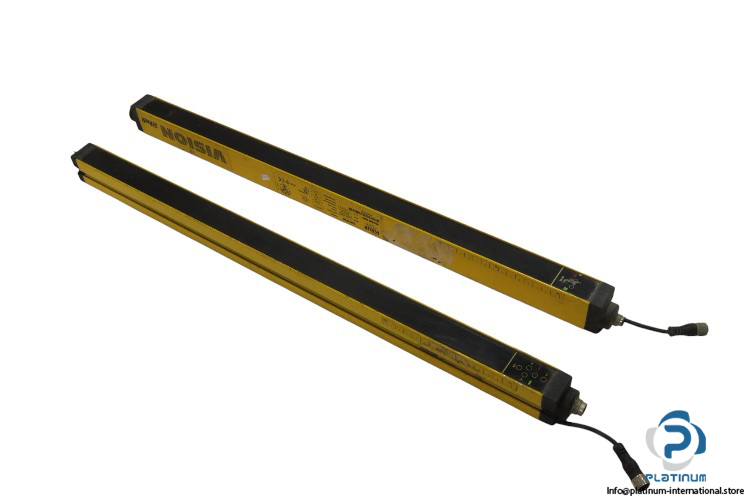

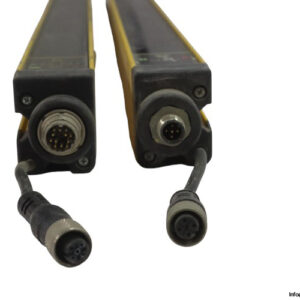

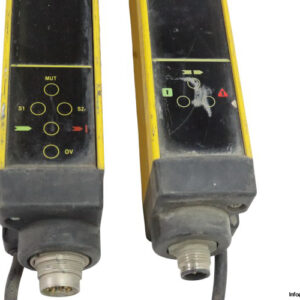

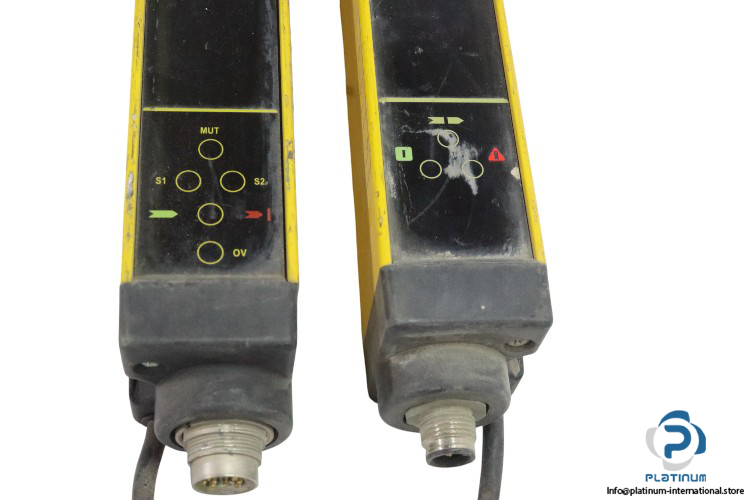

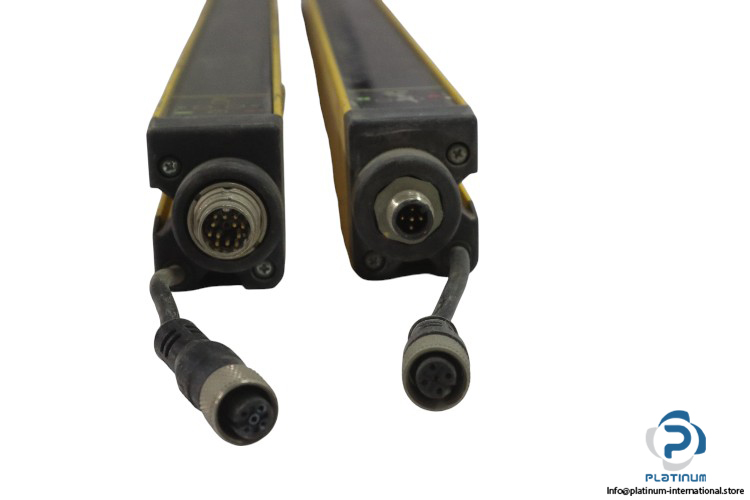

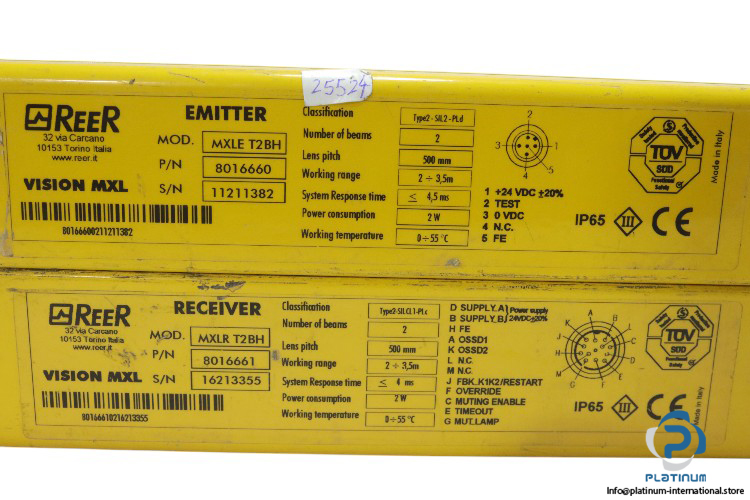

REER MXLR T2BH Receiver Muting Arms

The REER MXLR T2BH (Part No. 8016661) is a receiver muting arm unit designed for use in safety light curtain systems, providing reliable detection and muting functionality. Designed to operate in conjunction with the matching MXLE T2BH emitter arms, it ensures effective area protection in automation and safety-critical applications.

• Manufacturer: REER
• Type: Receiver Muting Arms
• Model: MXLR T2BH
• Part No.: 8016661

Technical Information:

• Power Supply: 24VDC
• Power Consumption: 2W
• Number of Beams: 2
• Lens Pitch: 500 mm
• Working Range: 2 – 3.5 m
• System Response Time: 4 ms
• Degree of Protection: IP65
• Working Temperature: 0 … 55 °C

Attachment:

REER MXLE T2BH Emitter Muting Arms

• Manufacturer: REER
• Type: Emitter Muting Arms
• Model: MXLE T2BH
• Part No.: 8016660
• Power Supply: 24VDC
• Power Consumption: 2W
• Number of Beams: 2
• Lens Pitch: 500 mm
• Working Range: 2 – 3.5 m
• System Response Time: 4.5 ms
• Degree of Protection: IP65
• Working Temperature: 0 … 55 °C
