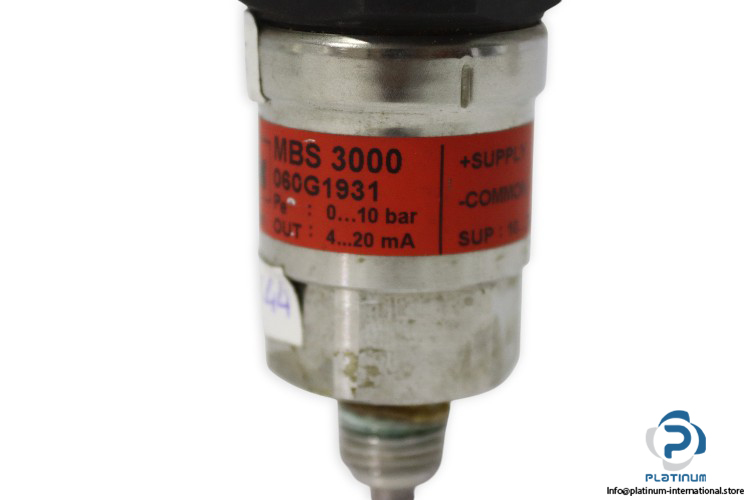

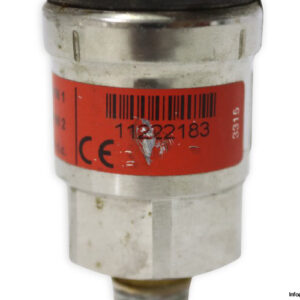

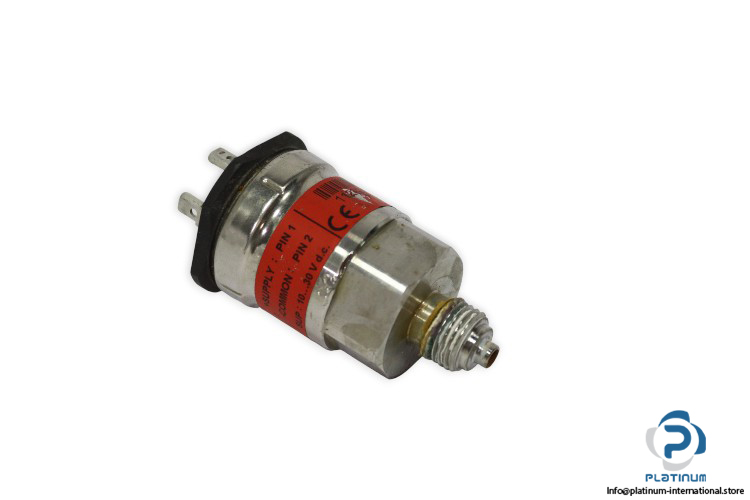

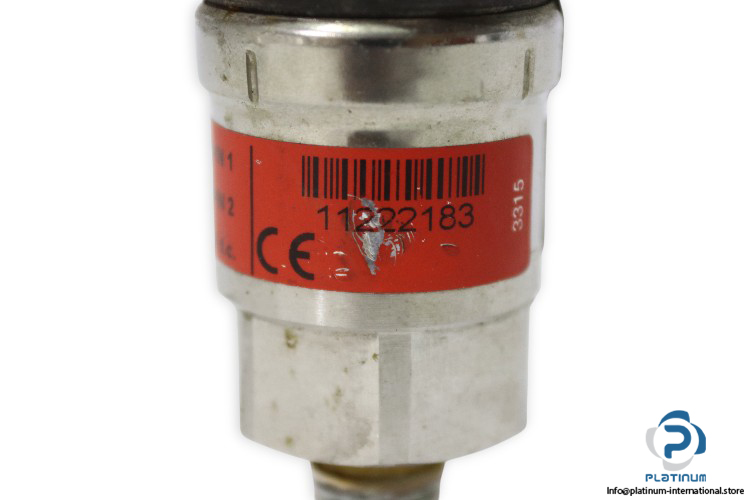

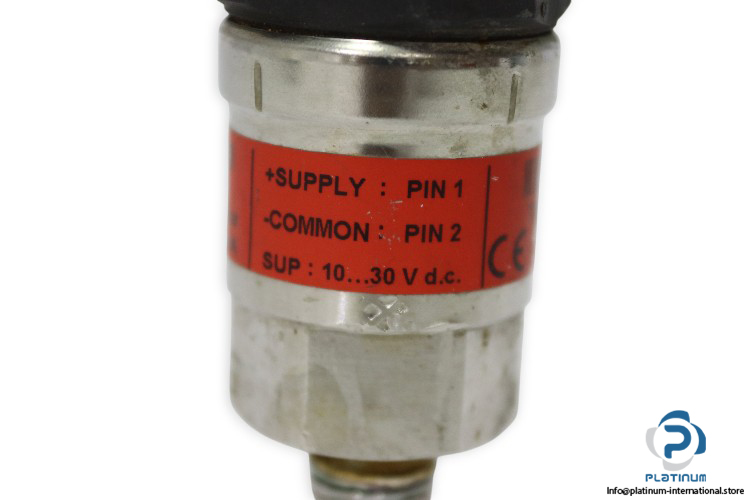

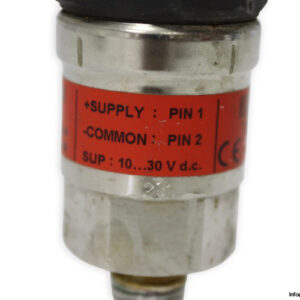

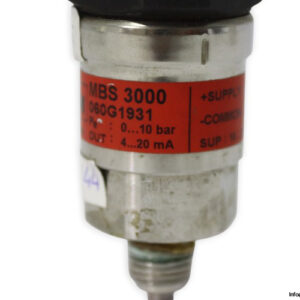

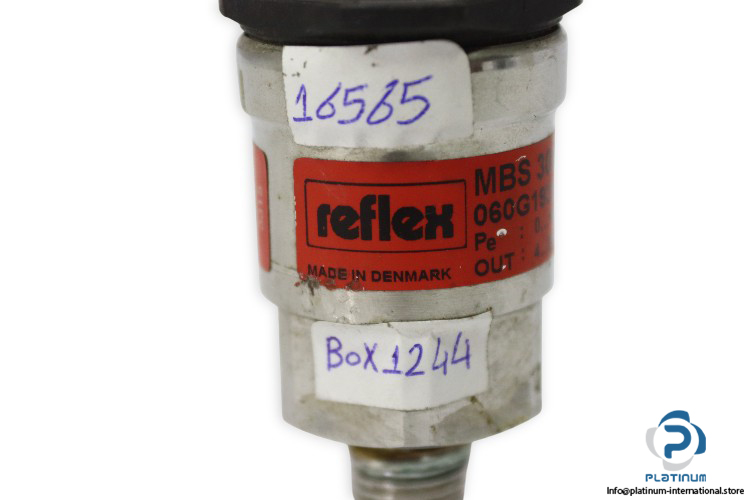

REFLEX MBS 3000 Pressure Transmitter
The REFLEX MBS 3000 Pressure Transmitter is a high-quality industrial sensor designed for accurate pressure measurement in hydraulic, pneumatic, and process systems. Built with stainless steel materials, it provides long-term stability, corrosion resistance, and reliable analog signal output for precise control and monitoring.
Manufacturer: REFLEX
Type: Pressure Transmitter
Model: MBS 3000
Part Number: 060G1931
Serial Number: 11222183
Code: 3315
Technical Information
- Materials: Wetted parts EN 10088-1; 1.4404 (AISI 316 L)
- Enclosure: EN 10088-1; 1.4404 (AISI 316 L)
- Pressure Range (Pe): 0 to 10 bar
- Output Signal: 4 to 20 mA
- Supply Voltage (SUP): 10 to 30 V DC
- Electrical Connection: 2 pin
- Pressure Connection: Male thread standard G1 by 4
- Ambient Temperature Range: minus 40 to 85 degree Celsius
