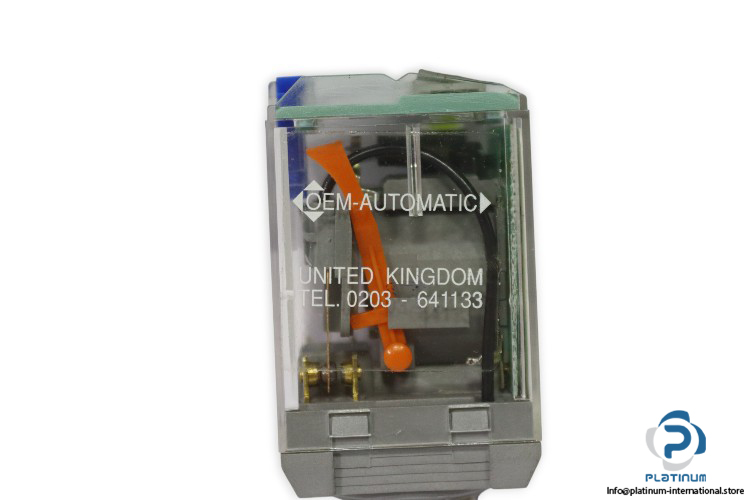

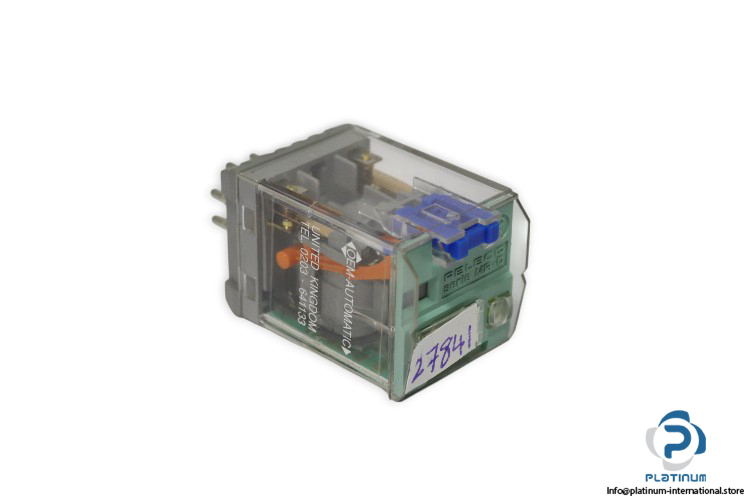

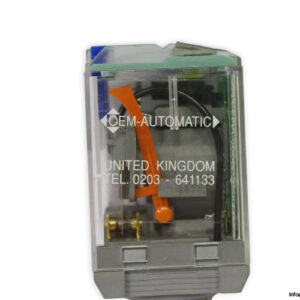

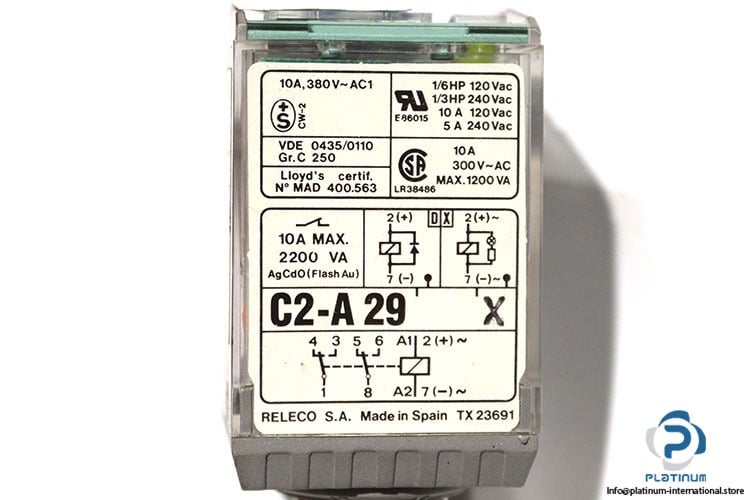

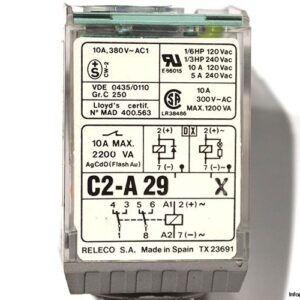

RELECO C2-A29 RELAY “ MR-C SERIES

This high-performance relay from Releco / OEM-Automatic is designed for industrial switching tasks, offering precise control, gold-flashed contacts, and robust mechanical endurance. Suitable for various voltage and current loads, the C2-A29 model ensures long-lasting performance in demanding automation environments.

Manufacturer: Releco / OEM-Automatic
Type: Relay
Model: C2-A29

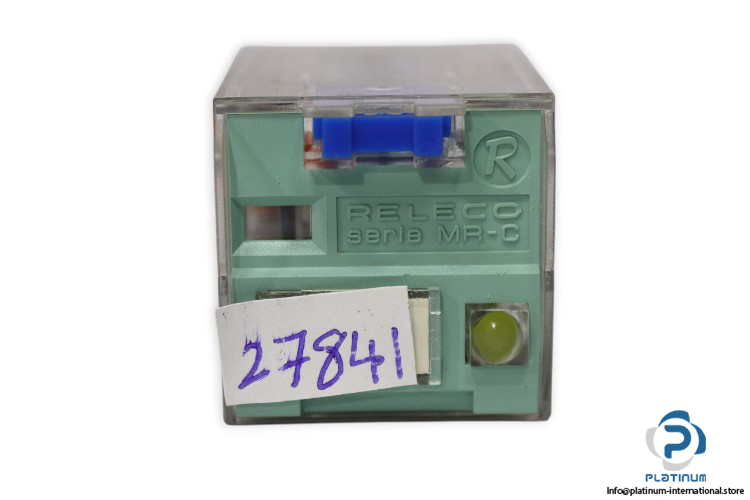

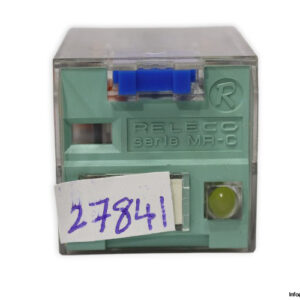

Series: MR-C
Code: 0203-641133 / TX 23691

Technical Information

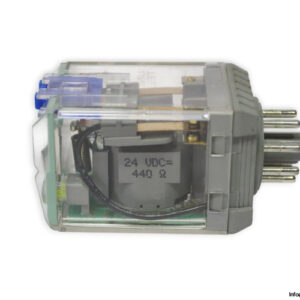

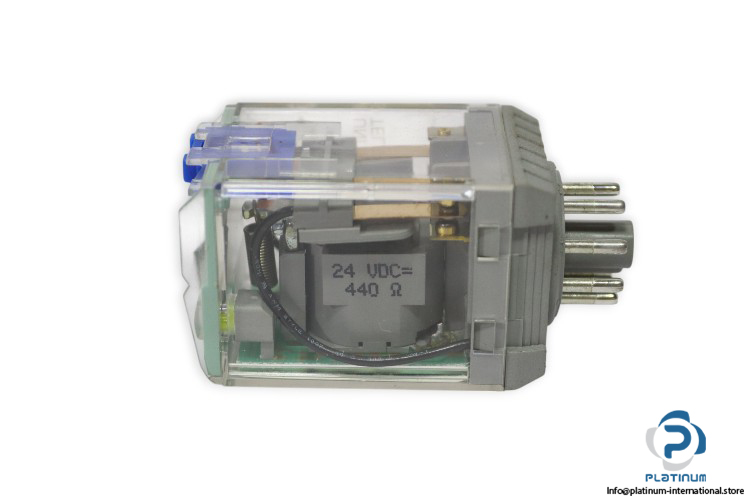

• Voltage: 24 V DC
• Resistance: 440 ohms
• Power: 2200 VA
• Rated Current: 10A @ 380V – AC1 / 10A @ 120V / 5A @ 240V AC
• Horse Power: 1/6 HP @ 120 Vac / 1/3 HP @ 240 Vac
• Max Current: 10 A @ 300 V AgCdO (Flash Au), MAX. 1200 VA

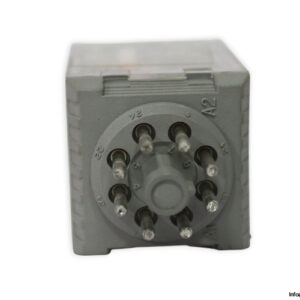

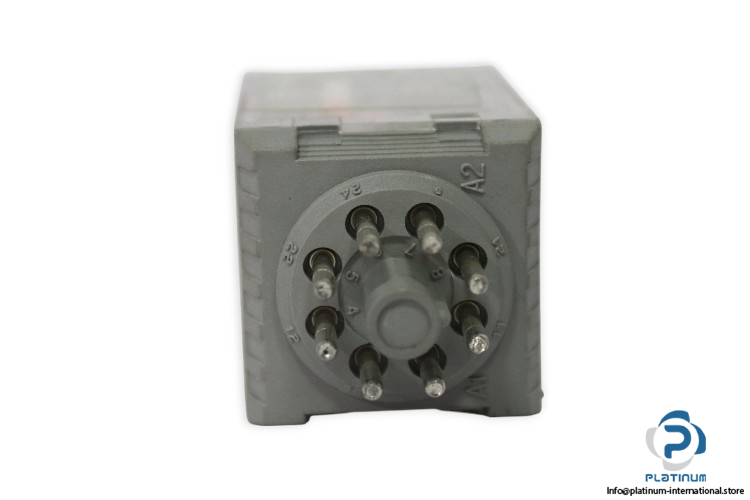

• No of Pins: 8
• No of Poles: 2
• Contact Material: Gold-flashed contact, 0.2μ Au
• Operate Time + Bounce: 16 ms / ‰¥ 3 ms
• Release Time + Bounce: 8 ms / ‰¥ 1 ms
• Protection Degree: IP40
• Ambient Temperature: -40°C (no ice) to 60°C / -40°C to 80°C (storage)
