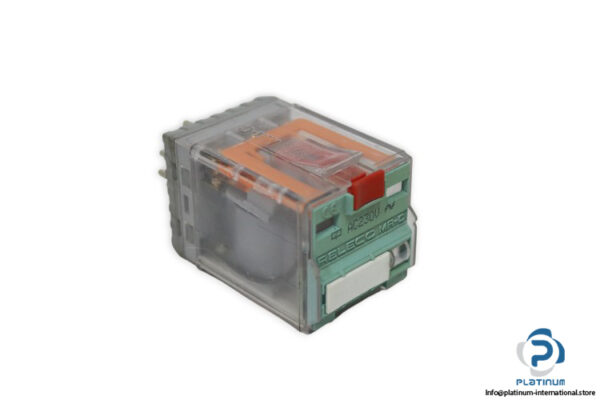

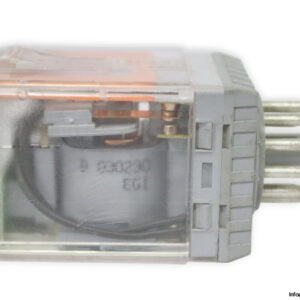

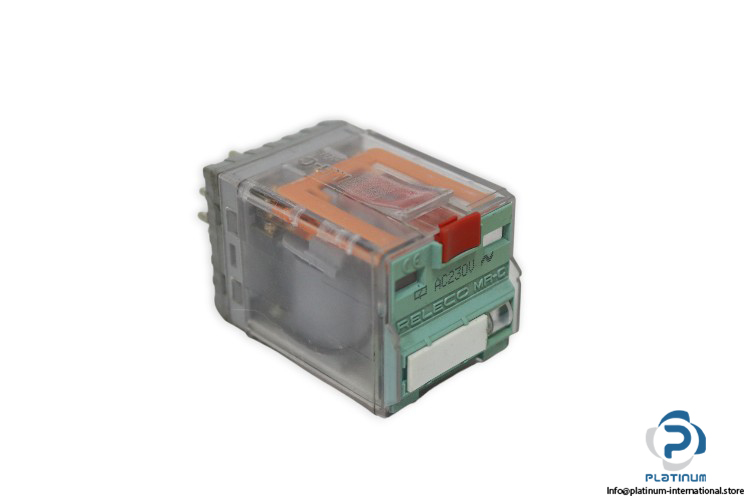

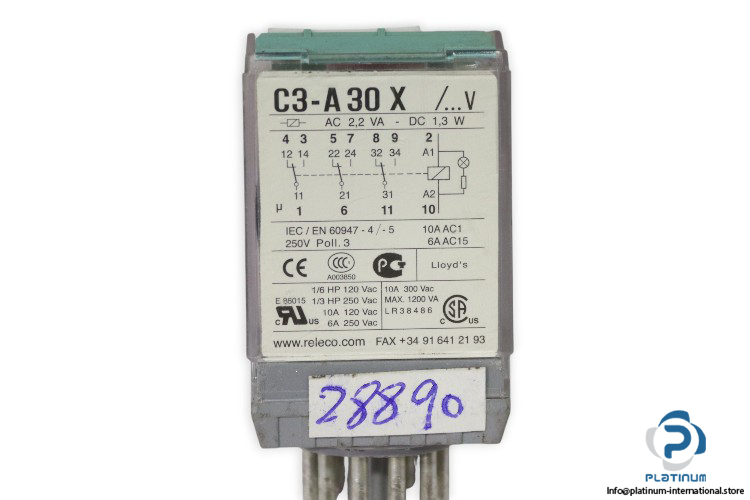

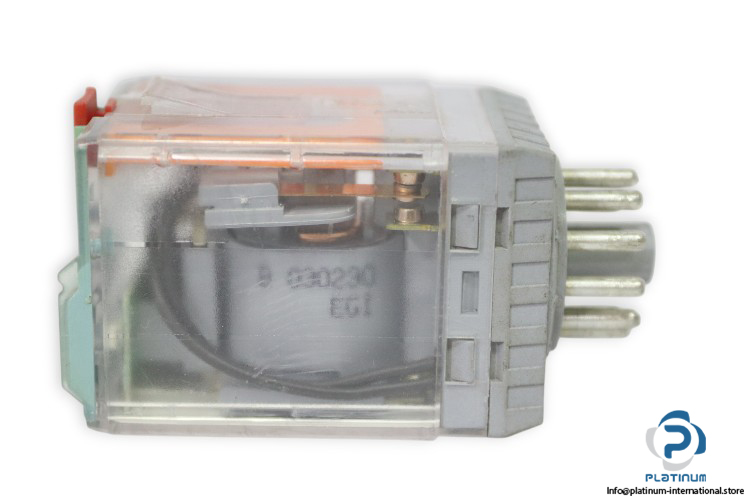

Releco C3 A 30 X Industrial Relay (MR-C Series)

The Releco C3 A 30 X is a high-quality industrial relay from the MR-C series, designed for reliable performance in demanding control and automation applications. With 11-pin connection, versatile contact configuration, and durable construction, it ensures dependable switching capacity and long service life.

Manufacturer: Releco
Type: Industrial Relay
Model: C3 A 30 X / / V
Code: LR38486 / 9030290 EC1
Series: MR-C

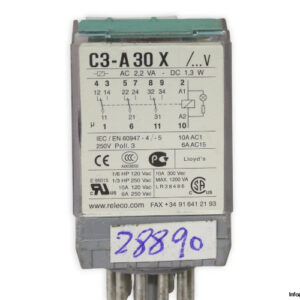

Technical information

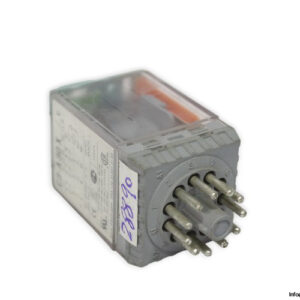

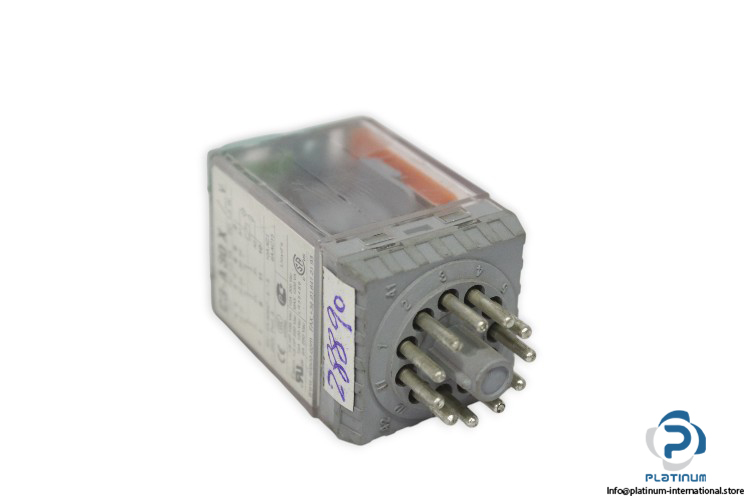

• No. of Pin: 11-pin

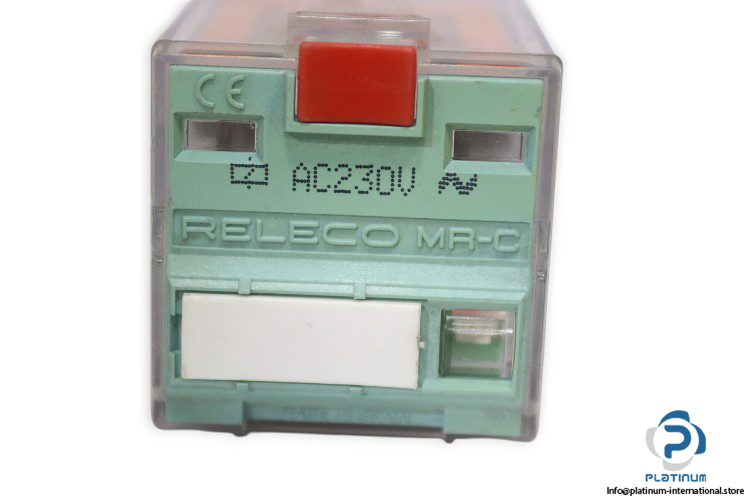

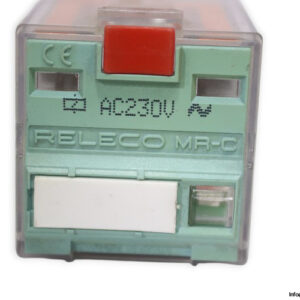

• Supply Voltage: 230 V AC
• Power: 2.2 VA (AC), 1.3 W (DC)
• Max Power: 1200 VA @ 10 A and 300 V AC
• Contact Configuration: 3 Changeover (CO)
• Contact Voltage: 250 V AC @ 6 A / 120 V AC @ 10 A
• Horse Power: 1/6 HP @ 120 V AC, 1/3 HP @ 250 V AC
• Contact Current: 10 A AC1 / 6 A AC15
• No. of Poles: 3
• Operating Temperature: -40 / +70 °C
• Dimensions: 52 x 35 x 35 mm
