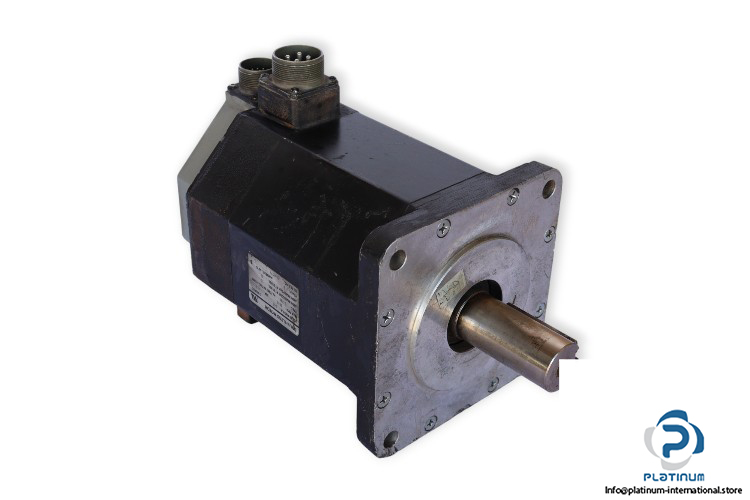

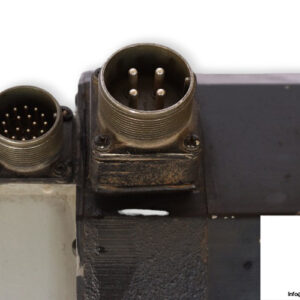

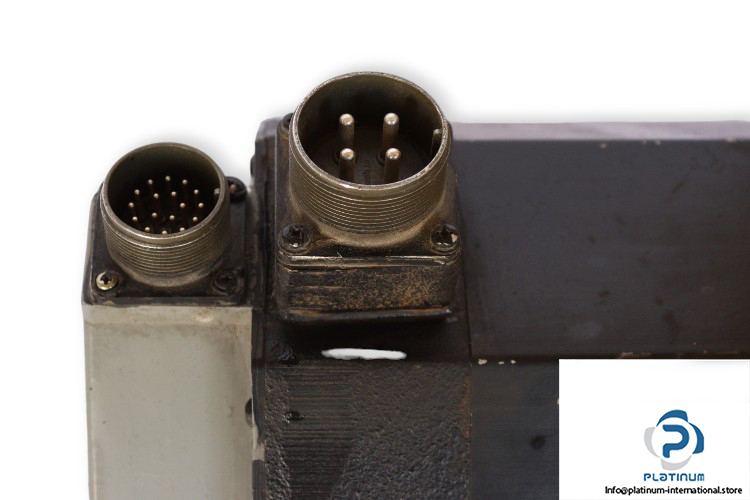

RELIANCE ELECTRIC F-6100-R-H00AA BRUSHLESS MOTOR
The RELIANCE ELECTRIC F-6100-R-H00AA is a high-performance brushless motor engineered for industrial automation requiring stable torque output and high-speed accuracy. It features medium inertia, precise feedback via a 2000-line encoder, and is optimized for demanding environments.

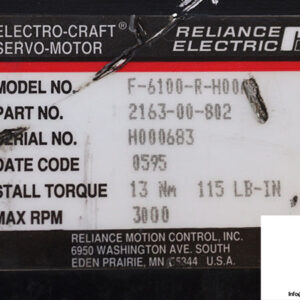

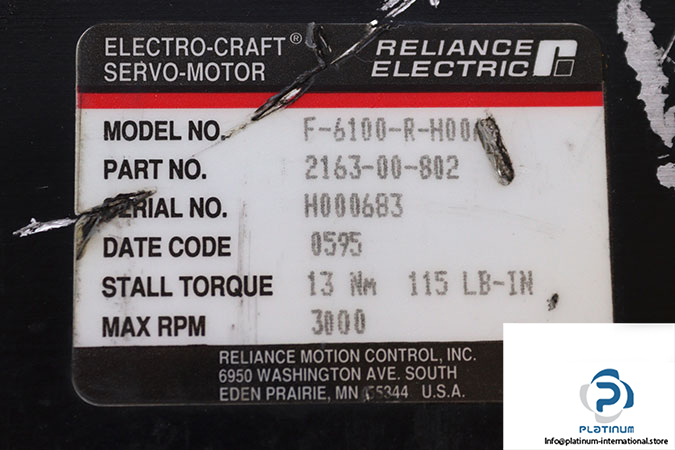

Manufacturer: RELIANCE ELECTRIC
Type: Brushless Motor
Model: F-6100-R-H00AA
Serial Number: H000683
Part Number: 2163-00-802
Ref No: 0595 / E146578
Technical Information
- Frame Size: 6100
- Series Designator: F, Medium Inertia

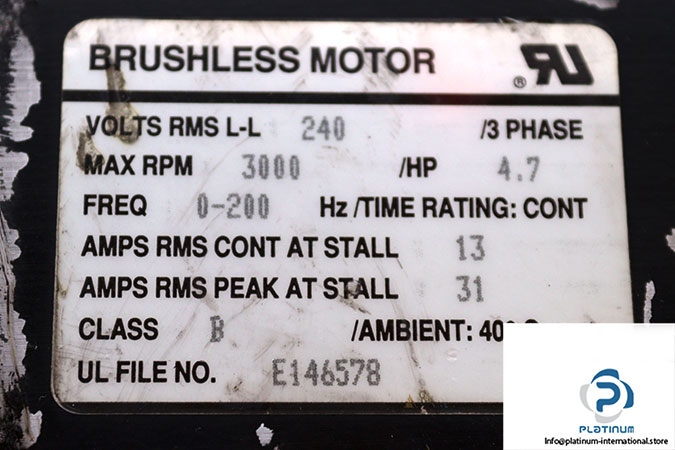

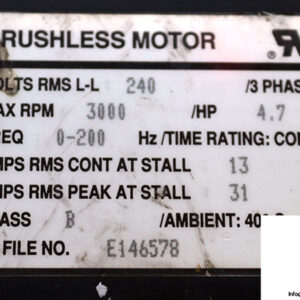

- Rated Voltage: 240 V
- Horse Power: 4.7 Hp
- Continuous Stall Current: 13 A
- Peak Stall Current: 31 A
- Rotor Moment of Inertia: 0.0064 kg-m²
- Stall Torque: 13 Nm / 115 lb-IN
- Damping: 0.16 Nm/krpm
- Friction Torque: 0.17 Nm
- Max Speed: 3000 rpm
- Frequency: 0“200 Hz
- Sine Wave Torque Constant: 0.71 Nm/A
- Square Wave Torque Constant: 0.78 Nm/A
- Voltage Constant: 86 V/krpm
- Thermal Resistance: 0.45°C/Watt
- Number of Poles: 8
- Ambient Temperature: 40°C
- Insulation Class: B
- Optical Encoder Line Count: H, 2000 (Standard)
- Supply Voltage: 5 VDC
- Supply Current: 250 mA
- Max. Line Driver: 26LS31
- Line Driver Output: TTL
