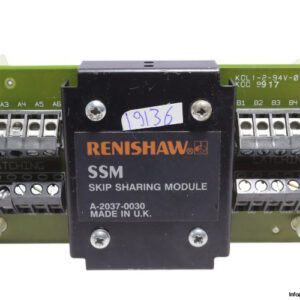

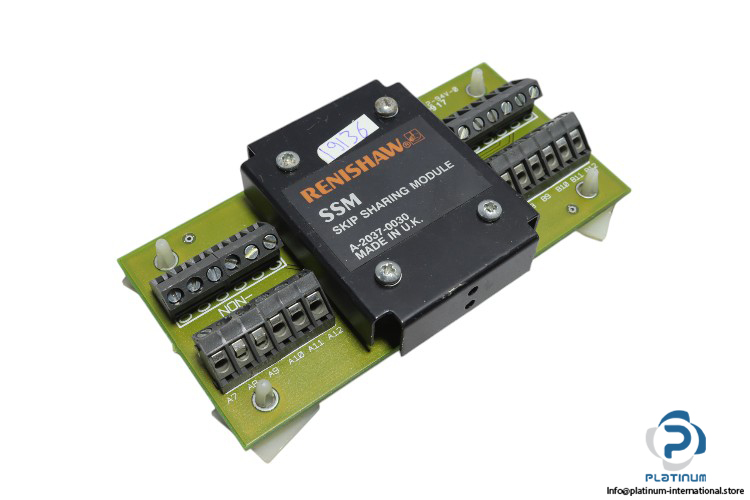

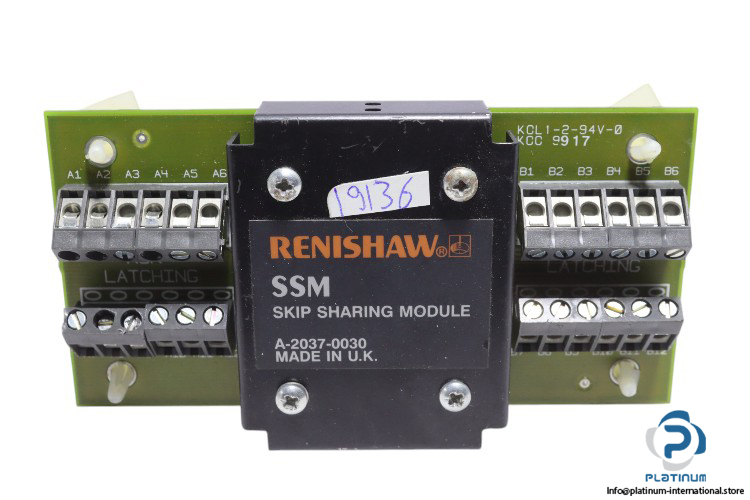

Renishaw M-2037-0041-0B Skip Sharing Module (SSM)
The Renishaw M-2037-0041-0B Skip Sharing Module (SSM) is a precision electronic interface designed for accurate relay control in automated measurement and inspection systems.
Manufacturer: Renishaw
Type: Skip Sharing Module (SSM)

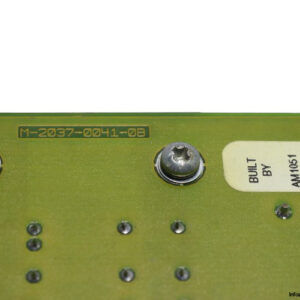

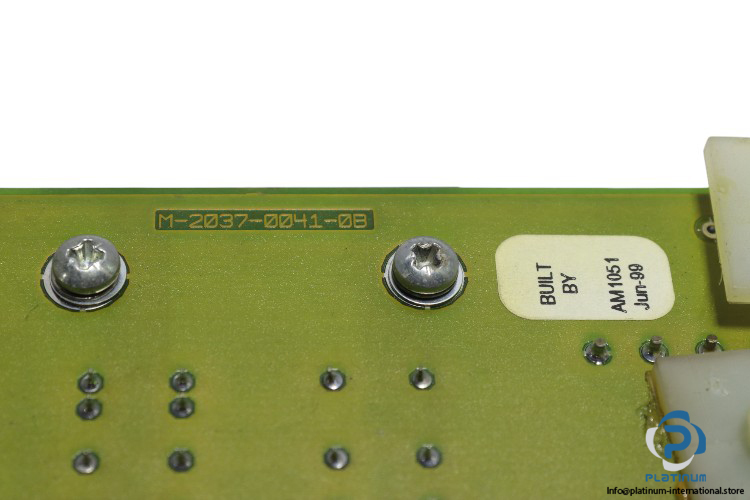

Model: M-2037-0041-0B
Part No.: A-2037-0030 / KCL1-2-94V-0 / KCC 9917
Technical Information
- Relay Specifications:
- Non-Latching Relay:
- Nominal Coil Power: 200 mW
- Contact Rating: 1 A at 30 VDC
- Coil Voltage: 16.8 VDC to 36 VDC
- Latching Relay:
- Nominal Coil Power: 180 mW
- Contact Rating: 1 A at 30 VDC
- Coil Voltage: 16.8 VDC to 36 VDC
