Manufacturer: REVERE TRANSDUCERS

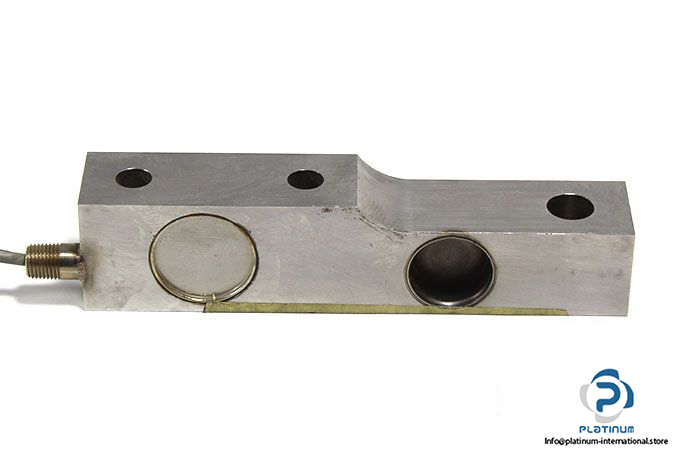

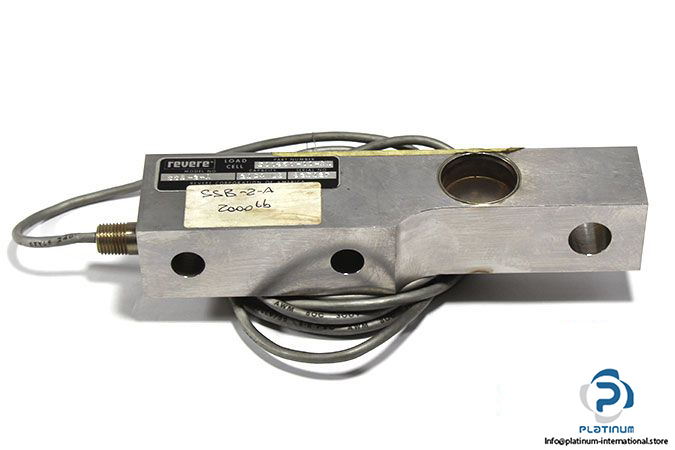

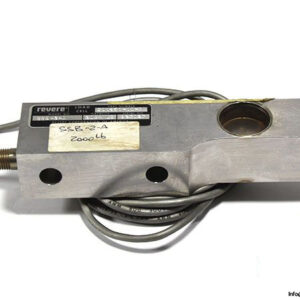

Type: Single-Ended Shear Beam Load Cell

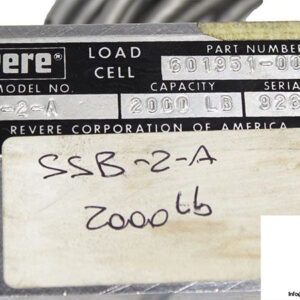

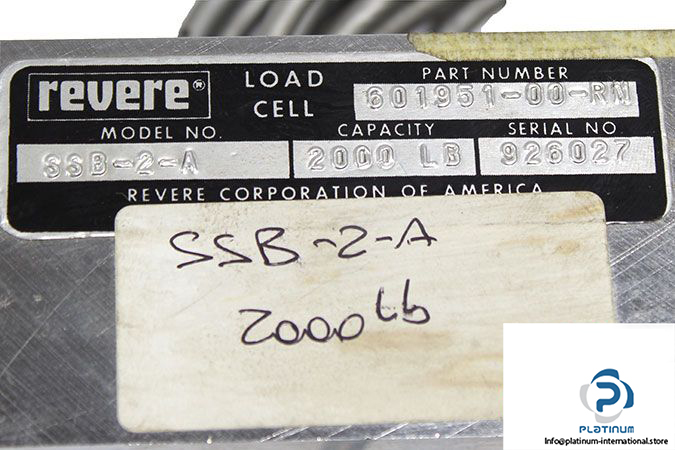

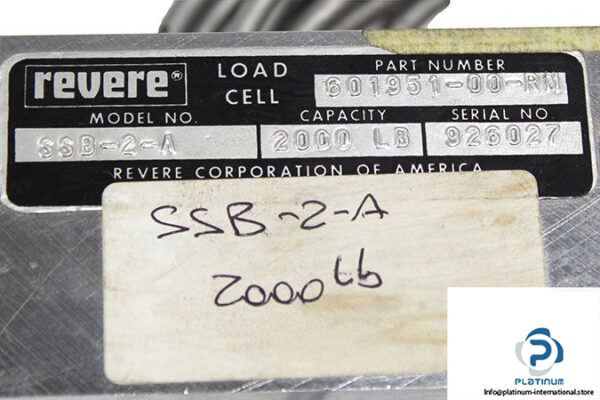

Model: SSB-2-A

Part No: 601951-00-RN

FEATURES

• Capacities: 907 kg
• Fully Welded, Stainless Steel Construction
• Hermetically Sealed, IP66 And IP68
• Certified to OIML R-60, 4000d And NTEP 10000d
• Current Calibration Output (SC Version) Ensures Easy and Accurate Parallel Connection of Multiple Load Cells
• Digital Version Available (Model SBC)
• Optional


  • ATEX- EEx Ib IIC T6 Hazardous Area Approval
  • FM Approval Available

Applications

• Platform Scales
• Belt Scales
• Pallet Scales
• Overhead Track Scales
• On-Board Weighing
• Silo Hopper Weighing

Maximum weight limit (E max): 907 kg (2000 lb)

Rated Output: 2 mV/V

Excitation Voltage: 5…15 V

Max. Excitation Voltage: 18 V DC

Operating Temperature: -40…80 °C

Element Material: Stainless Steel 1.4542

Protection Class: IP66 & IP68

Weight: 2.00 kg
