Manufacturer: REXNORD

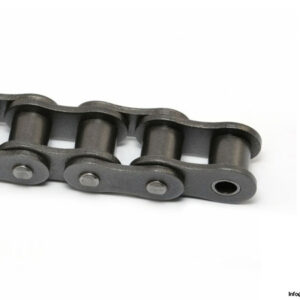

Type: Simplex Roller Chain
Model: 08B-1

DIN/ISO 606
Chain no. 08B-1

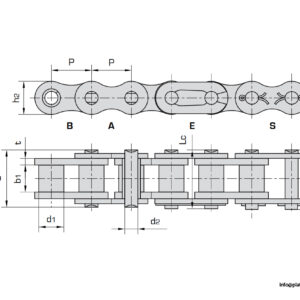

PitchP: 12.7 mm
Roller diameter d1: 8.51 mm
Width between inner plates b1: 7.75 mm
Pin diameter d2 max/L max: 4.45/16.70 mm
Pin length Lc max: 18.2 mm
Plate thickness T: 1.6mm
Ultimate tensile strength Q min: 18.0/4091 kN/lbf
Average tensile strength Q0: 19.4 kN
Weight per meter q: 0.69 kg/m
