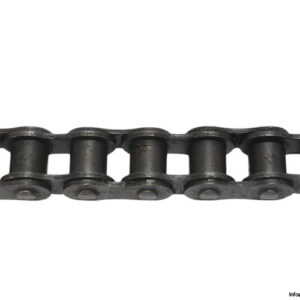

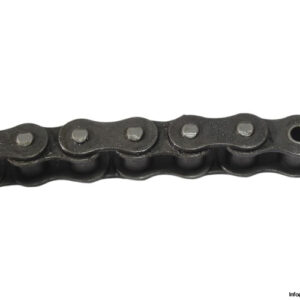

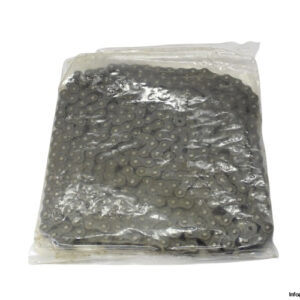

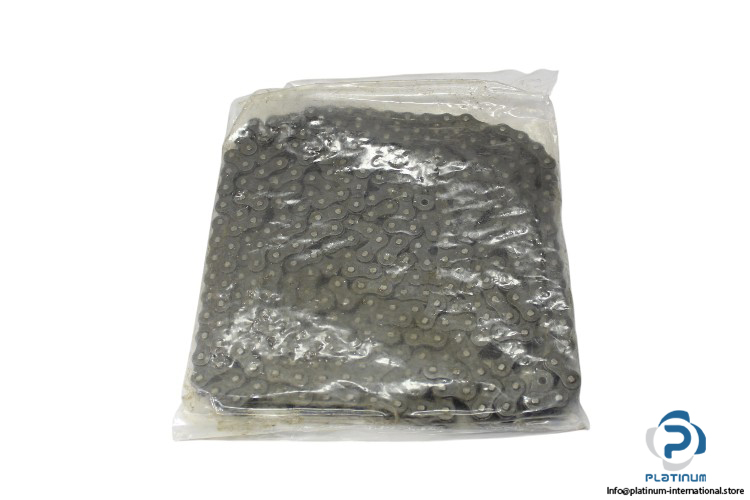

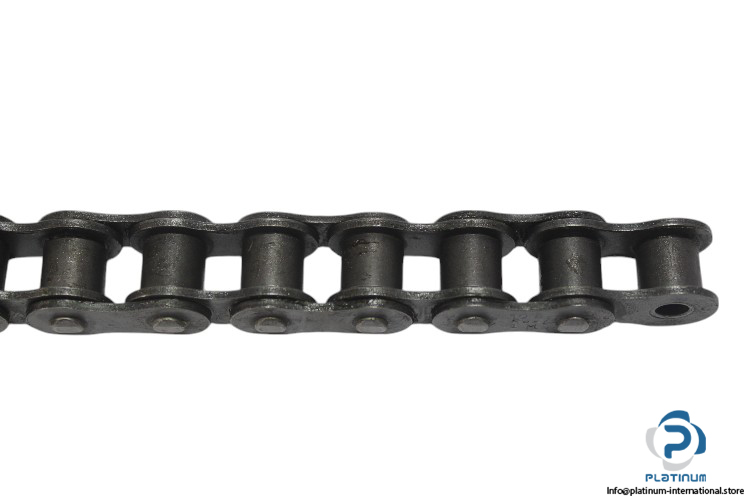

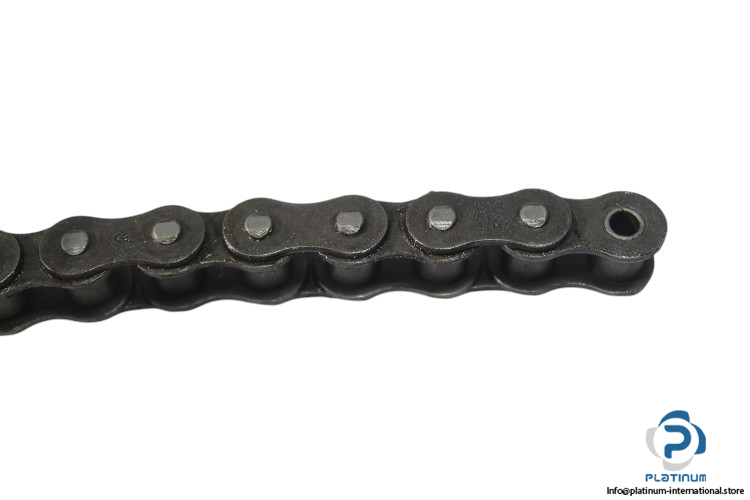

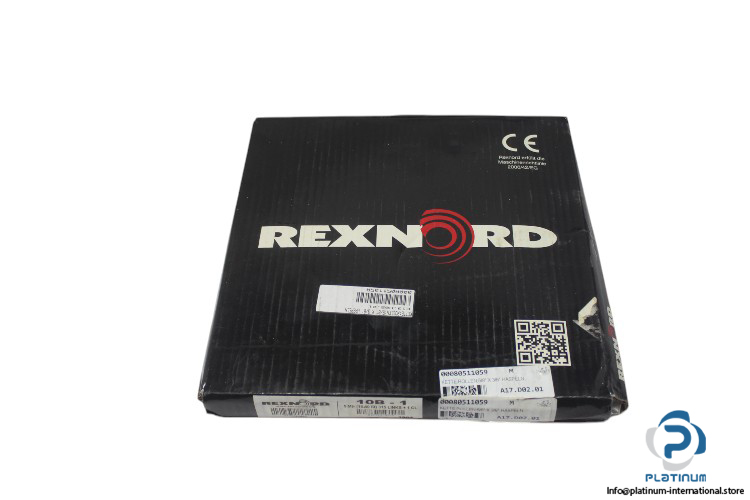

REXNORD 10B-1 Roller Chain
The REXNORD 10B-1 Roller Chain is designed for high-performance power transmission applications, providing durability, strength, and efficiency. Manufactured to DIN/ISO 606 standards, this chain ensures reliability and superior performance in industrial settings. Built with high-quality materials, it offers exceptional tensile strength and resistance to wear.
- Manufacturer: REXNORD
- Type: Roller Chain
- Model: 10B-1

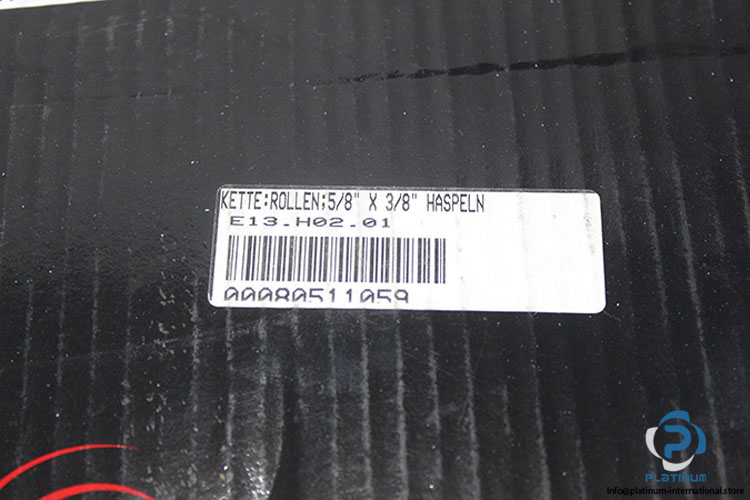

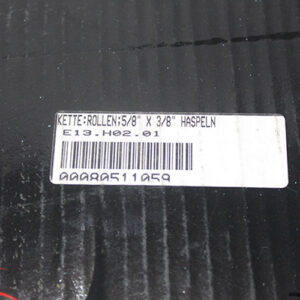

- MNR: E13-H02-01
Technical Specifications
- Standard: DIN/ISO 606
- Chain No.: 10B-1
- Pitch (P): 15.875 mm
- Roller Diameter (d1): 10.16 mm
- Width Between Inner Plates (b1): 9.65 mm
- Pin Diameter (d2 max) / Pin Length (L max): 5.08 mm / 19.50 mm
- Pin Length (Lc max): 20.9 mm
- Plate Thickness (T): 1.7 mm

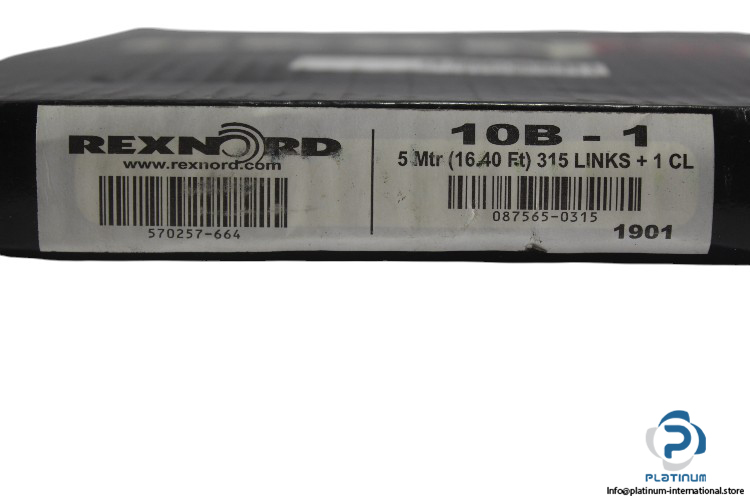

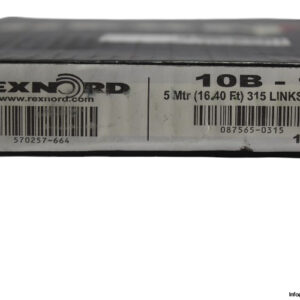

- Chain Overall Length x Links: 5 m x 315 links
- Ultimate Tensile Strength (Q min): 22.4 kN / 5091 lbf
- Average Tensile Strength (Q0): 27.5 kN
