Manufacturer: REXNORD

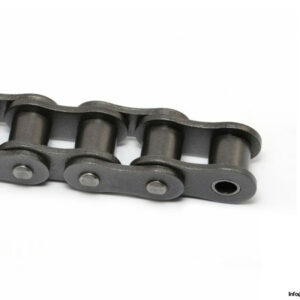

Type: Simplex Roller Chain
Model: 10B-1

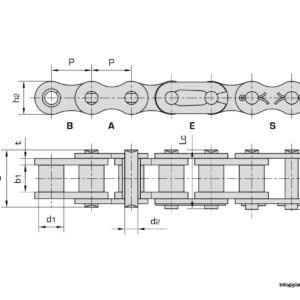

DIN/ISO 606
Chain no. 10B-1
PitchP: 15.875 mm
Roller diameter d1: 10.16 mm
Width between inner plates b1: 9.65 mm
Pin diameter d2 max/L max: 5.08/19.50 mm
Pin length Lc max: 20.9 mm
Plate thickness T: 1.7mm
Ultimate tensile strength Q min: 22.4/5091 kN/lbf
Average tensile strength Q0: 27.5 kN
Weight per meter q: 0.93 kg/m
