Manufacturer: REXNORD
Type: Duplex Metric Roller Chain
Model: 28B-2

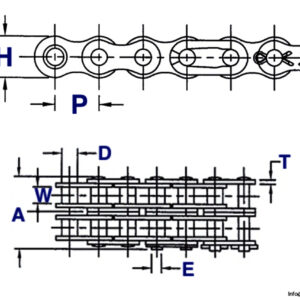

DIN/ISO 606
Chain no. 28B-2
PitchP: 44.45mm
Roller diameter D1: 27.94mm
Roller Width (W): 30.99mm
Pin Diameter E: 15.90mm
Plate Height (H): 37.0mm
Transverse Pitch (T): 59.56mm
C/L Width (A): 129.1mm
Breaking Load: 406.8 kN
Weight (Per Ft): 16.6 kg/m
