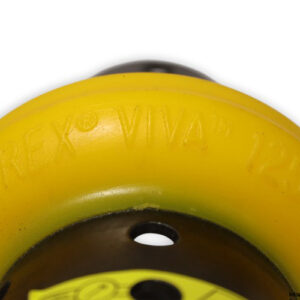

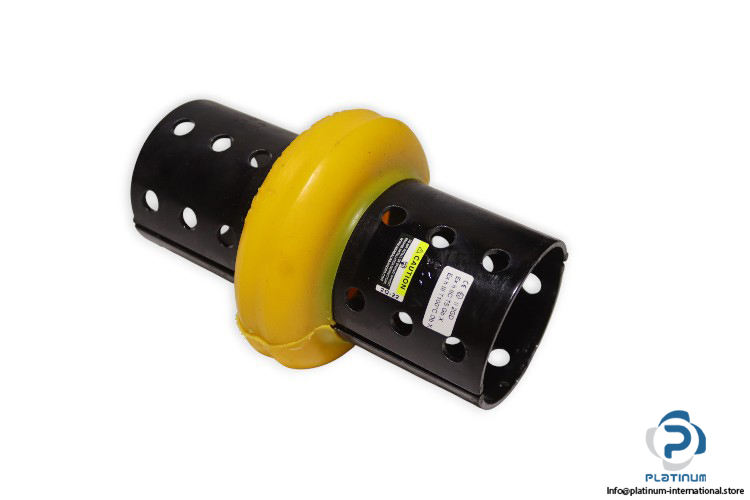

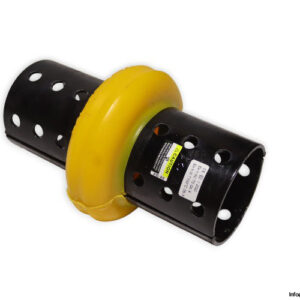

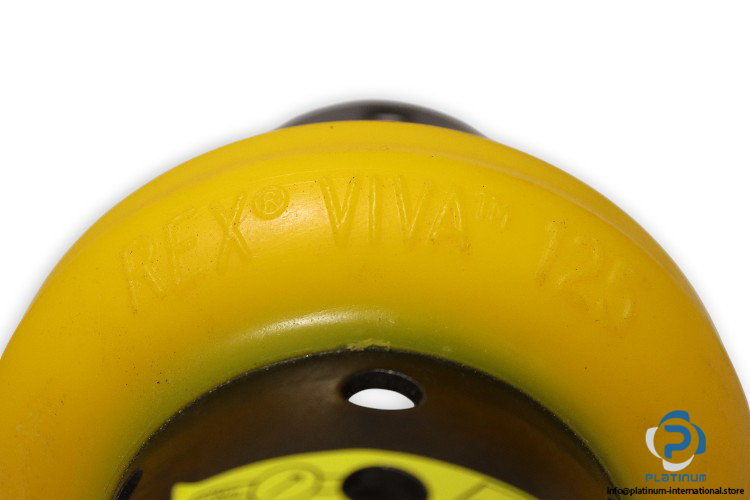

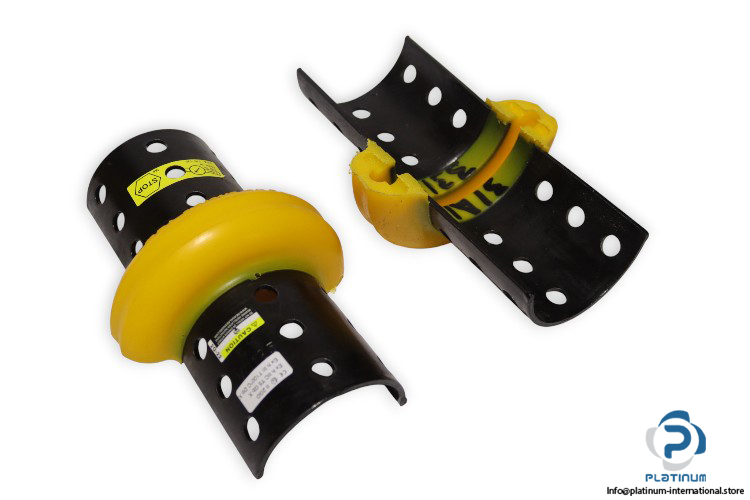

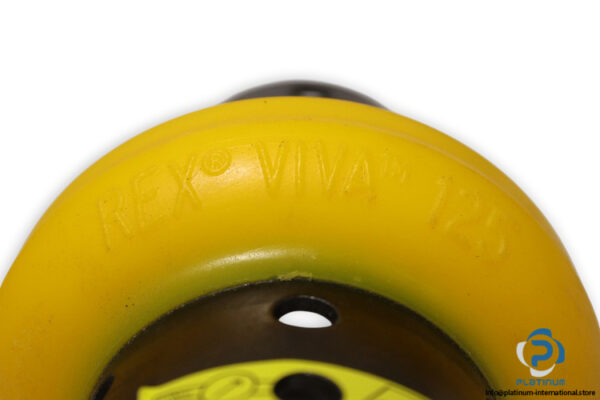

Rexnord VIVA 125 Elastomer Coupling Element
The Rexnord VIVA 125 is a high-performance elastomer coupling element engineered for precise torque transmission and reliable vibration damping in demanding industrial applications. Designed with explosion protection (EX) compliance, this coupling element ensures safe and efficient power transfer even in hazardous environments. Its flexible construction minimizes misalignment, reduces noise, and extends equipment life, making it ideal for pumps, compressors, and process machinery.
Manufacturer: Rexnord
Type: Elastomer Coupling Element
Model: VIVA 125
Series: VIVA
Technical Information
- Size: 125
- Torque: 105 Nm
- Speed: 5400 rpm

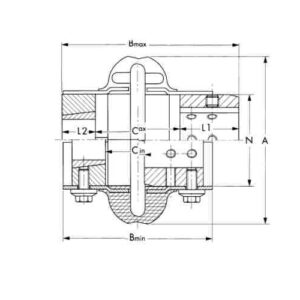

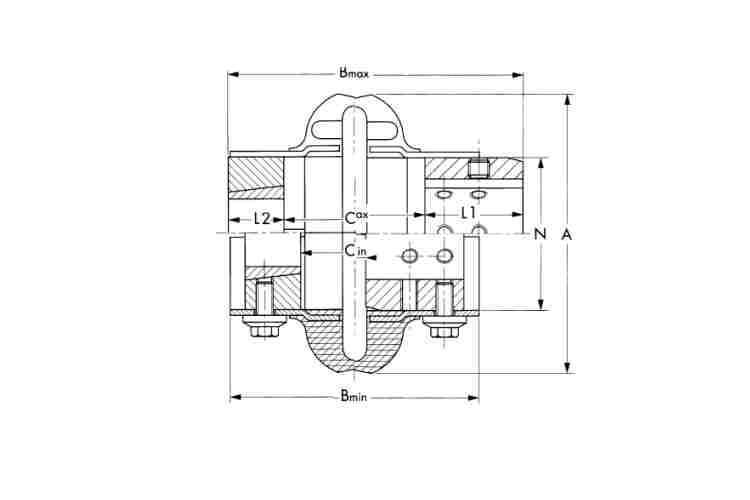

- Outer Diameter D1: 48 mm
- Outer Diameter D2: 28 mm
- J: 0,00202 kgm²
- A: 125 mm
- B: 98-132 mm
- C1: 9-55 mm
- C2: 41-55 mm
- L1: 38 mm
- L2: 22 mm
- N: 70 mm

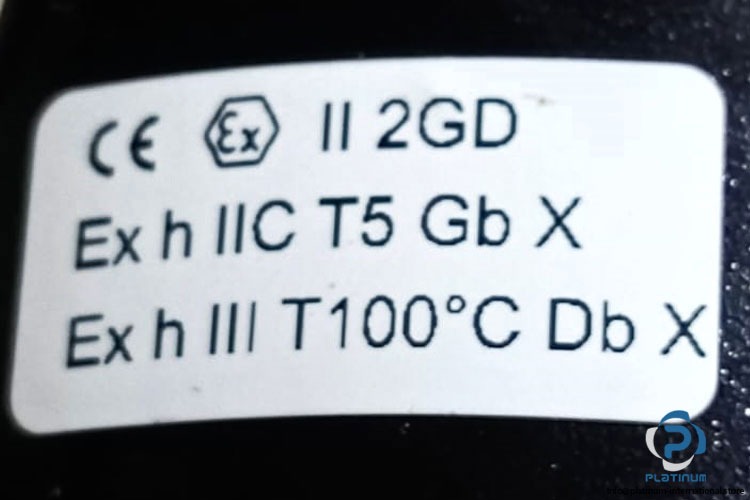

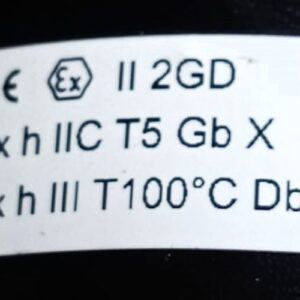

- Marking: CE II 2GD, Ex h IIC T5 Gb X, Ex h III T100°C Db X
- Explosion Protection: EX
Built with durable materials and optimized elastomer design, the VIVA 125 coupling provides excellent torsional flexibility and absorbs shocks effectively. It is a perfect solution for industries requiring precision alignment, reduced maintenance, and dependable performance under dynamic loads.
