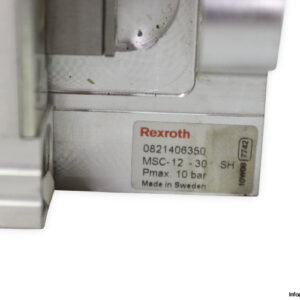

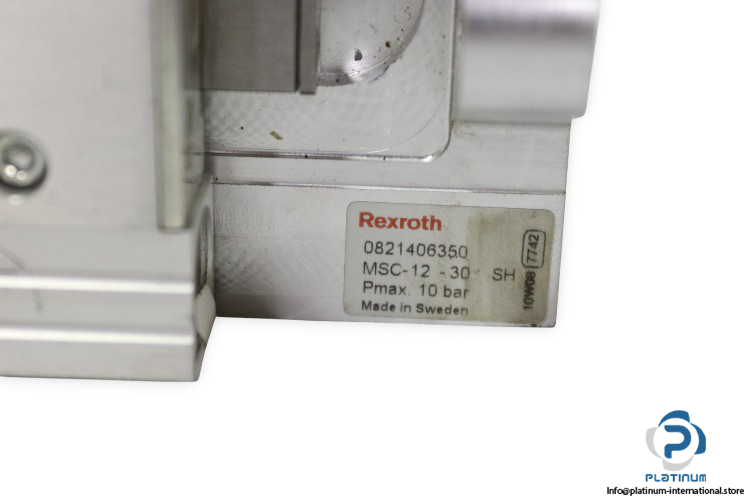

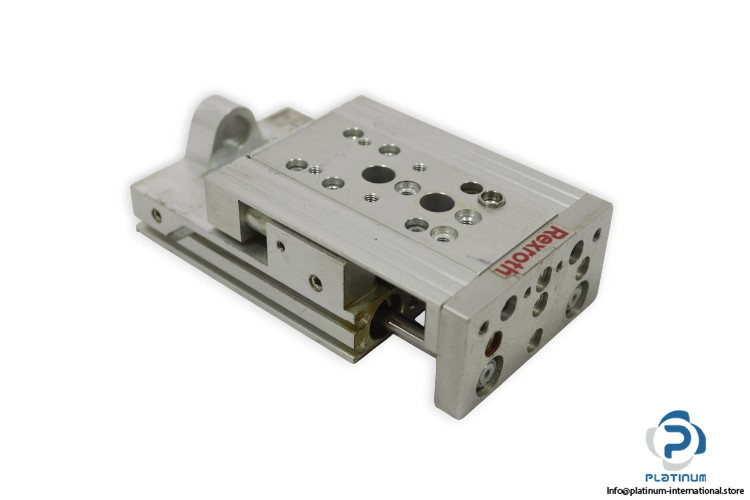

REXROTH MSC-12-30 SH Mini Slide
The REXROTH MSC-12-30 SH Mini Slide is a compact and precise linear motion component designed for high-performance pneumatic applications. With its double-acting operation and hydraulic cushioning, it ensures smooth and accurate movements for automation systems.
Manufacturer: REXROTH
Type: Mini Slide
Model: MSC-12-30 SH
MNR: 0821406350
Series: MSC
Technical Information
- Operating Mode: Double acting
- Operating Pressure: 1 to 10 bar
- Temperature Range: 0 to 60 degree Celsius
- Cushioning: Hydraulic
- Theoretical Useful Force (6 bar): 136 N
- Medium: Compressed air, lubricated or oil free
- Lubrication: Maintenance free
- Material Housing: Aluminum, anodized
- Material Slide: Aluminum, anodized
- Cylinder Diameter: 12 mm
- Stroke: 30 mm
- Port Size: 5 mm
