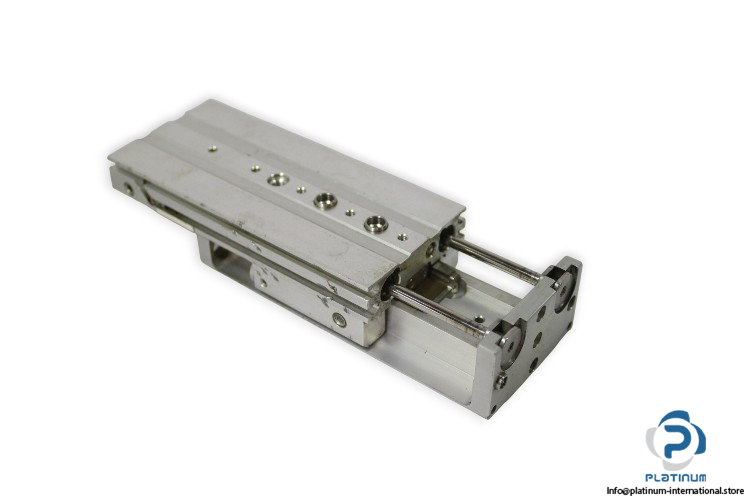

Rexroth MSC-16 SH Mini Slide Compact Cylinder

A high-precision and space-efficient compact slide cylinder engineered for demanding automation tasks. The Rexroth MSC-16 SH delivers smooth linear motion, excellent repeatability, and long service life”making it ideal for pick-and-place units, assembly lines, robotics, material handling, and precision manufacturing systems. With its rugged aluminum construction, hardened steel guide, and maintenance-free design, this cylinder ensures reliable performance even under continuous industrial use.
Manufacturer: Rexroth
Type: Mini Slide Compact Cylinder

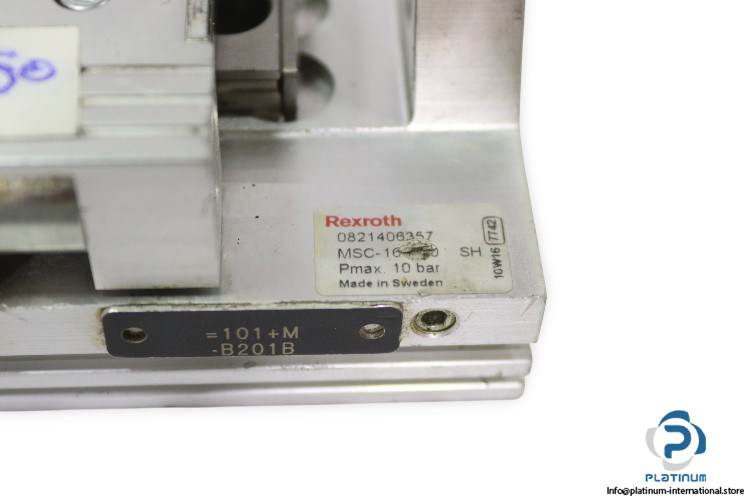

MNR: 0821406357
Model: MSC-16 SH
Code: 7742 / 10W16
Series: MSC
Terminal: 101+M-B201B

Technical Information

• Medium: Compressed air, lubricated or oil-free
• Lubrication: Maintenance-free
• Piston Diameter: 16 mm
• Stroke: 30 mm
• Operating Mode: Double-acting
• Cushioning: Elastomer / Hydraulic
• Pressure: Max. 10 bar
• Theoretical Useful Force: 241 N
• Speed: 0.8 m/s
• Connection: 5 mm
• Operating Temperature Range: 0 °C to +60 °C
• Housing Material: Aluminum (anodized)
• Slide Material: Aluminum (anodized)
• Front Plate Material: High-strength aluminum (anodized)
• Guide: Hardened steel
• Seals: NBR + PU
