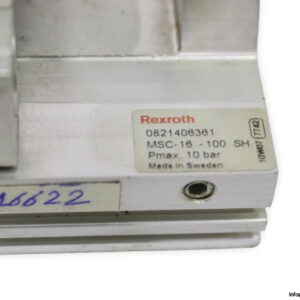

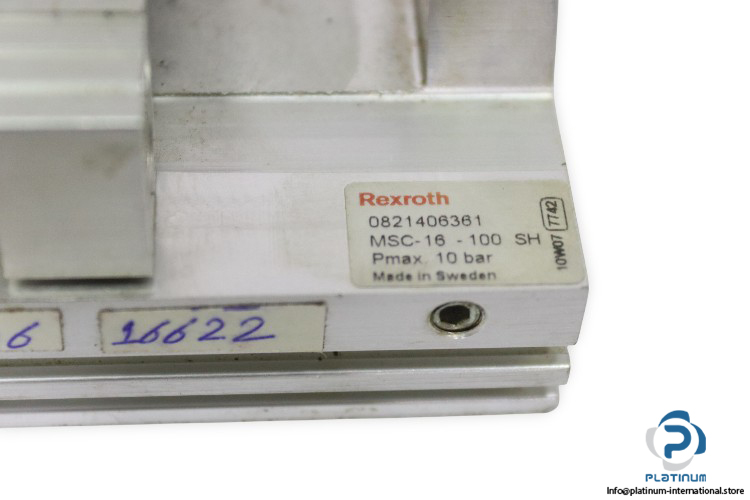

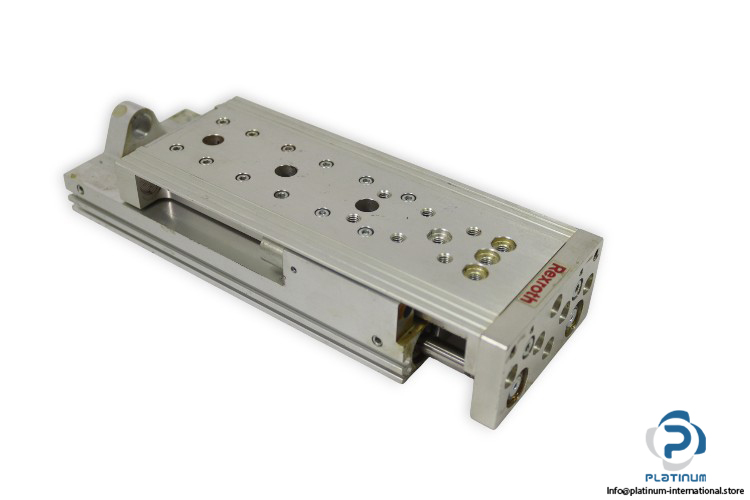

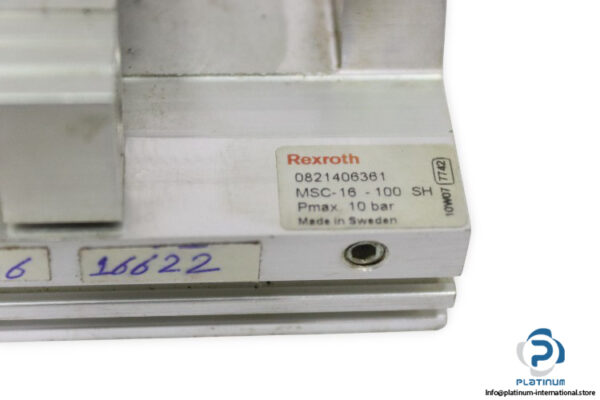

REXROTH MSC-16-100 SH Mini Slide

The REXROTH MSC-16-100 SH Mini Slide is a precision pneumatic linear actuator designed for smooth and accurate motion control in compact automation systems. With its double-acting operation, hydraulic cushioning, and anodized aluminum construction, it ensures long-lasting performance and high repeatability.

Manufacturer: REXROTH
Type: Mini Slide
Model: MSC-16-100 SH
MNR: 0 821 406 361
Series: MSC

Technical Information

• Operating Mode: Double acting
• Operating Pressure: 1 to 10 bar
• Temperature Range: 0 to 60 degree Celsius
• Cushioning: Hydraulic
• Theoretical Useful Force (6 bar): 241 N
• Medium: Compressed air, lubricated or oil free
• Lubrication: Maintenance free
• Material Housing: Aluminum anodized
• Material Slide: Aluminum anodized
• Cylinder Diameter: 16 mm
• Stroke: 100 mm
• Port Size: 5 mm
