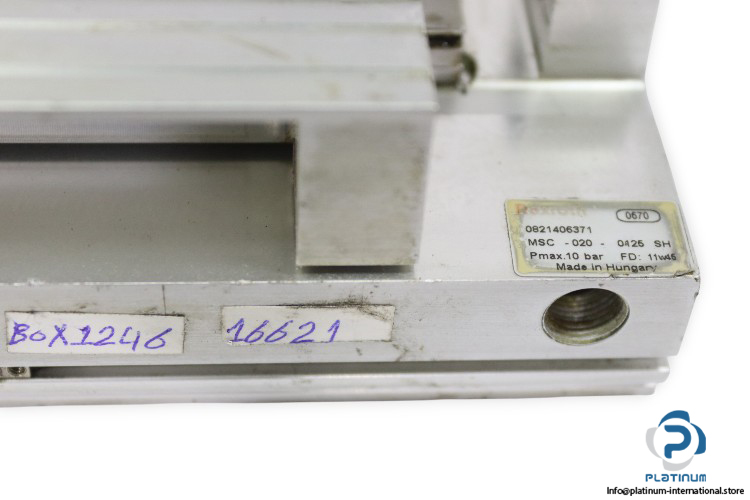

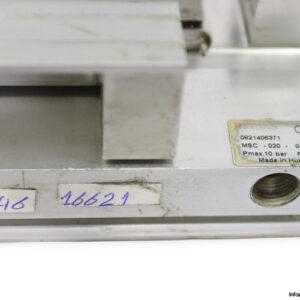

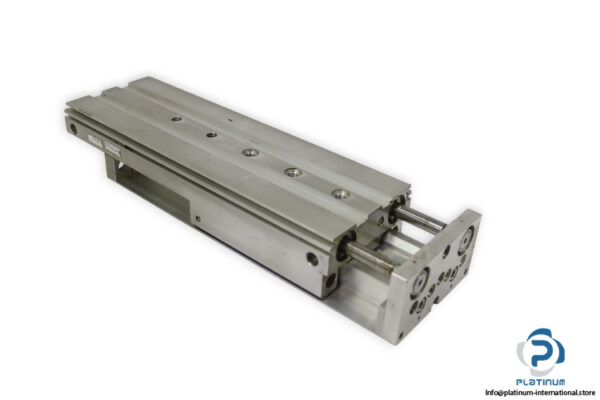

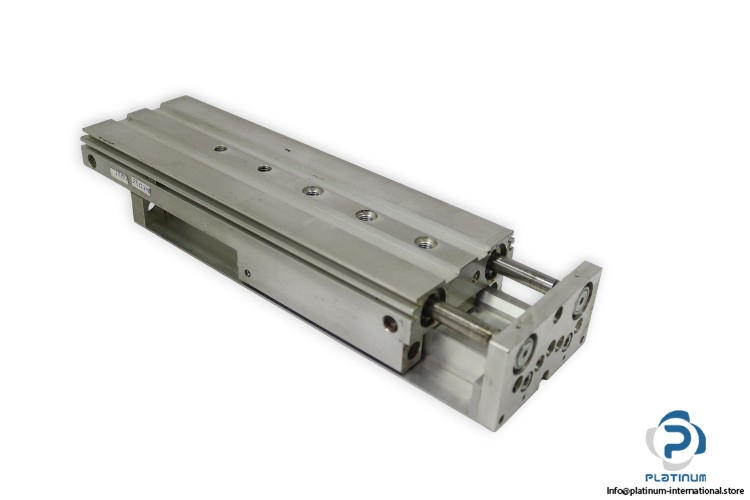

REXROTH MSC-020-0125 SH Mini Slide

The REXROTH MSC-020-0125 SH Mini Slide is a precision double-acting pneumatic actuator designed for smooth and accurate linear motion in compact automation systems. Built from anodized aluminum, it offers durable performance with maintenance-free operation and efficient air cushioning.

Manufacturer: REXROTH
Type: Mini Slide
Model: MSC-020-0125 SH
MNR: 0 821 406 371
Series: MSC
Reference Code: 11W45

Technical Information

• Operating Mode: Double acting
• Maximum Operating Pressure: 10 bar
• Temperature Range: 0 to 60 degree Celsius
• Retraction Force: 283 Newtons
• Cushioning: Hydraulic
• Medium: Compressed air, lubricated or oil free
• Lubrication: Maintenance free
• Material Housing: Aluminum anodized
• Material Slide: Aluminum anodized
• Cylinder Diameter: 20 millimeters
• Stroke: 125 millimeters
• Port Size: G1 by 8
