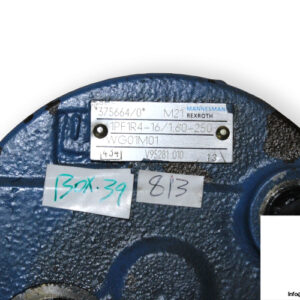

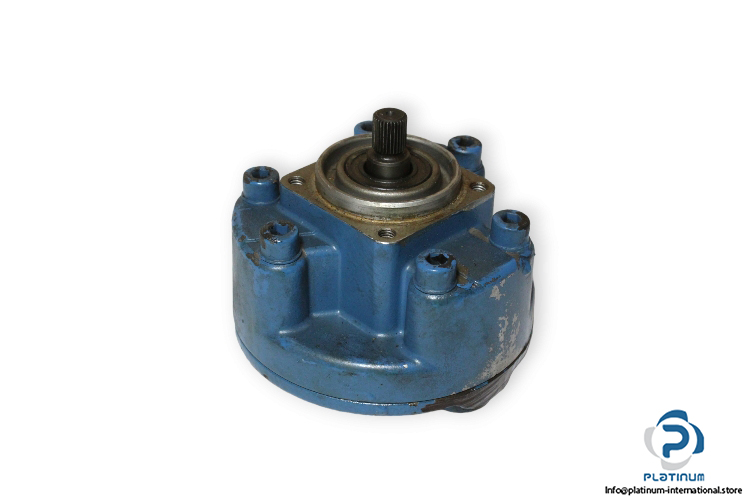

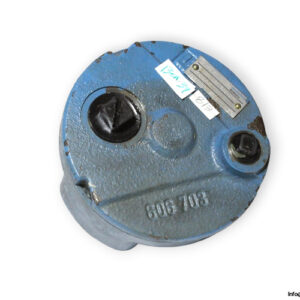

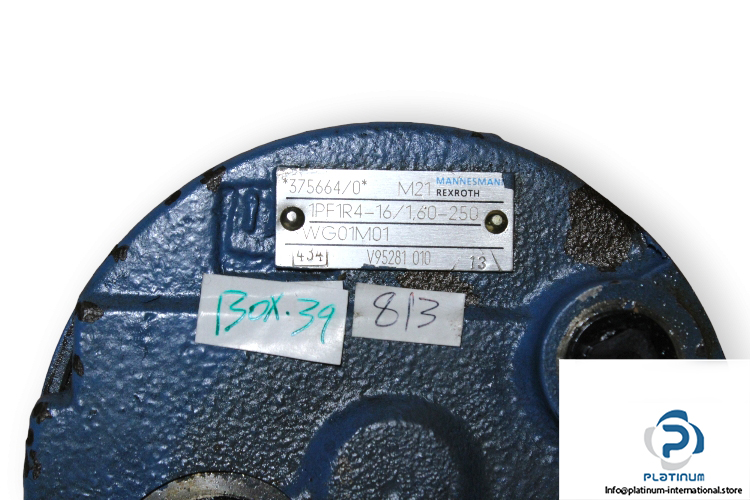

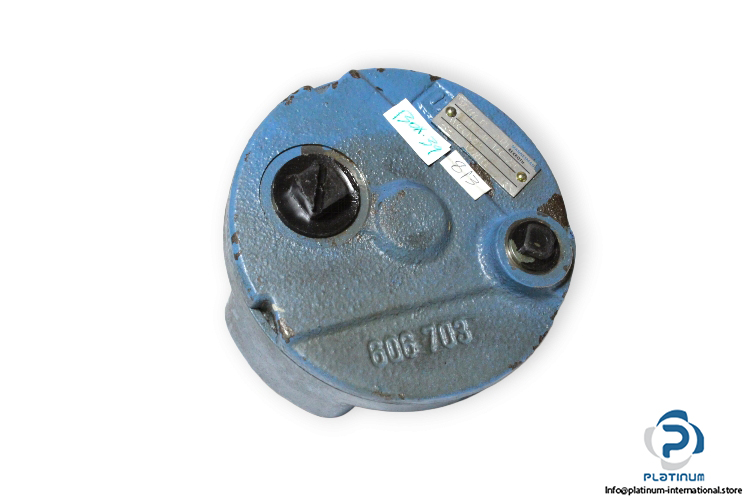

Manufacturer: BOSCH REXROTH
Type: Radial Piston Pump
Model: 1PF1R4-16/1,60-250WG01M01
MNR: R900375664

Connection diagram: 1
Displacement type: constant
Size [cm³]: 1.6
Max. pressure [bar]: 250
Max. flow [l/min]: 3.2
Type of connection: 4-bolt face mounting
Direction of rotation: Bidirectional
Shaft type: Serration 10 x 12 according to DIN 5481
Assembly : 4-bolt M8 face mounting, centering 63 mm
Hydraulic fluid: HLP
