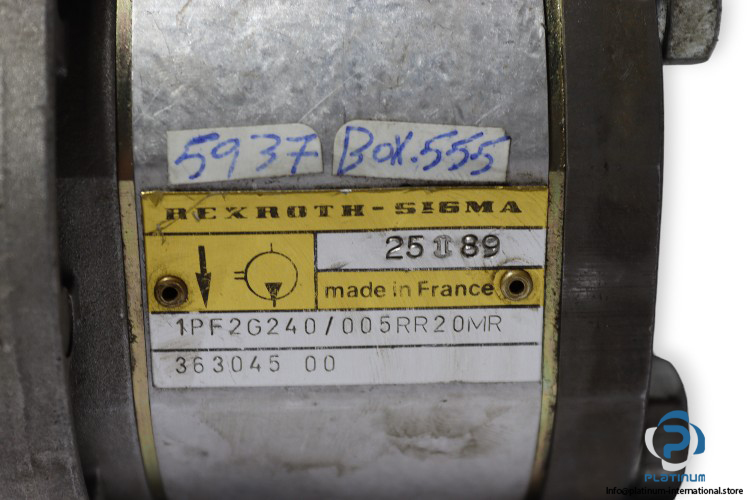

Manufacturer: REXROTH-SIGMA

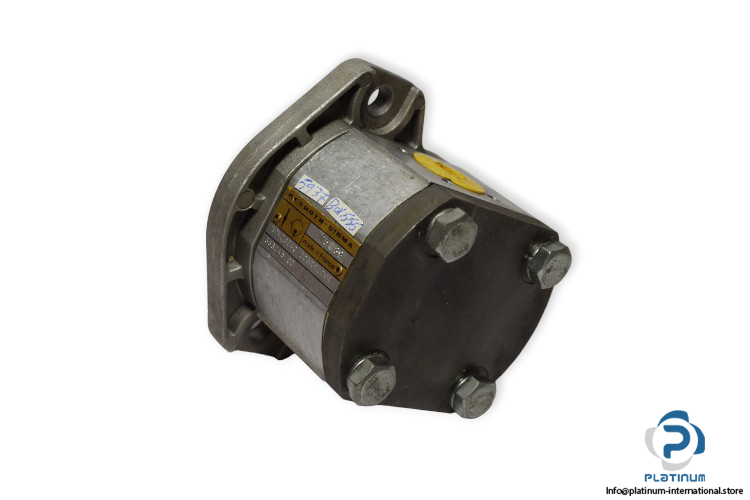

Type: External Gear Pump
Model: 1PF2G240/005RR20MR
Part No.: 363045 00
MNR: 25 89

Rotation: Clockwise
Displacement: 5.5 cm³

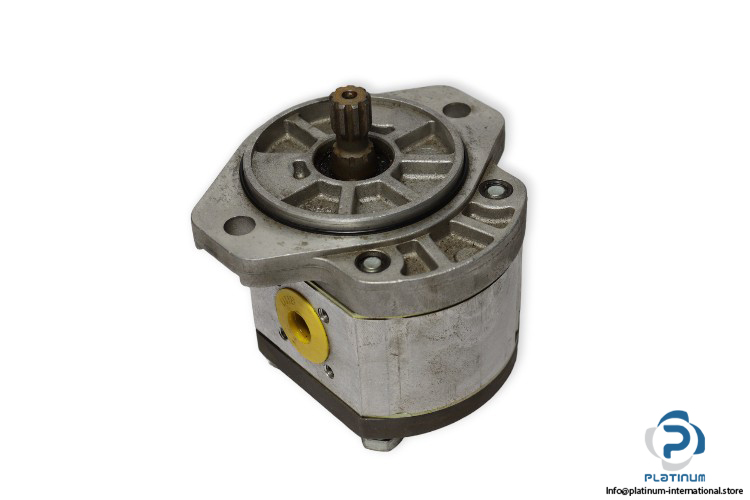

Shaft: Splined Shaft SAE-A 5/8”,9 TEETH
Flange: SAE-A-2-hole flange diameter 82.5 mm
Inlet Pressure: 0.7 …. 3 bar
Max. Continuous Pressure: 250 bar
Max. Peak Pressure: 275 bar
Max. Speed @ continuous Pressure: 4000 min^-1
Min Speed @ 180 bar: 1000 min^-1
Seals: NBR
Connection: 15 mm
Range of Fluid Temperature: -15 … 80°C
