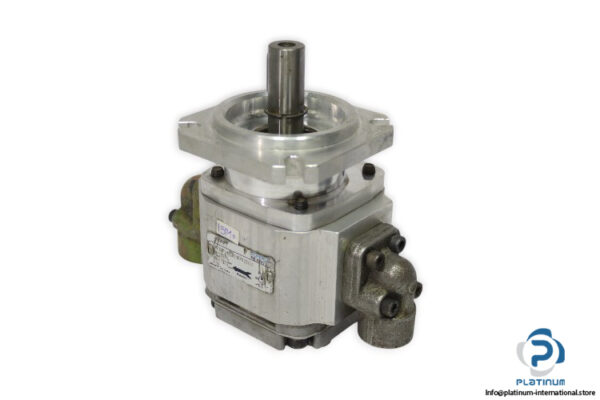

REXROTH ECKERLE 1PF2GF2-22/016RH20VE4 GEAR PUMP
The Rexroth Eckerle 1PF2GF2-22/016RH20VE4 is a high-efficiency gear pump engineered for demanding hydraulic applications. Designed with reinforced bearings and a tapered key shaft, this model ensures long-lasting performance and precision fluid handling.
Manufacturer: Rexroth Eckerle
Type: Gear Pump

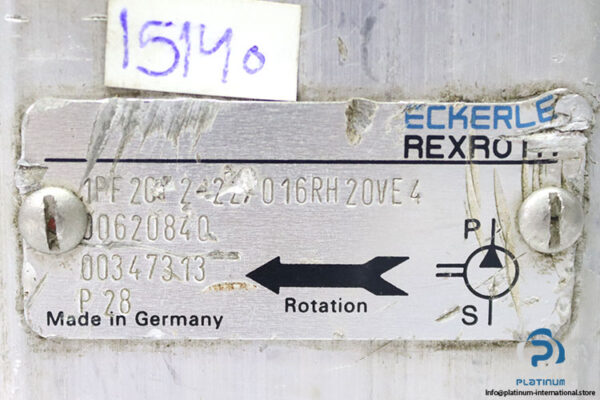

Model: 1PF2GF2-22/016RH20VE4
Part No.: 00620840 / 00347313
Code: P28
Technical Information
- Connection: ½ & ¾ inch
- Series: 2 (Reinforced bearing)
- Size: 16
- Displacement: 16 cm³/rev
- Direction of Rotation: R (Clockwise)
- Drive Shafts: H (Tapered key shaft 1:8)
- Line Ports: 20 (Rectangular flange)
