Manufacturer: Rexroth

Type: Variable vane single pump

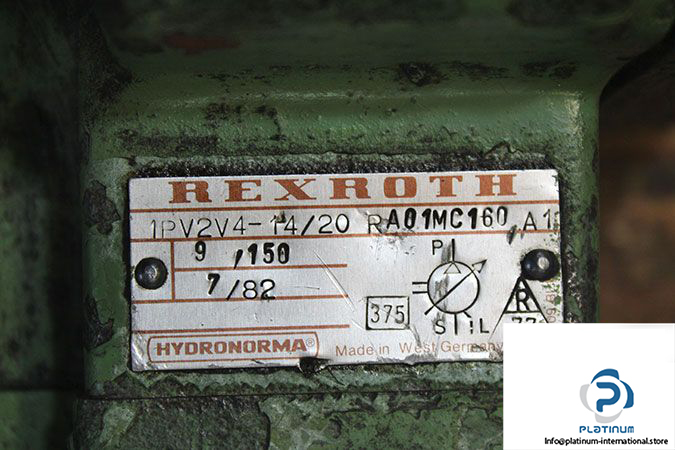

Model: 1PV2V4-14/20RA01MC160A1

size: 20

Displacement: 20.7 cm³

Direction of Rotation: Clockwise

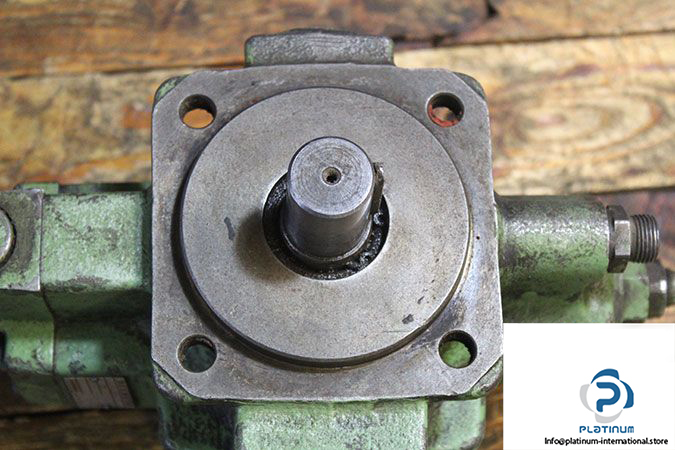

Shaft Diameter: 28 mm

Operating pressure: 160 bar

Speed Range: 900 …. 1800 rpm

Flow Rate at 1450 rpm: 29 l/m

Power at 1450 rpm: 8.5 KW

Torque at 100 bar: 228 N.m

Viscosity Range: 16 ….  160 mm²/s

Weight: 22.5 Kg
